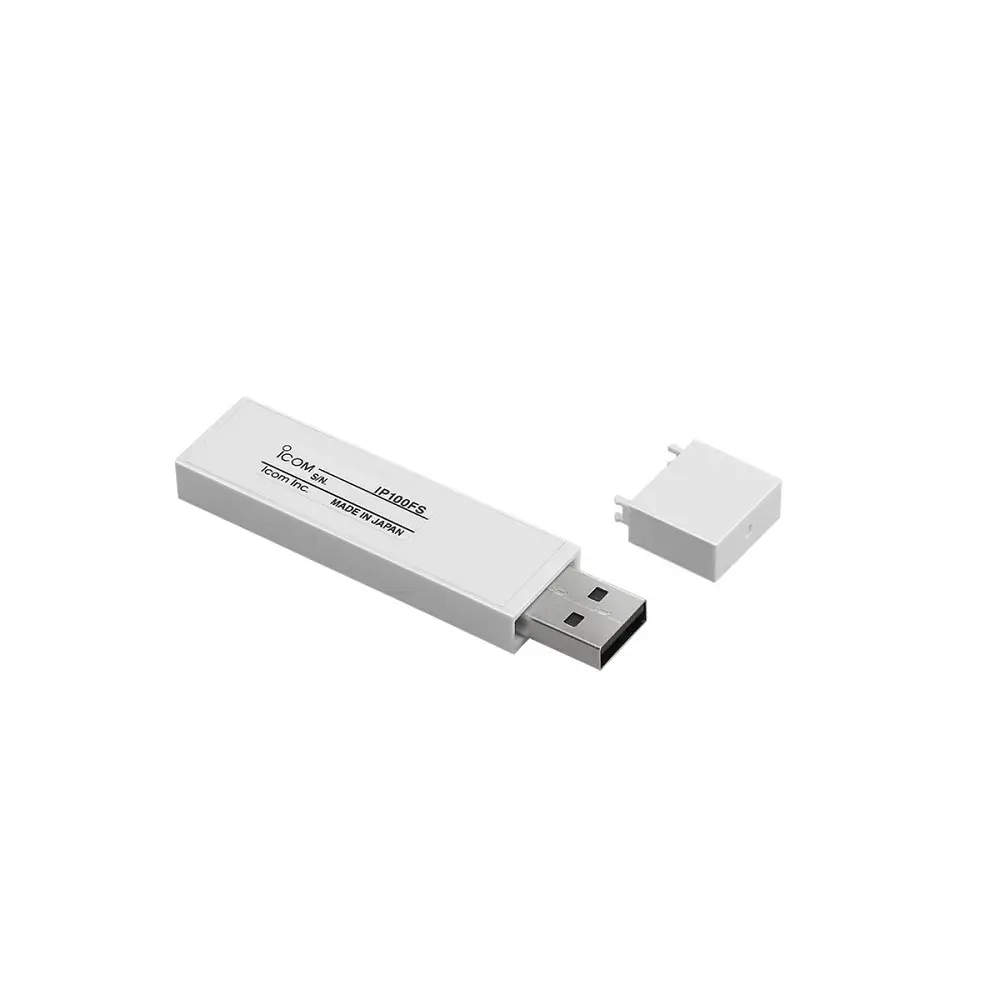

Icom IP100FS Full-Duplex Communication That Works Over a Wireless LAN and IP Network*

• Easy system to set up and use
• Up to 100 users can communicate at the same time
• Encryption provides extra security
• Range is only restricted by your IP network coverage
• No license fee required, no call charges

* Requires either HM-153LS, HM-166LS, HS-102 with OPC-2359 or HS-85 with OPC-2144 for
full-duplex operation.

Basic Functions

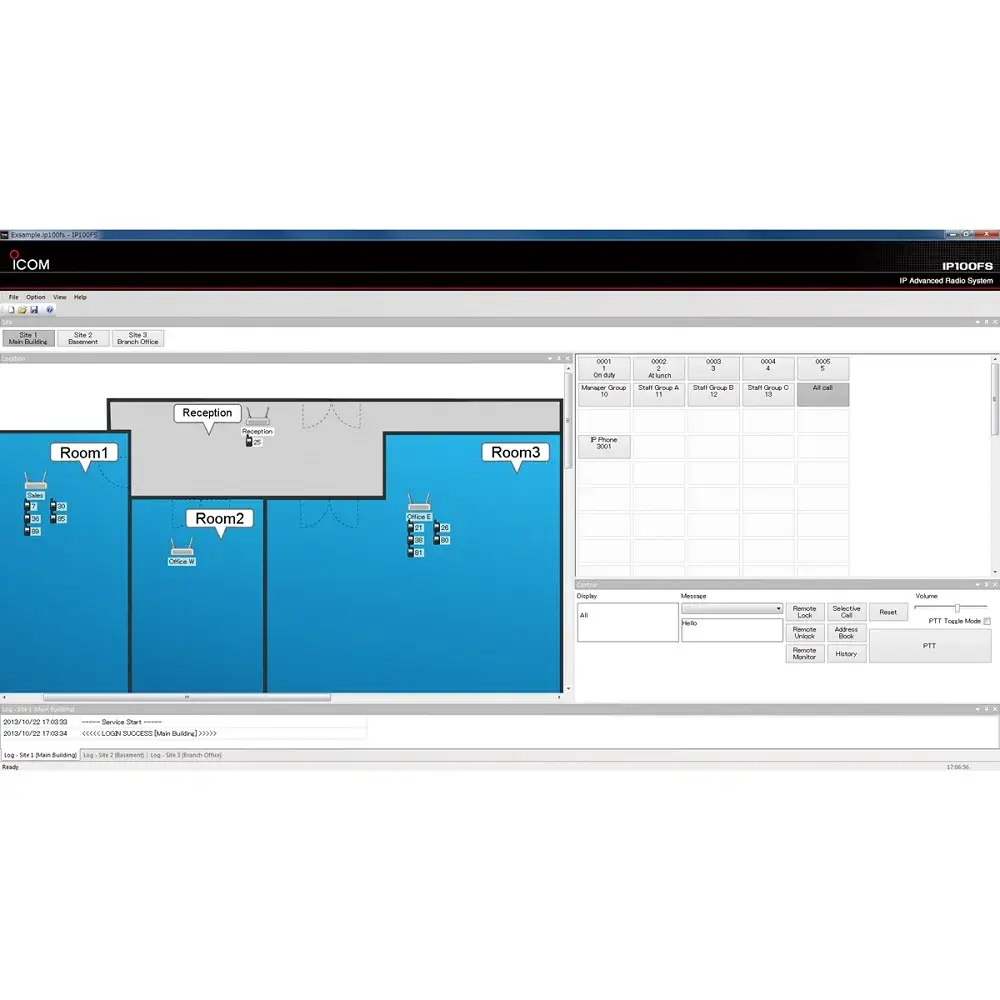

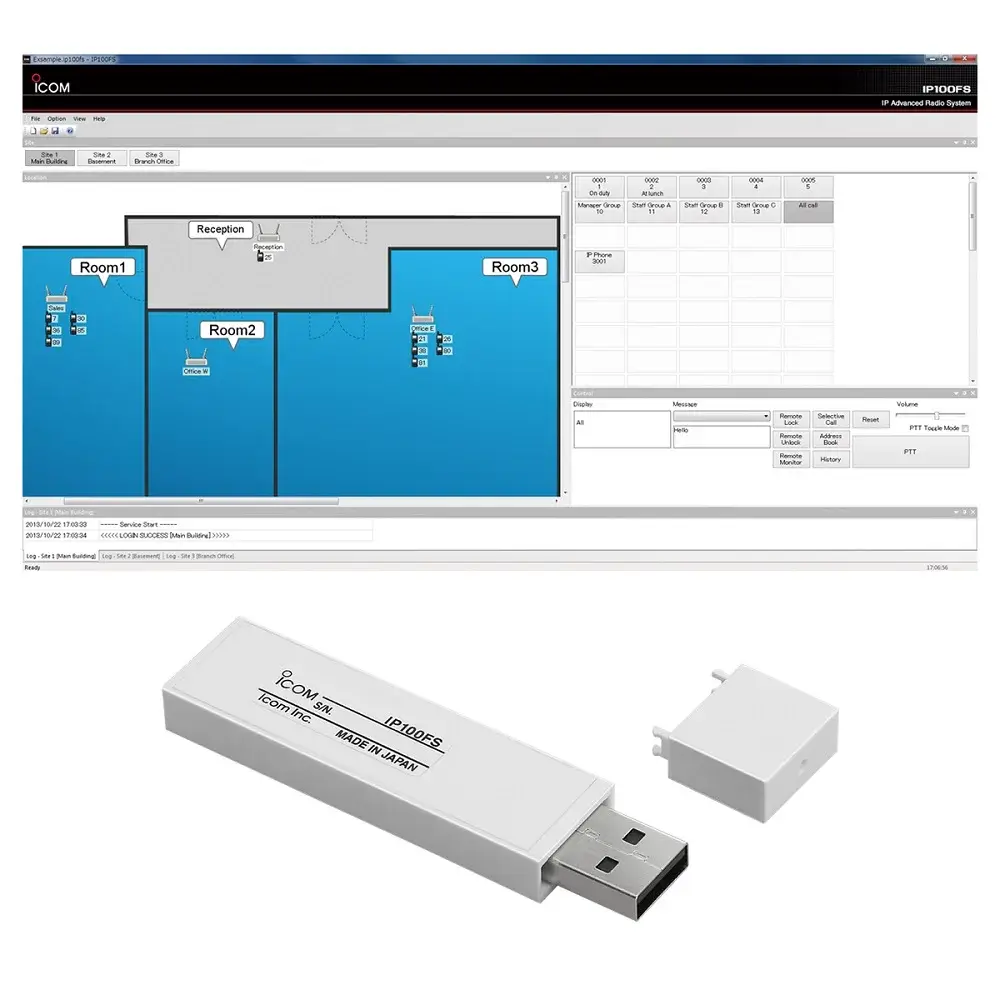

The IP100H IP communication terminal transmits voice and preprogrammed text messages to the IP1000C controller through the wireless LAN access points installed in the IP network (VPN). The controller redirects traffic to the specified terminals. The IP100FS remote communicator can create a virtual radio and simple dispatch station on a Windows® based PC. The IP100FS can obtain position information (based on using access points) and status information of each terminal.

Full-duplex Communication

With an optional earphone-microphone (HM-153LS, or HM-166LS) or headset (HS-102 with OPC-2359 or HS-85 with OPC-2144), the IP100H can talk and receive at the same time. All users in the system can communicate simultaneously.

Calling Features

The IP100H/IP100FS can make Individual calls, Group conference calls, All calls and Area calls. The unique Area call function allows you to call any user who is accessing the specified access point.

Mixing Function

The mixing function receives multiple user’s voices at the same time. One-to-many communication is possible and the efficiency of information sharing increases.

Seamless Roaming

If two or more wireless access points are deployed over an IP network, the IP100H can access the nearest access point and can roam between access points.

Status and Short Data Messaging

The IP100H/IP100FS can send status and short data messages* to other users.

* The IP100H can send only preprogrammed messages.

Scalable System

Deploying wireless access points over an IP network can expand the communication range. Dispersed sites can also be connected over an IP network (VPN). Range is only restricted by your IP network coverage.

High Security

The wireless LAN security protocols (WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)) encrypt your private conversations.

License-Free

Licensing and applications are not required for installation. IEEE 802.11 a/b/g/n standards are used.

Easy Maintenance

The IP1000C programs almost all terminal configurations over the air. Individual PC programming via cable connection is not required.

IP Phone and Transceiver Interconnection

With a VE-PG3 RoIP gateway, the IP advanced radio system can interconnect with an IP phone, IDAS™ NXDN™ *1, IDAS™ dPMR™ Mode 2 digital and analogue transceivers.
When used with an IP phone system, the IP100H can be used as a phone handset for making internal or external calls.*2

*1	NXDN™ Type-D multi-site trunking and conventional system using the IC-FR5000/FR5200H series.
*2	For interconnection with other equipment, verification tests are required before the installation. The IP100H can call a preprogrammed phone number only. (Cannot manually enter phone numbers to make a call.)

Interconnection image

The IP communication terminals, radios and telephones can communicate with each other within the doughnut shaped blue ring.

Supplied accessories

• IP100H
  • Batteray BP-271 Li-Ion 1200 mAh
  • Belt Clip MB-127 Alligator Type
  • Hand strap
  • Antenna
  • Antenna cap

• IP1000C
  • BC-207S AC adapter
  • Cushion sheets
  • Ferrite core
