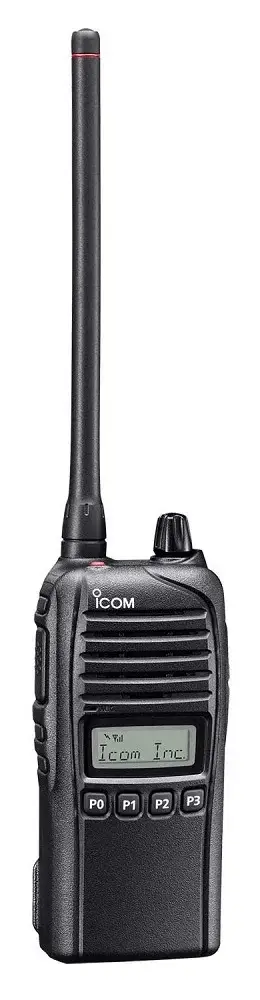

Icom IC-F3230D IDAS™ Multi-site Trunking Radio with Superior Waterproof Protection

IDAS™ digital mode operation

The IC-F3230D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.

IP67 waterproof and dust-tight protection

The IC-F3230D series provides outstanding protection against water and dust equivalent to IP67. The IC-F3230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.

Easy to hear in noisy areas

The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.

* Typical with internal speaker

Channel announcement

When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

8-character LCD

An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller’s name, received message, etc.

Roaming scan

In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.

IDAS™ digital mode features

• Up to 500 individual and up to 500 group ID aliases
  (Each for single-site/multi-site/conventional)
• PTT ID and ANI
• SDM (Short Data Message)
• Status
• RAN (Radio Access Number)
• Radio check (RX)
• Stun/kill/revive (RX)
• Call alert
• Remote monitor (RX)
• Emergency
• Digital voice scrambler
• ATB (All Trunks Busy) ring back

* TX: Transmit, RX: Receive

Other features Icom IC-F3230D

• CTCSS/DTCS encoder/decoder*
• Up to 128 memory channel with 8 zones
• Optional HM-168LWP, waterproof speaker-mic
• Low battery alert
• 2-step power save
• Voting scan
• Time out timer
• Talk around function
• Lone worker function
• Surveillance function
• Forced narrow function*

* Analog mode only
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)

Specification Icom IC-F3230D

General

Transmitter

Receiver

Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Measurements made in accordance with EIA/TIA-603.
All stated specifications are subject to change without notice or obligation.

Supplied Accessories Icom IC-F3230D

• Battery pack, BP-232WP
• Belt clip, MB-94R
• Antenna, FA-SC25V
• Desktop charger, BC-160*
• AC adapter, BC-123SE*

* May differ or not supplied according to version

Optional Accessories Icom IC-F3230D

• Baterai
  • BP-240 (Baterai Case LR03 (AAA) ×6 cells)
  • BP-261 (Baterai Case LR6 (AA) ×6 cells LR6 (AA) ×6 cells) (DISCONTINUED)
• Charger Baterai
  • Single Desktop Charger BC-171 (Discontinued), AC Adapter BC-147SE
  • Multi Charger BC-197 (Discontinued), Power Adapter BC-157S
• DC Power Cable
  • Travel Charger CP-23L (12 V DC Use with BC-160)
  • Power Cable OPC-515L (Use with BC-160)
  • Power Cable OPC-656 (Discontinued) (Use with BC-197)
• Microphone
  • HM-168LWP, HM-158LA, HM-159LA, HM-222HLWP
• Belt Clip
  • MB-93 (Swivel Type)
• Antena
  • Flexible Antena
    • FA-SC55V, VHF 150–174 MHz
  • Stubby Antena
    • FA-SC26VS, VHF 136−144 MHz
    • FA-SC27VS, VHF 142−150 MHz
    • FA-SC56VS, VHF 150−162 MHz
    • FA-SC57VS, VHF 160−174 MHz
  • High Gain Antena
    • FA-SC62V, VHF 150−160 MHz
    • FA-SC63V, VHF 155−165 MHz
  • Cut-Type Antena
    • FA-SC61VC, VHF 136−174 MHz
