Icom IC-F1000

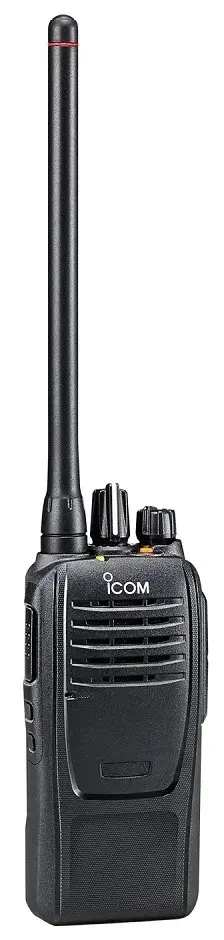

Icom IC-F1000 Tahan Air Non Keypad

Icom IC-F1000 Non Keypad dirancang tahan air dan simpel sehingga handy talky ini mudah digunakan pada segala kondisi.

Icom IC-F1000S punya Sensor Gerak

Dengan built -in sensor gerak, Icom IC-F1000 terdeteksi posisi, keadaan gerak dan non – gerak dan dapat mengirim sinyal darurat . Fungsi gerak dapat mendeteksi jika transceiver bergerak atau gemetar , misalnya, selama pengejaran

Kejernihan Audio Icom IC-F1000

Icom IC-F1000 dengan speaker 36mm memberikan audio yang sangat jernih 800 mW * Built -in amplifier BTL memberikan suara kuat sehingga dapat dengan mudah dipahami oleh pemegang radio ini walaupun dilingkungan yang sangat berisik

* Khas dengan speaker internal

Icom IC-F1000 dengan Voice Scrambler

Built -in pengacak suara inversi menyediakan percakapan aman . Sampai dengan 16 kode yang dipilih .
14 Jam beroperasi dan Battery Waterproof / tahan air

Dibuat  dari bahan Li – Ion Battery , BP – 279 ( 7.2V DC , 1485mAh ) , menyediakan 14 jam * waktu operasi .
* Tx : Rx : Standby = 5:5:90 . Fungsi Hemat daya ON .
Tenang Stand- by dan Lebih

Icom IC – F1000 memiliki built-in 2 – Tone , 5 – Tone , CTCSS dan DTC sinyal kemampuan untuk komunikasi kelompok dan panggilan selektif ..
MDC 1200 Kompatibel

Fitur MDC berikut diprogram.

PTT ID
Darurat ( ada transmisi ACK )
Radio cek ( RX only)
Stun / Bangkit ( RX only)
Mengirimkan pesan status ( tipe LCD saja)
100 alias tabel ( tipe LCD saja)

Ketika Anda memutar kenop channel , radio membunyikan channel .
Nyaman untuk membuat penyesuaian radio tanpa harus melihat radio .
Fitur Lain

8 DTMF kenangan autodial
BIIS PTT ID dan panggilan darurat
” Tombol Shift ” fungsi meningkatkan jumlah tugas kunci yang dapat diprogram
fungsi Surveillance
meningkatnya alarm

Spesifikasi Icom IC-F1000

			IC-F1000
Frequency coverage (Varies according to version)		USA	VHF 136–174 MHz
		EXP
Number of channels		IC-F1000	16 channels
Type of emission			16K0F3E*/11K0F3E
Channel spacing			12.5/25kHz
Power supply requirement			7.5V DC nominal
Current drain	Tx High		1.3A
	Rx	Stand-by	77mA	80mA
		Max. audio (Internal SP)	330mA	300mA
Antenna impedance			50Ω
Operating temperature range (Radio specification)			–30°C to +60°C; –22°F to +140°F
Dimensions (projections not included; W×H×D)			52.2×111.8×24.5mm 2.06×4.4×0.96 in (With BP-279)
Weight (approx.)			240g 8.47oz (With BP-279)

Transmitter

		IC-F1000
RF output power		5W, 2W, 1W (Hi, L2, L1)
Max. frequency deviation (W/N)		± 5.0kHz/±2.5kHz
Spurious emissions		70dB min.
Frequency stability		±2.5ppm
Audio harmonic distortion (W/N)		.0%/1.5% typ. (AF 1kHz 40% deviation)
FM Hum and Noise (W/N)		46/40dB typ.
Ext. microphone connector		3-conductor 2.5 (d) mm (1/10ʺ)/2.2kΩ

Receiver

		IC-F1000
Sensitivity (at 12dB SINAD)		0.25μV typ.
Adjacent channel selectivity (W/N)		76/53dB typ.
Spurious response rejection		70dB min.
Intermodulation rejection		74dB typ.	.
Hum and noise (W/N)		51/45dB typ.
AF output power (at 5% distortion)	Internal SP	800mW typ.(With 12Ω load)
	External SP	400mW typ.(With 8Ω load)
Ext. speaker connector		2-conductor 3.5 (d) mm (1⁄8ʺ)/8Ω

Measurements made in accordance with TIA-603 (USA/EXP).
All stated specifications are subject to change without notice or obligation.

Function Comparison And Internal Unit Options

		IC-F1000
Number of option slots		–
CTCSS/ DTCS	encoder	Available
	decoder	Available
2-Tone	encoder	Available
	decoder	Available
5-Tone	encoder	Available
	decoder	Available
DTMF autodial		Available
DTMF decoder		–
Voice Scrambler	Inversion	Available
	Non-rolling	–
	Rolling	–
APCO P25 digital		–
6.25kHz digital		–
MDC 1200		Available (Limited functions)
Motion function		Available
Lone worker function		Available
Man down function		Available
Intrinsically safe		–
Voice announcement		Available
Audio compander		Available
GPS receiver		–

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G Method, Proc.
Low Pressure Storage	500.5 I
Low Pressure Operation	500.5 II
High Temperature Storage	501.5 I
High Temperature Operation	501.5 II
Low Temperature Storage	502.5 I
Low Temperature Operation	502.5 II
Temperature Shock	503.5 I-C
Solar Radiation	505.5 I
Rain Blowing	506.5 I
Rain Drip	506.5 III
Humidity Induced	507.5 II
Salt Fog	509.5
Dust Blowing	510.5 I
Immersion	512.5 I
Vibration	514.6 I
Shock Functional	516.6 I
Shock Transit Drop	516.6 IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Ingress Protection Standard IC-F1000
Dust & Water	IP67 (Dust-tight and waterproof protection)

Aksesoris Standar Icom IC-F1000

• Baterai Icom BP-278, 1190 mAh, Li-ion
• Desktop Charger Baterai Icom BC-213
• Adaptor Charger Icom BC-123SE
• Belt Clip Icom MB-133 (Alligator belt clip)
• Antena Icom FA-SC25V VHF 136–150 MHz

Aksesoris Opsional Icom IC-F1000

Baterai

• Icom BP-279, 1570 mAh, Li-ion
• Icom BP-280, 2400 mAh, Li-ion

Charger Baterai

• Charger Baterai Icom BC-214N (Multi-charger, Charges up to six radios)
• Adaptor Charger Icom BC-157S (Multi Charger BC-214N)

Microphone

• Icom HM-222HLWP (High-power audio speaker microphone)
• Icom HM-168LWP (Waterproof speaker microphone)
• Icom HM-158LA (Compact speaker microphone)
• Icom HM-159LA (Speaker microphone)

Power Supply Cable

• Icom CP-23L (Vehicle charger cable for use with the BC-213)
• Icom OPC-656 (DC power cable for use with the BC-214N)

Antena

Flexible Antena

• Icom FA-SC28V VHF 148–162 MHz
• Icom FA-SC29V VHF 160–174 MHz
• Icom FA-SC55V VHF 150–174 MHz

Stubby Antena

• Icom FA-SC26VS VHF 136–144 MHz
• Icom FA-SC27VS VHF 142–150 MHz
• Icom FA-SC56VS VHF 150–162 MHz
• Icom FA-SC57VS VHF 160–174 MHz

High Gain Antena

• Icom FA-SC62V, VHF 150–160 MHz
• Icom FA-SC63V VHF 155–165 MHz

Cut-Type Antena

• Icom FA-SC61VC VHF 136–174 MHz
