Fitur Icom IC-7100

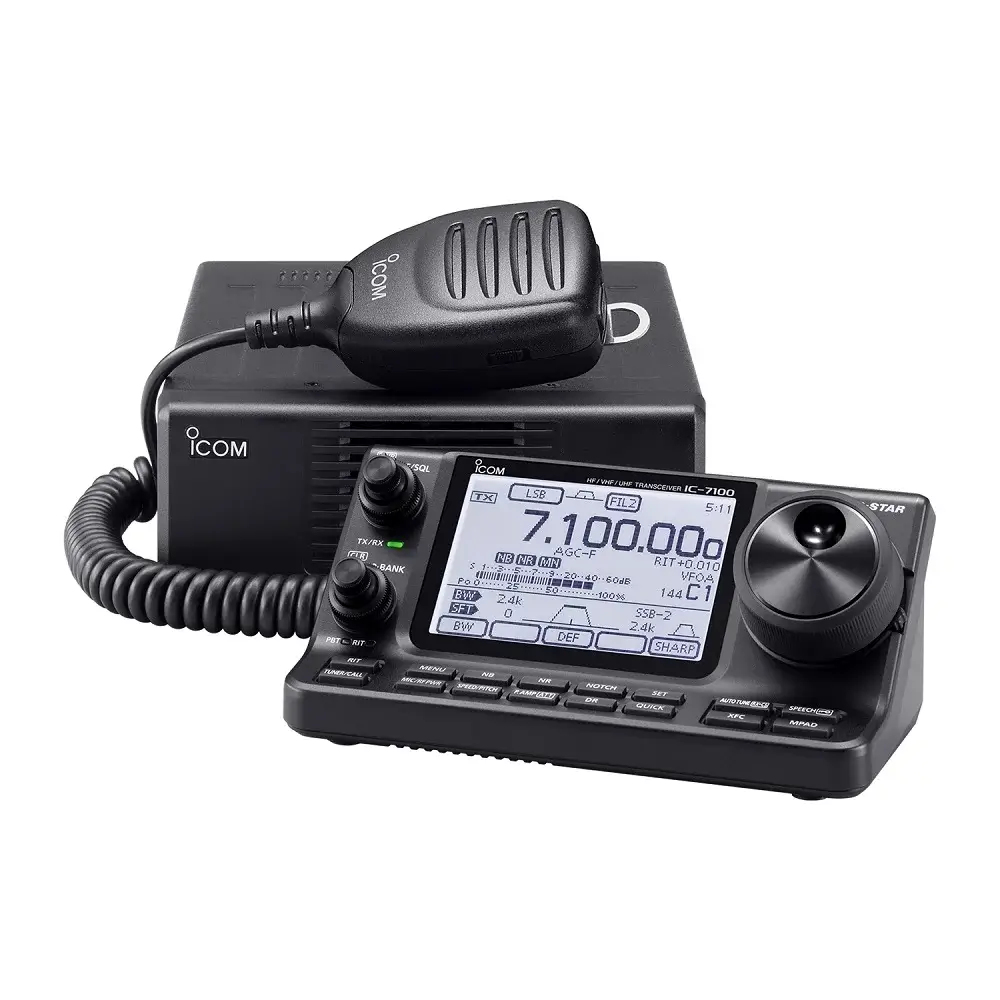

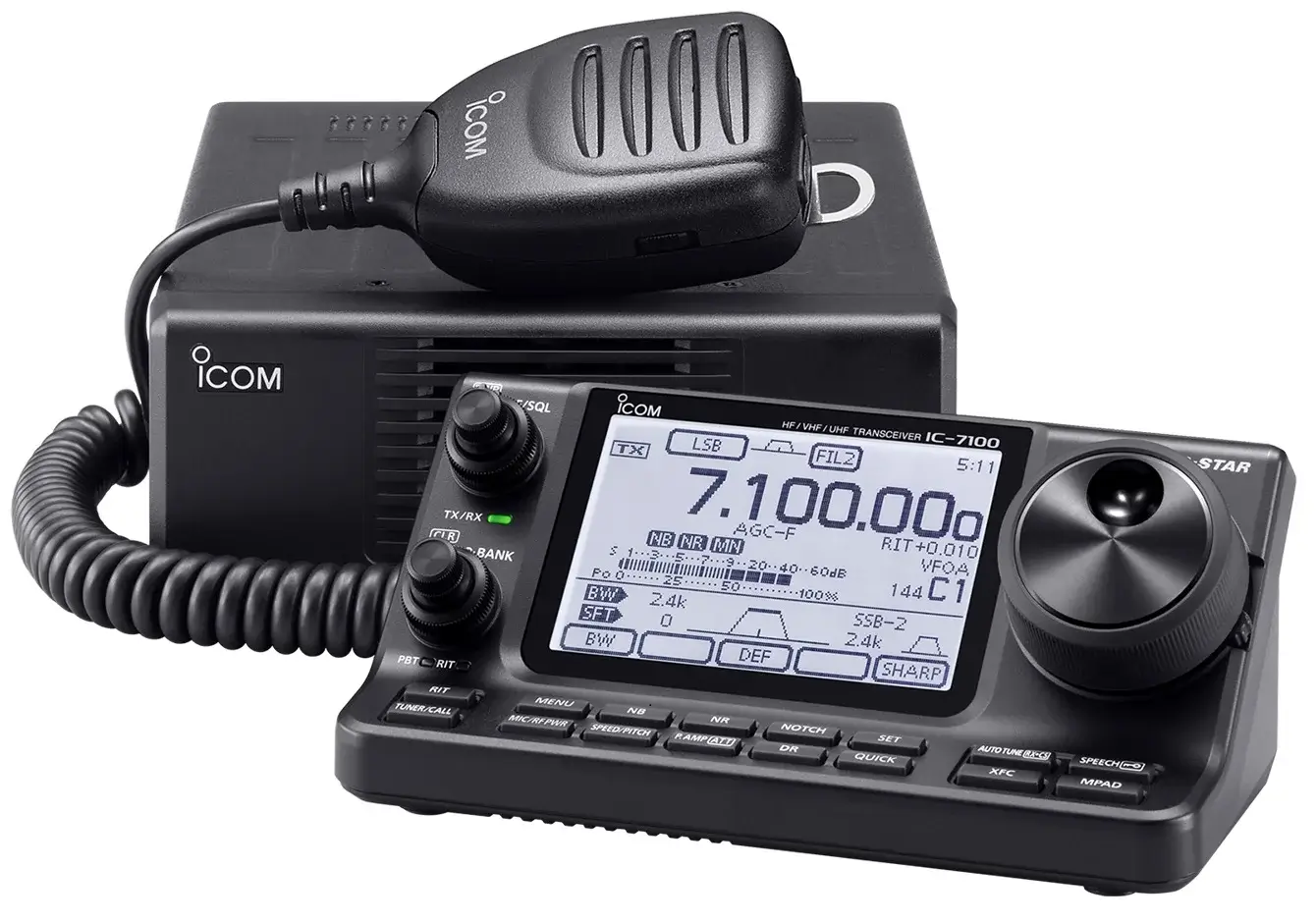

Icom IC-7100 Sebuah radio amatir pertama dengan layar radio kontrol fitur yang besar , multi-fungsi, ” layar sentuh ” ‘display LCD DOT – Matrix yang diposisikan untuk tampilan yang mudah dan operasi. Ini merupakan fitur penting sebagai pengendali tampilan tidak hanya memberikan informasi, tetapi Portal control untuk pengaturan fitur IC-7100 dan menu.
IC-7100 Pengendalian Portal
Melanggar konsep bahwa panel radio harus rata , kepala kontrol IC-7100 ini dirancang untuk sudut pandang yang optimal untuk LCD serta jarak untuk jari besar , dan banyak ruang untuk memiliki speaker internal yang besar bersama dengan CW keyjack , telepon / speaker, mikrofon, dan kabel kontrol.
D – STAR READY *
ICOM IC – 7100 menyediakan D – STAR DV modus suara digital dan komunikasi data kecepatan rendah .
( * Tidak ada info tentang band operasi luar 2m/70cm )
D – STAR : Smart Teknologi Digital untuk Amatir Radio
JIKA DSP fitur
Yang terbaru 32-bit floating point DSP mendukung banyak fitur pengolahan digital seperti digital IF filter, twin PBT , petunjuk filter takik . Tentu saja, fitur-fitur pengolahan digital highgrade bekerja pada semua band ham , dari HF ke band 70cm .
IC – 7100 Floating Point DSP
fitur lain
Built -in SD Card Slot untuk penyimpanan suara dan data kloning
Chip dual DSP memberikan kinerja pengolahan digital serbaguna
Built -in RTTY demodulator dan decoder
Multi- fungsi meter
Tampilan grafis SWR
DSP kontroler RF kompresor pidato
Total 505 channel memory
Rekaman suara dan playback fungsi
Cakupan 70 – 70.5MHz , 50W output daya ( untuk versi Eropa saja, bervariasi menurut versi . )
0.5ppm ± stabilitas frekuensi tinggi
Control IP opsional RS – BA1 software remote control
Aksesoris ICOM IC-7100
- mikrofon tangan
- Kabel listrik DC
- Steker keyer Elektronik
- sekering Spare
- Key steker
- kabel ACC
- kabel pemisahan
m
panel belakang
ICOM IC-7100 Specifications
| General | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frequency coverage (MHz) Receiver Transmit |
*1 Showing USA Version. Varies according to version. |
||||||||||||||||||||||||||||||
| Mode | USB, LSB, CW, RTTY, AM, FM, WFM (Rx only) | ||||||||||||||||||||||||||||||
| No. of memory channels | 505 (495 regular, 6 scan edges and 4 call) ; 700 (D-STAR repeater channels | ||||||||||||||||||||||||||||||
| Antenna connector | SO-239×2
(one each for HF/50 MHz and VHF/UHF bands, 50O) |
||||||||||||||||||||||||||||||
| Temperature Range | -10°C to +60°C;
+14°F to +140°F |
||||||||||||||||||||||||||||||
| Frequency stability | Within ±0.5 ppm (+0°C to +50°C; +32°F to +122°F) | ||||||||||||||||||||||||||||||
| Power supply requirement | 13.8V DC ±15% | ||||||||||||||||||||||||||||||
| Power consumption (approx.) |
|
||||||||||||||||||||||||||||||
| Dimensions (W×H×D) (projections not included) |
RF Unit 167x58x255 mm Controller 165x64x78.5 mm |
||||||||||||||||||||||||||||||
| Weight (approx.) | RF Unit 2.3kg Controller 0.5kg |
||||||||||||||||||||||||||||||
| Transmitter | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output power (at 13.8V DC) |
|
||||||||||||
| Spurious emissions | Less than -50dB (HF bands) Less than -63dB (50MHz) Less than -60dB (144/430MHz) |
||||||||||||
| Carrier suppression | More than 506dB | ||||||||||||
| Unwanted sideband suppression | More than 50dB | ||||||||||||
| Receiver | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Intermediate frequencies SSB, CW, RTTY, AM, FM WFM |
124.487 MHz, 455 kHz, 36kHz 134.732 MHz, 10.70 MHz |
||||||||||||||||||||||||||||||
| Sensitivity (Pre-amp: ON) |
|
||||||||||||||||||||||||||||||
| Selectivity SSB (BW=2.4kHz, sharp)CW (BW=500Hz, sharp)RTTY (BW=350Hz)AM (BW=6kHz) FM (BW=15kHz) DV (12.5kHz spacing) |
(representative value) More than 2.4 kHz/–6dB Less than 3.6kHz/–60dB More than 500 Hz/–6dB Less than 900 Hz/–60dB More than 360 Hz/–6dB Less than 650 Hz/–60dB More than 6.0 kHz/–6dB Less than 15 kHz/–60dB More than 12 kHz/–6dB Less than 20 kHz/–60dB -50dB |
||||||||||||||||||||||||||||||
| Spurious and image rejection ratio |
More than 70dB (HF bands) More than 65dB (other bands) (except 144MHz IF point) |
||||||||||||||||||||||||||||||
| AF output power (at 13.8V DC) |
More than 2.0W at 10% distortion with an 😯 load | ||||||||||||||||||||||||||||||
All stated specifications are subject to change without notice or obligation.
READ ALL INSTRUCTIONS carefully and completely before using the transceiver.
Supplied Accessories
- Hand microphone, HM-198
- DC power cable
- Spare fuses
- ACC cable (13-pin)
- Electronic keyer plug
- RTTY key plug
- Microphone hanger
