Icom ID-5100A

Icom ID-5100A

Icom ID-5100A receives 118–174MHz and 375–550MHz* with dual receiver capability that allows you to receive two bands simultaneously (including within a single band)*. Almost all VHF & UHF communications are available to you!
*See specifications for receive range coverage.

DV Dualwatch

Icom ID-5100A has simultaneous receive for FM/FM and FM/DV modes, and the capability of monitoring two DV signals. The main band audio has priority, if two DV signals come in at the same time.

GPS receiver

Icom ID-5100A/E has integrated GPS which allows you to transmit and receive position data from the built-in GPS receiver.

Position, course, speed and altitude are shown on the display.

The GPS position information can be used for exchanging position reports, tracing the GPS log and searching for nearby repeater sites.

The GPS antenna is located in the remote head, no external GPS antenna required.

DV/FM Repeater list function

The DV/FM repeater list function assists you in accessing near-by repeaters, even where you are visiting an area for the first time.

The function searches for near-by repeaters using the repeater memories with the GPS position information.

To use the repeater list function, the position data of the repeater is required in the repeater list.

Icom ID-5100A/E will be shipped with a limited number of repeater memories preprogrammed.

Dplus reflector linking

Dplus Reflector link commands are added to the DR function to allow easy reflector operation.

Use Reflector, link/unlink to Reflector, echo test and repeater information commands are selectable.

Built-in CTCSS/DTCS encoder and decoder

Built-in CTCSS and DTCS tones are used for accessing a closed repeater or tone squelch operation.

The pocket beep alerts you with a beep sound when the transceiver receives a preset tone. 1750Hz tone is also available.

UT-133 Bluetooth® unit (option)

This The UT-133 is the optional Bluetooth® board necessary for operation with the optional VS-3 headset and the optional RS-MS1A, Android™ application.

VS-3 Bluetooth® headset (option)

The optional Bluetooth® headset, VS-3, can be used for hands-free communication and remotely control Icom ID-5100A/E with three programmable buttons.

Providing you with convenient communication in a vehicle.

Connect to Icom ID-5100A/E for remote control of DR functions, link with a map application and send/receive messages and images over the DV mode.

*Optional UT-133 Bluetooth® unit must be installed in Icom ID-5100A.
*Some functions may not work properly, depending on Android™ phones and
devices used.

Other features Icom ID-5100A

• Menu-driven user interface
• DTMF via microphone or ID-5100 display
• Enhanced D-PRS functions with object, position, item and weather formats
• Convenient memory contents management using CSV data format
• Speech function announces operating frequency, mode and received callsign (DV mode)
• Independent main dial, volume and SQL knobs for A/B bands
• AM airband dualwatch
• CS-5100, cloning software supplied
• 50W output power on both VHF and UHF bands
• Weather channel with weather alert function*
• Auto repeater function*
  *USA versions only.



Specifications Icom ID-5100A

Frequency coverage	USA Version	Transmit	144–148, 430–450*1
		Receiver	118–174, 375–550*1
	EXP Version	Transmit	137–174, 400–470*2
		Receiver	118–174, 375–550*2
Type of emission			F2D, F3E, F7W
Mode			DV, FM, FM-N AM (RX only), AM-N (RX only)* * Depending on version
Operating temperature range			−10°C to +60°C; +14°F to +140°F
Frequency stability			±2.5 ppm (−10°C to +60°C on the basis of 25°C)
Digital TX speed			4.8 kbps
Voice coding speed			2.4 kbps

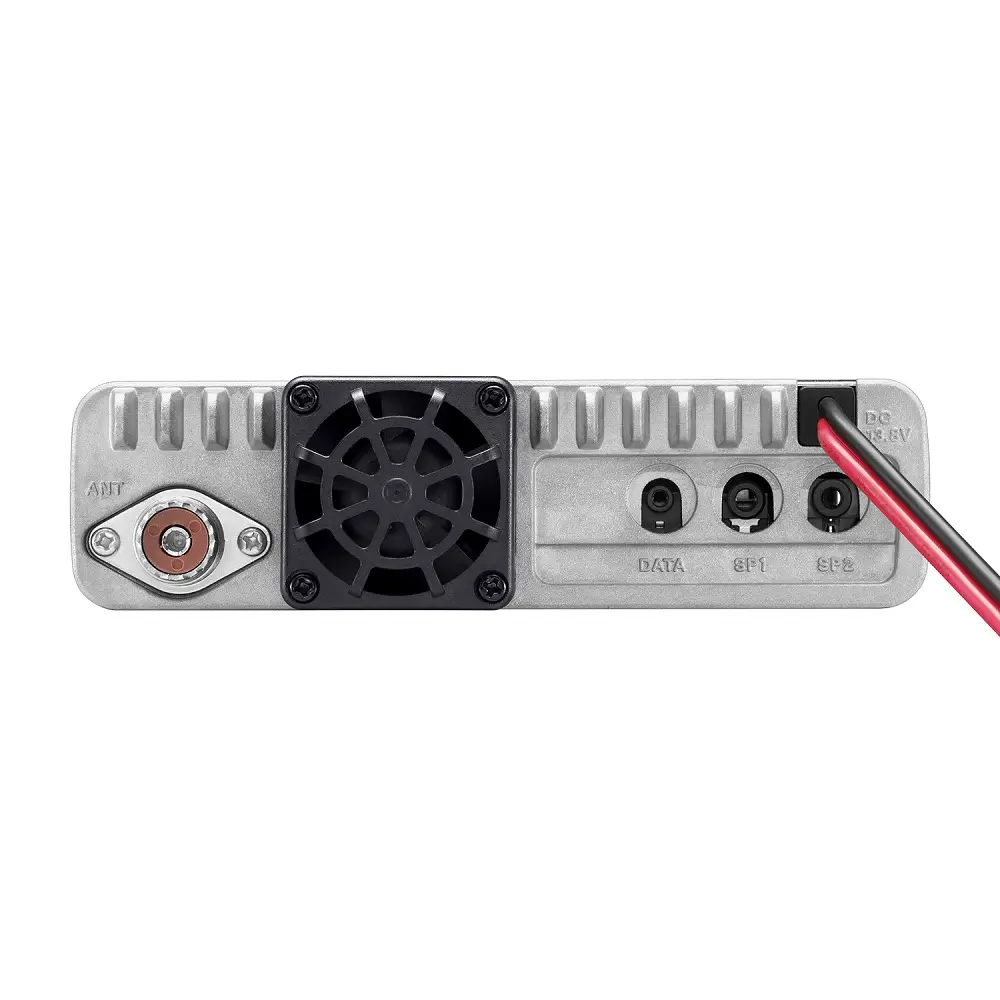

Antenna impedance			50 Ω (SO-239)
Number of memory channels			1000 regular channels, 4 call channels, 50 program scan edges and 1200 repeater memories
Power supply requirements			13.8 V DC ±15%
Current drain		RX Stand-by	1.2 A
		Max. audio	1.8 A (Dualwatch, with Ext. SP 8Ω load)
		TX	13.0 A

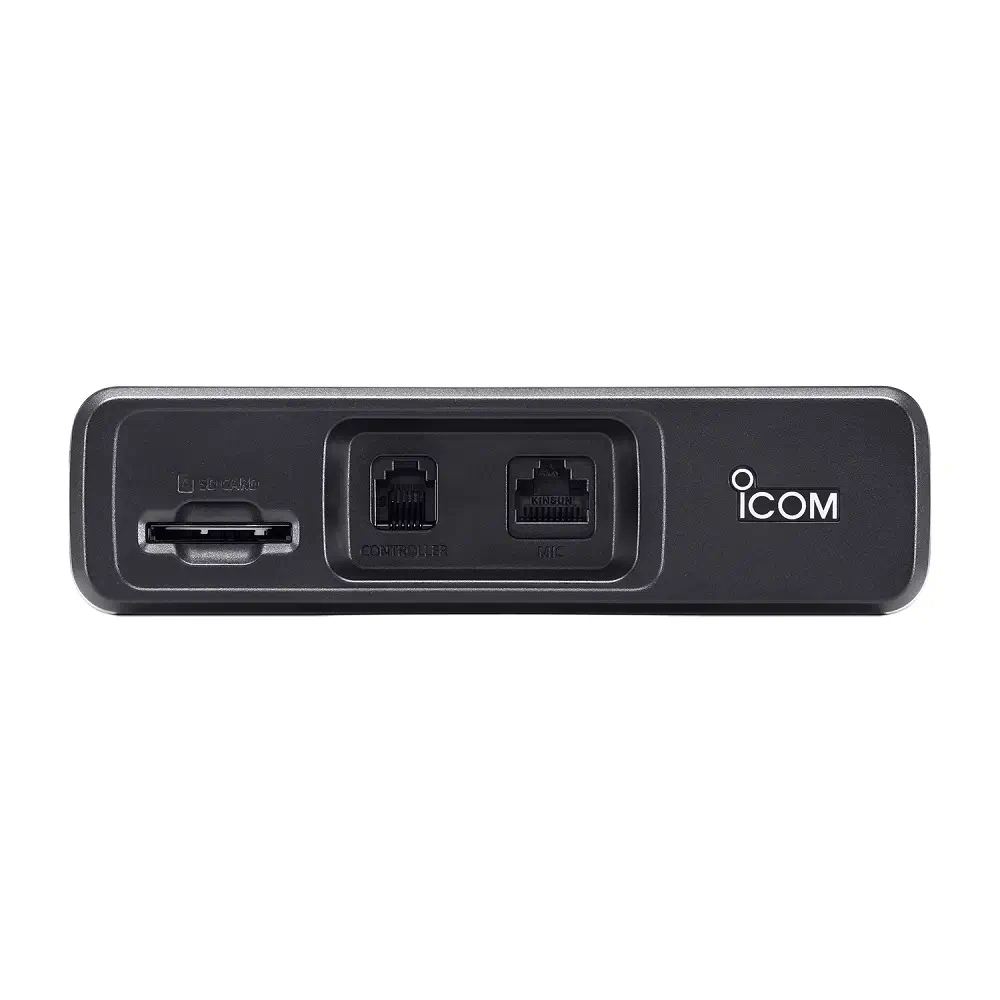

Dimensions (W×H×D, projections not included)		Main unit	150×40×172.6 mm; 5.91×1.57×6.8 in
		Controller	182.2×81.5×24.7 mm; 7.17×3.21×0.97 in
Weight (approx.)		Main unit	1.3 kg; 2.87 lb
		Controller	260 g; 9.17 oz

Guaranteed range:
^*1 144–148, 440–450 MHz.
^*2 144–148, 430–440 MHz

Output power		50 W, 15 W, 5 W
Modulation system	FM, FM-N	FM reactance modulation
	DV	GMSK reactance modulation
Max. frequency deviation		±5.0 kHz/±2.5 kHz (FM/FM-N)
Spurious emissions		Less than −60 dBc
Microphone impedance		600 Ω (8-pin modular jack)

Receiver

Intermediate frequencies	A band	38.85 MHz/450 kHz (1st/2nd)
	B band	46.35 MHz/450 kHz (1st/2nd)
Sensitivity	FM/FM-N (12 dB SINAD)	Less than 0.18 μV (amateur bands only)
	DV (1% BER)	Less than 0.28 μV
Receiver sensitivity (Not guaranteed, for your reference only. Except amateur bands.)	FM/FM-N (12 dB SINAD)	137–159.995 MHz Less than 0.32 μV
		160–174.000 MHz Less than 0.56 μV
		375–399.995 MHz Less than 0.56 μV
		400–499.995 MHz Less than 0.32 μV
		500–550.000 MHz Less than 0.56 μV
	AM (10 dB S/N)	118–136.9916 MHz Less than 1 μV
Squelch sensitivity		Less than 0.13 μV (at threshold)
Selectivity	FM	More than 60 dB
	FM-N	More than 55 dB
	DV	More than 50 dB
Spurious and image rejections	A band	More than 60/55 dB (VHF/UHF)
	B band	More than 60/60 dB (VHF/UHF)
Audio output power		More than 2.0 W (with 8Ω load, 10% distortion)
External speaker connector		2-condcutor 3.5 (d) mm (1/8″)/8Ω

All stated specifications are subject to change without notice or obligation.
