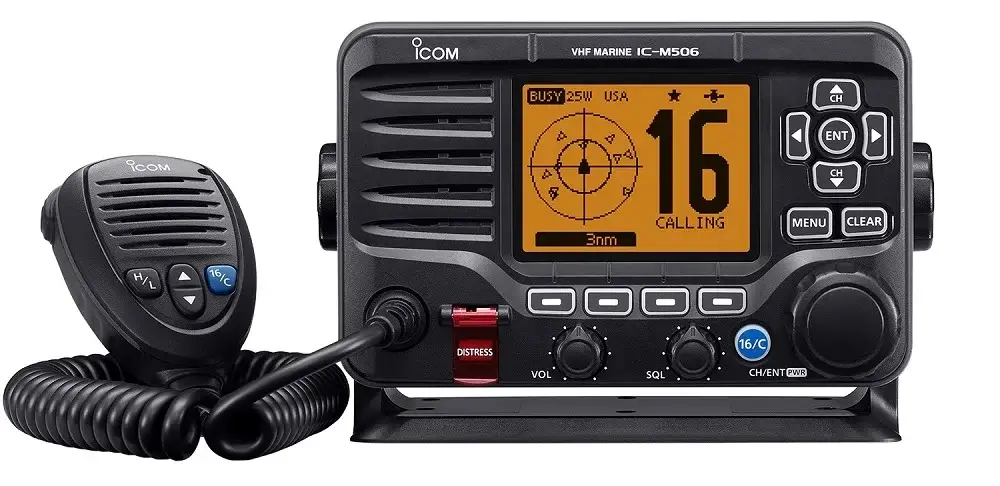

Icom IC-M506

Icom IC-M506

Integrated AIS Receiver*

With an integrated AIS receiver, Icom IC-M506 can show real-time AIS vessel traffic information on the display. The AIS target call function allows you to easily set up a DSC individual call. The Plotter, Target list and Danger list can be toggled on the display.
* AIS receiver and NMEA 2000 interface units are options, depending on version.

AIS plotter display
Target list example

NMEA 2000™ Connectivity*

With the plug-and-play functionality of NMEA 2000, the IC-M506 can easily connect to a NMEA 2000 network. The IC-M506 can receive and transmit GPS (position, course (COG) and speed (SOG)), AIS report and DSC call information data and transmit radio frequency and PGN list data on the network. Using this function, the IC-M506 can convert NMEA 0183 GPS data to NMEA 2000 data for other equipment.
* AIS receiver and NMEA 2000 interface units are options, depending on version.

Last Call Voice Recording

The last call voice recording function automatically saves the last two minutes of the last incoming call. You can replay the received call, and not miss any incoming call.

Active Noise Cancelling

Using digital signal processing technology, the built-in bidirectional active noise cancelling provides superb performance. It reduces background noise to up to 90% in the received signal and 30% fixed in the transmitting signal. The function OFF setting is also possible.

Intuitive Menu-Driven User Interface

The intuitive software key functions provide easy and fast operation to control the multiple functions of the IC-M506. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.

25W Two-Way Hailer

When connected to an external hailer horn, you can talk to people on the deck or shore from the radio’s microphone and can hear people’s reply via the hailer speaker. The RX hailer function allows you to monitor the received audio from the hailer horn. The built-in 25W amplifier increases your talk power, making it loud and clear.

Built-in Horn (Automatic & Manual)

Foghorn feature is built-in via the external Hailer horn. Four horn patterns are selectable for the automatic horn function.

ITU Class D DSC (Meets ITU-R M493-13)

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls. Up to 100 DSC address IDs can be programmed.

Rear Microphone Version*

With this version, the microphone connector is drawn from the rear panel and a 6.1m (20ft) microphone extension cable is supplied to allow you clean and neat panel installation.
* Ask your dealer for details.

IPX8 Submersible Plus™

The IC-M506 and supplied HM-205B/RB microphone can withstand 1m (3.2ft) depth of water for 60 minutes.

Other Features

• Auto and manual foghorn function
• Simple remote control speaker-microphone, HM-205B/RB
• 15W audio output power (with external speaker)
• Weather channels with alert function (USA version only)
• AquaQuake™ draining function
• Optional voice scrambler, UT-112 for private conversation
• MA-500TR AIS transponder and MarineCommander™ compatible

Supplied accessories

• Hand hanger
• DC power cable
• Mounting bracket kit

Rear panel view

Configuration Variations

	Microphone	NMEA 2000	AIS Receiver
IC-M506 AIS	Front Mic	NMEA 2000/ NMEA 0183	Integrated AIS Receiver
	Rear Mic
IC-M506 PLUS	Front Mic	NMEA 2000/ NMEA 0183	Not Included*2
	Rear Mic
IC-M506	Front Mic	NMEA 0183*1	Not Included*2

COMMANDMIC, MarineCommander and AQUAQUAKE are trademarks of Icom Inc. (Japan). All other trademarks are the properties of their respective holders.

General Specifications ICOM IC-506

			IC-M506
Frequency range		Tx	156.025–157.425MHz
		Rx	156.050–163.275MHz
		CH70	156.525MHz
		AIS1, 2	161.975, 162.025MHz
Usable channels			USA, CAN, INT, WX channels
Type of emission			16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement			13.8V DC (11.7–15.9V DC)
Current drain (at 13.8V DC)	Tx 25W output		5.5A
	Rx AF Max	External SP	5.0A (RX hailer ON)
		Internal SP	1.5A
Operating temperature range			−20°C to +60°C; −4°F to +140°F
Antenna impedance			50Ω (SO-239)
Weight (approx.)			1400g; 3.09lb

Transmitter

			IC-M506
Output power (at 13.8V DC)			25W, 1W
Max. frequency deviation			±5.0kHz
Frequency tolerance			±10ppm
Spurious emissions			Less than −70dBc (at 25W)
Residual modulation			More than 40dB
Adjacent channel power			More than 70dB

Receiver

			IC-M506
Intermediate frequency CH70			1st 30.15MHz, 2nd 450kHz 1st 21.7MHz, 2nd 450kHz
Sensitivity (at 12dB SINAD)			0.22μV typical
Adjacent channel selectivity CH70 (1% BER)			More than 75dB More than 73dBμ emf
Spurious response CH70 (1% BER)			More than 75dB More than 73dBμ emf
Intermodulation CH70 (1% BER)			More than 75dB More than 68dBμ emf
Hum and noise			More than 40dB
Audio output power (at 10% distortion)			More than 15W with a 4Ω RX speaker

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G Method, Proc.
Low Pressure Storage	500.5 I
Low Pressure Operation	500.5 II
High Temperature Storage	501.5 I
High Temperature Operation	501.5 II
Low Temperature Storage	502.5 I
Low Temperature Operation	502.5 II
Temperature Shock	503.5 I-C
Solar Radiation	505.5 I
Rain Blowing	506.5 I
Humidity	507.5 II
Salt Fog	509.5
Dust Blowing	510.5 I
Water Immersion	512.5 I
Vibration	514.6 I
Shock Functional	516.6 I
Shock Transit Drop	516.6 IV

Also meets equicalent MIL-STD-810-C, -D, -E and -G.

Applicable IP Rating and environmental test.

Ingress Protection Standard
Water	IPX8 (1m depth water for 60 minutes)
