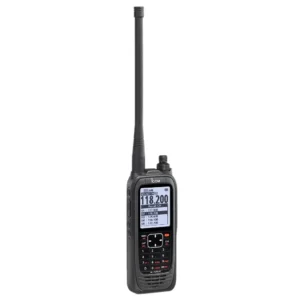

Icom IC-A25CE – HT Airband dengan GPS & Bluetooth
HT Airband Icom IC-A25CE hadir sebagai HT VHF Air Band generasi terbaru khusus untuk pilot. Radio HT (handy talky) penerbangan dengan gabungan optimal antara performa tinggi, kemudahan penggunaan dan fitur-fitur canggih untuk memenuhi kebutuhan komunikasi penerbangan.
Fitur-Fitur Icom IC-A25CE
Power Output Besar
Untuk cakupan komunikasi yang lebih luas, power output telah ditingkatkan menjadi sekitar 6 watt (PEP)/1.8 W (carrier) dibandingkan dengan model sebelumnya.
Mudah Digunakan
Fungsi yang sering digunakan ditempatkan pada tombol khusus untuk akses langsung. Tombolnya yang lebih besar dan datar membuat pemakaian cepat.
Layar LCD Besar
Layar LCD berukuran 2.3 inci, kontras tinggi, mudah dilihat, ramah pengguna dan jelas digunakan di bawah sinar matahari langsung.
“Flip-Flop” Pengingat Channel
HT VHF airband ini menyimpan hingga 10 channel terakhir yang digunakan. Anda bisa dengan mudah memanggil ulang channel tersebut melalui tombol arah, knob channel atau papan tombol numerik.
Kapasitas Baterai Besar
HT waterproof ini dilengkapi dengan baterai dengan kapasitas besar hingga 2350 mAh yang dapat digunakan hingga 10,5 jam*.
Fitur Tambahan Icom IC-A25CE
- Waterproof dengan rating IP57
- Dapat digunakan dengan enam baterai eksternal atau alkalin ukuran AA
- Antena BNC
- Tombol darurat 121.5 MHz
- Channel cuaca
- Scan channel VFO, scan channel memori, scan prioritas
- ANL (Pembatas Kebisingan Otomatis) untuk pengurangan kebisingan
- Fungsi side tone
- VOX internal
- 300 channel memori dengan nama 12 karakter
- Jarak channel 8.33 kHz
Spesifikasi Icom IC-A25CE
| GENERAL | |
| NAV and COM | COM channels |
| Frequency range | Tx/Rx: 118.000-136.992 MHz |
| Number of memory channels | 300 channels/15 groups |
| Channel spacing | 25/8.33 kHz |
| Type of emission | 6K80A3E, 5K00A3E |
| Power supply requirement | 7.2 VDC (BP-288), 11.0 VDC (External DC Jack) |
| Current drain (approximately) | |
| Tx High | Less than 1.8 A |
| Rx Max. audio/Stand-by | Less than 500 mA/90 mA typ. (GPS, Bluetooth®, Light: OFF) |
| Antenna impedance | 50 Ω |
| Operating temperature range | -20°C to +55°C |
| Dimensions (W x H x D) (Projections not included) | 58.9 x 148.4 x 31.8 mm |
| Weight (approximately) | 384 g (with antenna and BP-288) |
| TRANSMITTER | |
| Output power (at 72 VDC) | 6.0/1.8 W typ. (PEP/carrier) |
| Audio harmonic distortion | Less than 10% (at 85% modulation) |
| Harmonics Spurious emissions | Less than -36 dBm (except operating frequency ±1 MHz) |
| Frequency stability | ±1 ppm |
| RECEIVER | |
| Intermediate frequencies | 46.35 MHz/450 kHz (1st/2nd) |
| Sensitivity | |
| NAV (6 dB S/N) | Less than 0 dBp |
| COM (12 dB SINAD) | Less than 0 dBp (with CCITT filter) |
| Squelch sensitivity (at threshold) | Less than 0 dBp |
| Adjacent channel rejection | More than 60 dB |
| Spurious response | More than 70 dB |
| Ham and noise | More than 40 dB (at 90% modulation) |
| Audio output power | |
| External speaker | 530 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
| Internal speaker | 1200 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
| Ext. speaker connector | 3-conductor 3,5 (d) mm (1/8″)/8 Ω |
| Measurements made in accordance with EN300 676-2. | |
| All stated specifications are subject to change without notice or obligation. | |
Applicable U.S. Military Specifications
| Standard | MIL 810G | |
| Method | Procedure | |
| Low Pressure | 500,5 | I, II |
| High Temperature | 501,5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503,5 | I-C |
| Solar Radiation | 505,5 | I |
| Rain Blowing/Drip | 506,5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I. IV |
| Also meets equivalent MIL-STD-810-C, -D, -E and -F. | ||
Ingress Protection Standard
| Dust and Water | IP57 (Dust-protection and Waterproof* protection) * One meter depth for 30 minutes. |
|
Aksesoris Standar Icom IC-A25CE
- Baterai – Icom BP-288
- Antena – Icom FA-B02AR
- Dekstop Charger – Icom BC-224
- Adaptor Charger – Icom BC-123SE
- Belt Clip Icom MB-133
- Buku Panduan
Aksesoris Opsional Icom IC-A25CE
- Baterai Case – Icom BP-289
- Kabel Lighter – Icom CP-20
- Microphone – Icom HM-231
- Kabel Program – OPC-478UC, OPC-478UC-1, OPC-478UD
