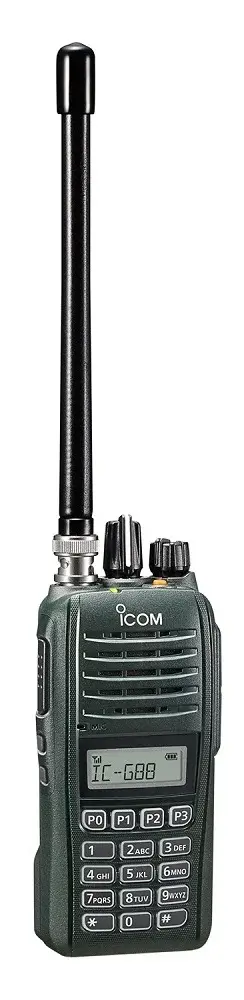

Icom IC-G88
COMING SOON
Produk terbaru dari Icom IC-G88 dengan standar militer, power 5,5 Watt battery tahan sampai 20 Jam dan Waterproof IP67
Fitur Icom IC-G88
- Easy field programming with VFO mode operation
- Up to 16 Favorite channels can be assigned to the rotary knob
- IP67 waterproof and dust-tight protection
- 5.5 W of output power
- Up to 20 hours of operating time with the supplied waterproof battery
- Eight character alphanumeric display
- CTCSS and DTCS encoder/decoder with Pocket beep
- Eight DTMF autodial memories
- MDC 1200 PTT ID and BIIS 1200 PTT ID
- Inversion voice scrambler (16 code) for private conversations
- Channel announcement of the operating channel number
- Seven programmable buttons with Shift key function
- Priority, memory and VFO scan
- Hands-free operation with an optional headset
Spesifikasi Icom IC-G88
General
IC-G88 | ||
|---|---|---|
| Frequency coverage |
136MHz–174MHz
|
|
| Type of emissions |
16K0F3E, 11K0F3E (25/12.5 kHz)
|
|
| Number of channels |
128 channels
|
|
| Antenna impedance |
50 Ω (BNC)
|
|
| Power supply requirement |
7.5 V DC
|
|
| Operating temperature range |
–30 ˚C to +60 ˚C (Radio only)
|
|
| Frequency stability |
±2.5 ppm
|
|
| Current drain (Approximate) | Tx High |
1.5 A
|
| Rx Max. audio/Stand-by |
500 mA (Internal SP) / 77 mA
|
|
| Dimensions (W×H×D) (Projections not included) |
52.2 × 111.8 × 30.3 mm (with BP-280)
|
|
| Weight Approximate) |
270 g (with BP-280)
|
|
Transmitter
IC-G88 | |
|---|---|
| Output power (at 7.5 V DC) |
5.5/2.0/1.0W
(Hi/L2/L1) |
| Max. frequency deviation |
±5.0kHz/±2.5kHz (Wide/Narrow)
|
| Spurious emissions |
70 dB minimum
|
| External microphone connector |
3-conductor 2.5(d)mm (1/10″)/2.2kΩ
|
Receiver
IC-G88 | |||
|---|---|---|---|
| Sensitivity |
0.25 µV typical (at 12 dB SINAD)
|
||
| Squelch sensitivity |
0.25 µV typical (at threshold)
|
||
| Adjacent channel selectivity |
76 dB/ 53 dB typical (W/N)
|
||
| Intermodulation |
74 dB typical
|
||
| Spurious response |
70 dB minimum
|
||
| Audio output power | Internal SP |
1500 mW typ. (8Ω load)
|
|
| External SP |
400 mW typ. (8Ω load)
|
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω
|
||
Measurements made in accordance with EIA/TIA-603.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 G
| |
|---|---|---|
|
Method
|
Proc.
| |
| Low Pressure |
500.5
|
I, II
|
| High Temperature |
501.5
|
I, II
|
| Low Temperature |
502.5
|
I, II
|
| Temperature Shock |
503.5
|
I-C
|
| Solar Radiation |
505.5
|
I
|
| Rain Blowing/Drip |
506.5
|
I, III
|
| Humidity |
507.5
|
II
|
| Salt Fog |
509.5
|
–
|
| Dust Blowing |
510.5
|
I
|
| Immersion |
512.5
|
I
|
| Vibration |
514.6
|
I
|
| Shock |
516.6
|
I, IV
|
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Dust & Water |
IP67 (Dust-tight and waterproof protection)
|
All stated specifications are subject to change without notice or obligation.
