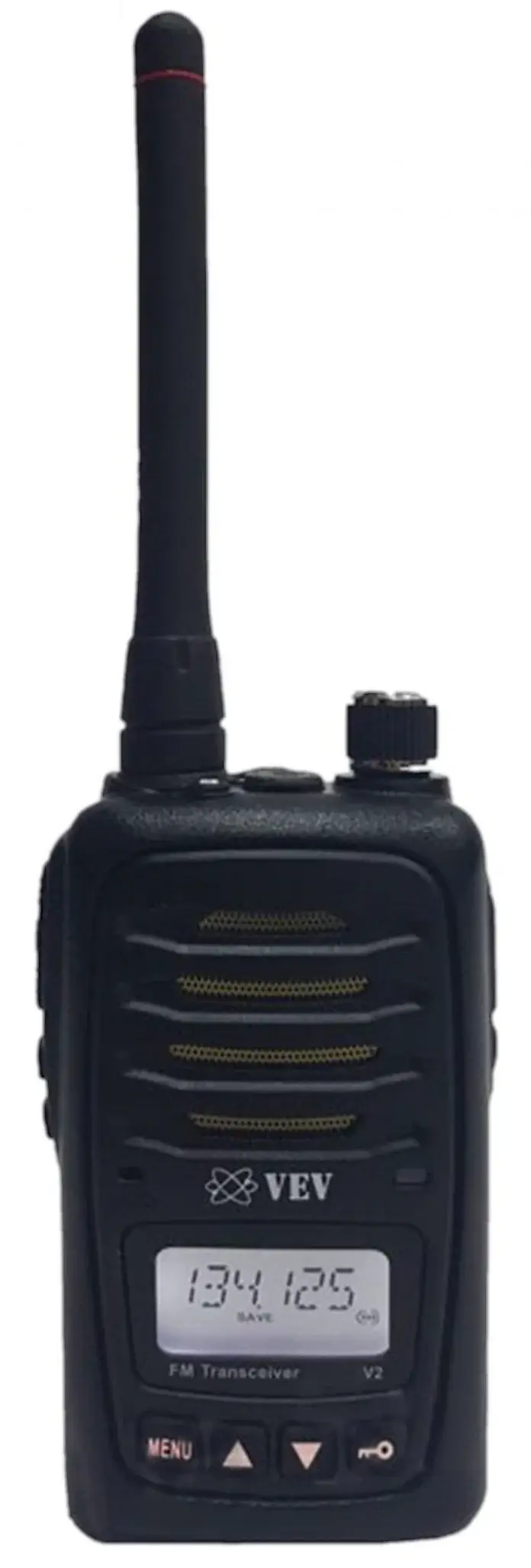

VEV-V2

SPECIFICATION

• Frequency Range : VHF ( 134-176 Mhz ) dan UHF ( 400-480 Mhz )
• Operating Temperature : 20C ~ + 50C
• Operating Voltage : DC 7.2V
• Operating Mode : Frequency simplek and different frequency simplex
• Size Dimension : 100mm X 52mm X 28mm ( Without Antenna )
• Weight : About 190g ( Included Battery )
• Antenna Impedance : 50 Ohm

• Transmiter Spesifications :

• Output Power : 2 Watt
• Frequency Stability: 2.5ppm
• Max Frequency Deviation : 5Khz
• Audio Distortion : 3%
• Modulation Character : 3dB~ 3dB
• Adjacent Channel Power: 65dB
• Spurious Radiation : 7.5 Hz
• Occupation Bandwitch : 16KHz

• Receiver Spesifications :

• Sensitivity : + 0.18
• Audio Distortion : < 3%
• Audio Response : < 2dB~ 10dB
• Channel Inhibition : < -8dB
• Adjacent Channel Selectivity : + 55dB
• Intermodulation Rejection : 55dB
• Spurious Response : 55dB
• Blocking : 85dB
