Vev V18

Vev V18

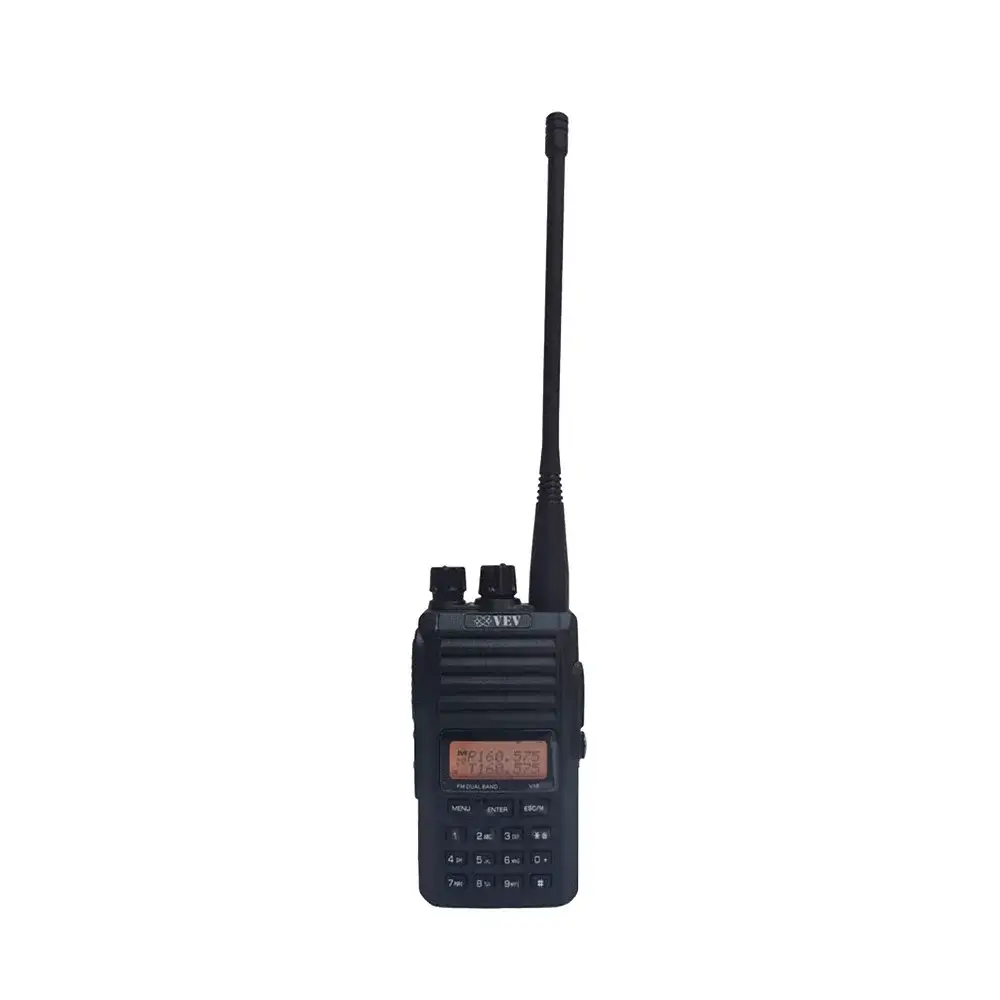

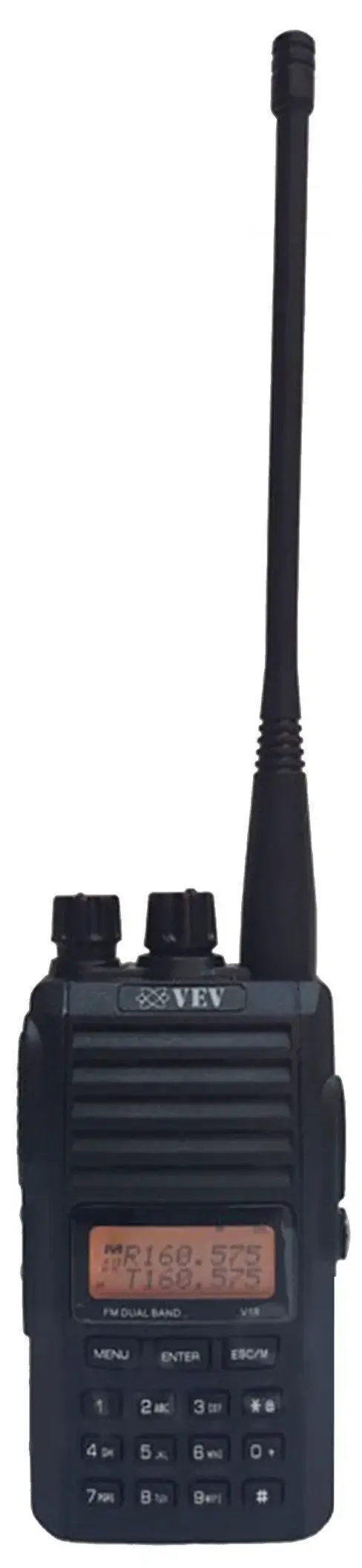

HT Vev V18

Features:

– FM Radio
– CTCSS/DCS
– Auto Search
– Battery: Li-ion Battery
– Dual-watch operation
– Power switch: 4W/2W/1W
– Built-in VOX function
– Priority scan
– Wide/naarrow bandwidth
– PC Programme or keypads programme
– Busy Lock
– Cable Clone
– Alarm Function
– Voice Scramblem (Optional)



Spesification :

• Frequency Range: 136-174MHz and 400-470MHz
• Power Output: 4 Watt / 1 Watt
• Talk Range: <5KM
• Volume: 110 x 56 x 37 mm

Transmitter:

• Emission Current: ≤1.5A
• Modulation Sensitivity: 12mV
• Modulation Distortion: <5%
• Modulation Limiting: Wide <5KHz Narrow <2.5KHz
• Modulation Mode: 16ΦF3E 11KΦF3E
• Remanent Radiation: ≤7μw
• Preemphasis Character: 6dB
• CTCSS/DCS Frequency Deviation: 0.75KHz±50Hz 0.37KHz±30Hz

Receiver:

• RF Sensitivity: -122dBm(12dB SINAD)
• Modulation Receiver Bandwith: 5KHz
• Audio Distortion: ≤10%
• Audio Power: <0.5w
• Audio Response: 6dB
• Blocking: ≥85dB
• Spurious Response Rejection: ≥65dB

Each set packaging includes:

• 1 Body
• 1 7.4V Lithium Battery
• 1 Charger
• 1 User Manual
