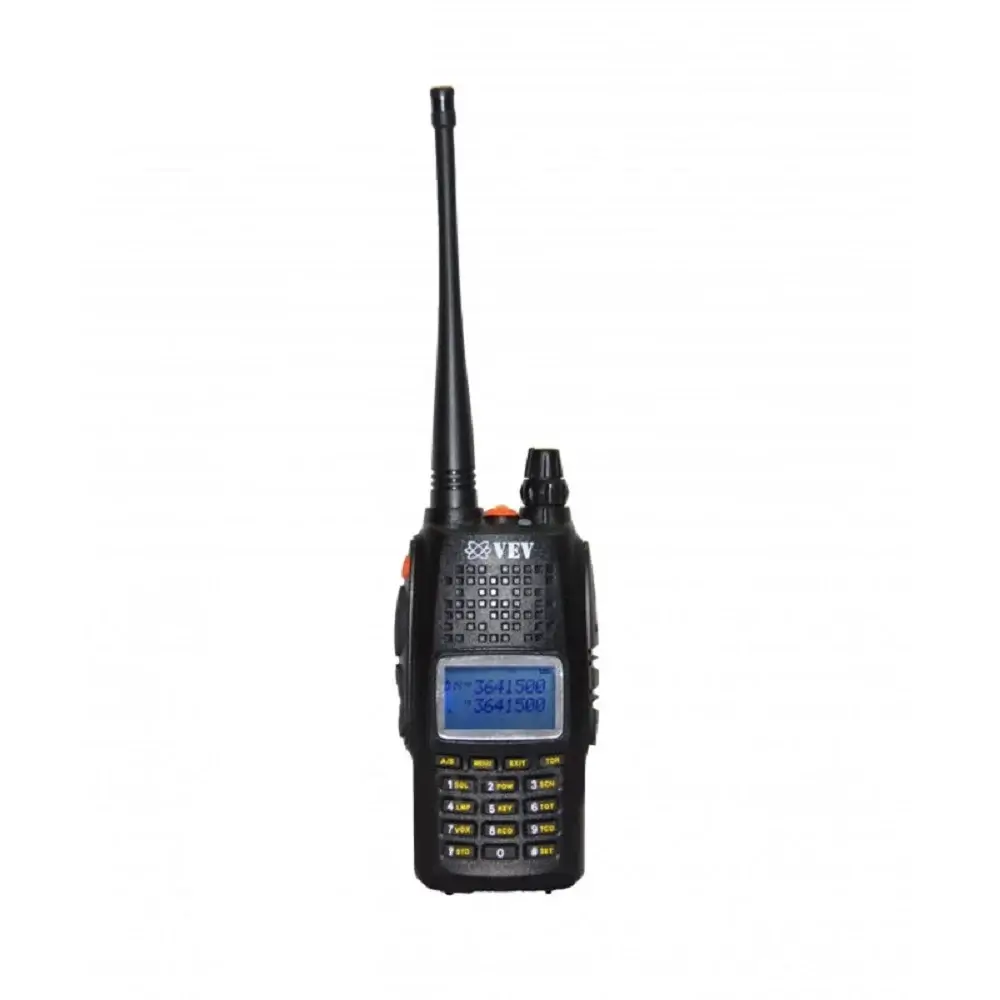

VEV V10
HT VEV V10
Specification :
| Model | VEV-V10 |
| Frequency Range | UHF:400-480 |
| Channel capacity | 99 |
| Output power | 10W |
| Operating Voltage | 7.4V |
| Antenna Impedance | 50 ohm |
| Working Temperature | -20ºC—50ºC |
| Frequency Spacing | 12.5/25kHz |
| Battery capacity | 3500mAh |
| Color | Black |
| Communication distance | 3-5km(Downtown)6-20km(In the open area) |
| Dimension(Exclude antenna) | 120x60x40mm |
| Weight(Include Battery) | 256g |
| Feature | |
| CTCSS/DCS | 50 CTCSS / 105 DCS |
| Waterproof level | Rain proof |
| High/Low power switchable | Yes |
| Noise suppression function | Yes |
| Ultra bright flashlight | Yes |
| Emergency alarm function | Yes |
| Prompt radio number | Yes |
| Charging adapter can be directly inserted into the machine | Yes |
| Large capacity battery | Yes |
| Communication distance | Yes |
| Scanning function | Yes |
| Key Lock/Unlock Function | Yes |
| Squelch | Yes |
| Monitor function | Yes |
| Power saving function | Yes |
| TOT function | Yes |
| Chinese and English voice prompt | Yes |
| PC software or Manual programmable | Yes |
| Specification | |
| RF power output | 0.5W-10W |
| Modulation type | F3E |
| Modulation distortion | <5%(300-3000Hz) |
| Max freq deviation | <5kHz (1000kHz when 100%) |
| Sensitivity(12dB SINAD) | 0.16µV |
| Selectivity | 55dB |
| Adjacent channel selectivity | >=70dB |
| Noise respond | >=60dB |
| Audio power output | 500mW when distortion less than 10% |
| Audio distortion | <5% |
| Operating bandwidth | ±3.75kHz/±7.5kHz |
