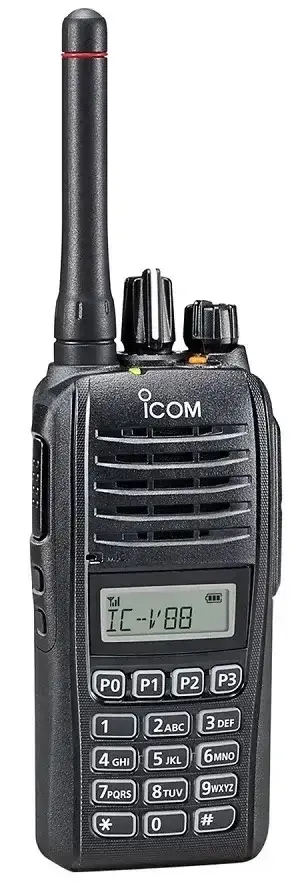

Icom IC-U88
Fitur-Fitur Icom IC-U88
Berikut ini beberapa fitur Icom IC-U88:
- Frequency coverage : (Differs according to version ) UHF 335-380 MHz
- Dimensions (WHD; Proj. not included) 5811230 mm
- Weight (approx.) 360g with antenna and BP-264
- Output power (at 7.2V DC) 4.0W, 2.0W, 0.5W
- (typical values) Sensitivity (at 12dB SINAD) 0.2V typ.
- Audio output power (at 10% distortion) 750mW typ.
- Powerful 4W of output power
- IP54 and MIL-STD-810 rugged construction
- Large capacity Li-Ion battery pack provides 17.5 hours* of operating time.* Typical operation. 5:5:90 duty cycle with auto power save.
- Integrated VOX function.
- 200 memory channels, 1 call channel and 6 scan edges.
- Built-in CTCSS and DTCS encoder/decoder.
- PC programmable (With optional CS-U80).
- Transceiver-to-transceiver cloning (Optional).
- Wide/narrow channel spacing.
Spesifikasi Icom IC-U88
General
IC-V88 |
IC-U88 |
||
|---|---|---|---|
| Frequency coverage |
136MHz–174MHz
|
335MHz–380MHz
|
|
| Type of emission |
16K0F3E, 11K0F3E (25/12.5kHz)
|
||
| Number of channels |
128 channels
|
||
| Antenna impedance |
50Ω
|
||
| Power supply requirement |
7.5V DC
|
||
| Operating temperature range |
−30°C to +60°C (Radio only)
|
||
| Frequency stability |
±2.5ppm
|
||
| Current drain (approx.) |
Tx High | 1.5A | 1.3A |
| Rx Max. audio/Stand-by |
330mA
(Internal SP) /77mA |
300mA
(Internal SP)/80mA |
|
| Dimensions (W×H×D) (Projections not included) |
52.2×111.8×22.3 mm (with BP-278)
|
||
| Weight |
230g (with BP-278)
|
||
Transmitter
IC-V88 |
IC-U88 |
|
|---|---|---|
| Output power (at 7.5V) |
5.5/2.0/0.5W
(Hi/L2/L1) |
4.0W/2.0W/1.0W
(Hi/L2/L1) |
| Max. frequency deviation |
±5.0kHz/±2.5kHz (Wide/Narrow)
|
|
| Spurious emissions |
70dB min.
|
|
| Ext. microphone connector |
3-conductor 2.5(d)mm (1/10″)/2.2kΩ
|
|
Receiver
IC-V88 |
IC-U88 |
||
|---|---|---|---|
| Sensitivity |
0.25μV typ. (at 12dB SINAD)
|
||
| Squelch sensitivity |
0.25μV typ. (at threshold)
|
||
| Adjacent channel selectivity |
76dB/53dB typ.
(Wide/Narrow) |
73dB/56dB typ.
(Wide/Narrow) |
|
| Intermodulation |
74dB typ.
|
73dB typ.
|
|
| Spurious response |
70dB min.
|
||
| Audio output power | Internal SP |
800mW typ. (12Ω load)
|
|
| External SP |
400mW typ. (8Ω load)
|
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω
|
||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G Method, Proc. |
|---|---|
| Low Pressure Storage |
500.5 I
|
| Low Pressure Operation |
500.5 II
|
| High Temperature Storage |
501.5 I
|
| High Temperature Operation |
501.5 II
|
| Low Temperature Storage |
502.5 I
|
| Low Temperature Operation |
502.5 II
|
| Temperature Shock |
503.5 I-C
|
| Solar Radiation |
505.5 I
|
| Rain Blowing |
506.5 I
|
| Rain Drip |
506.5 III
|
| Humidity Induced |
507.5 II
|
| Salt Fog |
509.5
|
| Dust Blowing |
510.5 I
|
| Immersion |
512.5 I
|
| Vibration |
514.6 I
|
| Shock Functional |
516.6 I
|
| Shock Transit Drop |
516.6 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Dust & Water |
IP67 (Dust-tight and waterproof protection)
|
All stated specifications are subject to change without notice or obligation.
Aksesoris Standar Icom IC-U88
- Baterai BP-278
- Antena FA-SC01U, UHF 350-400 MHz
- Rapid desktop charger BC-213, AC Adapter BC-242
- Belt Clip MB-133
Aksesoris Opsional Icom IC-U88
- Baterai
- Multi Charger BC-214, adapter BC-157S
- Microphone : HM-158LA, HM-159LA, HM-168LWP
- Antena FA-SC02U, UHF 330-380 MHz
