The latest ICOM Digital Signal Processor technology with a compact remote head

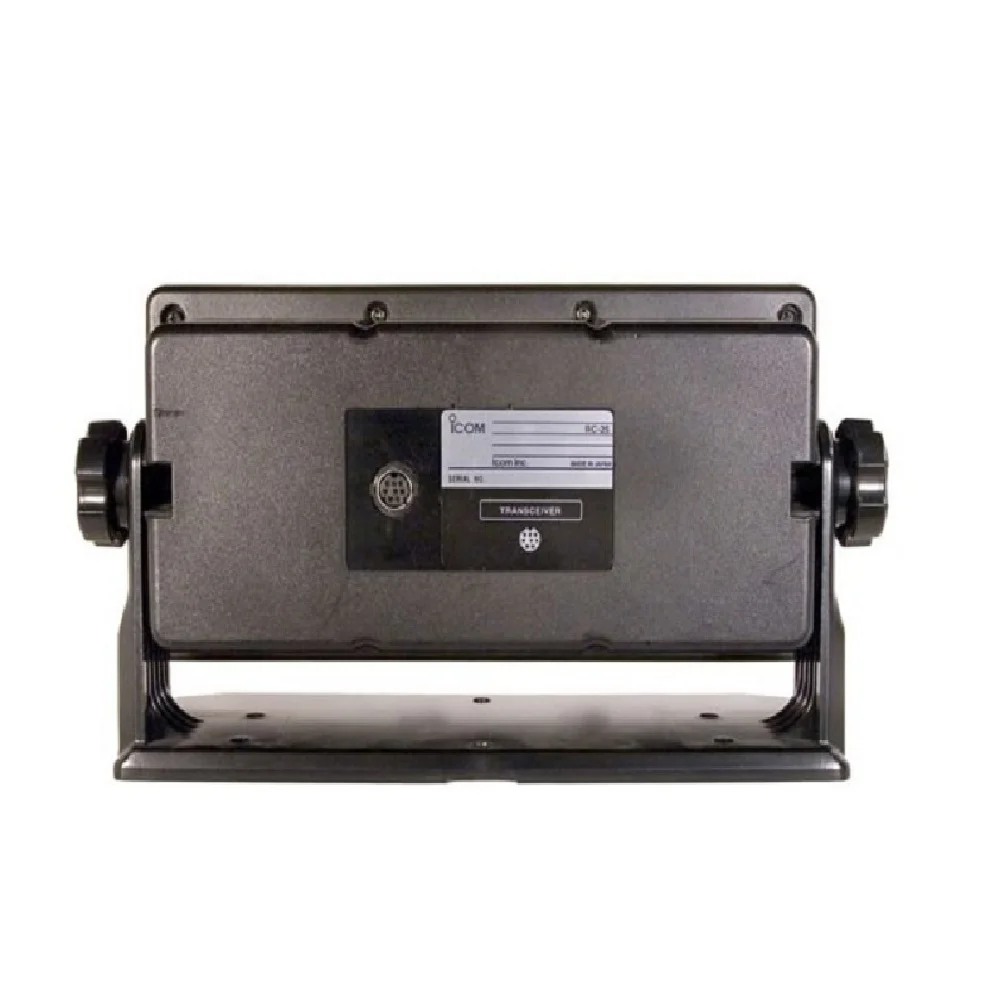

Standard 4×8 remote controller
The IC-M802 offers an industry-standard 4-inch tall (10.16 cm) remote controller. When set up with the IC-M502 / IC-M504 VHF radio, Icom offers you a complete communications station.

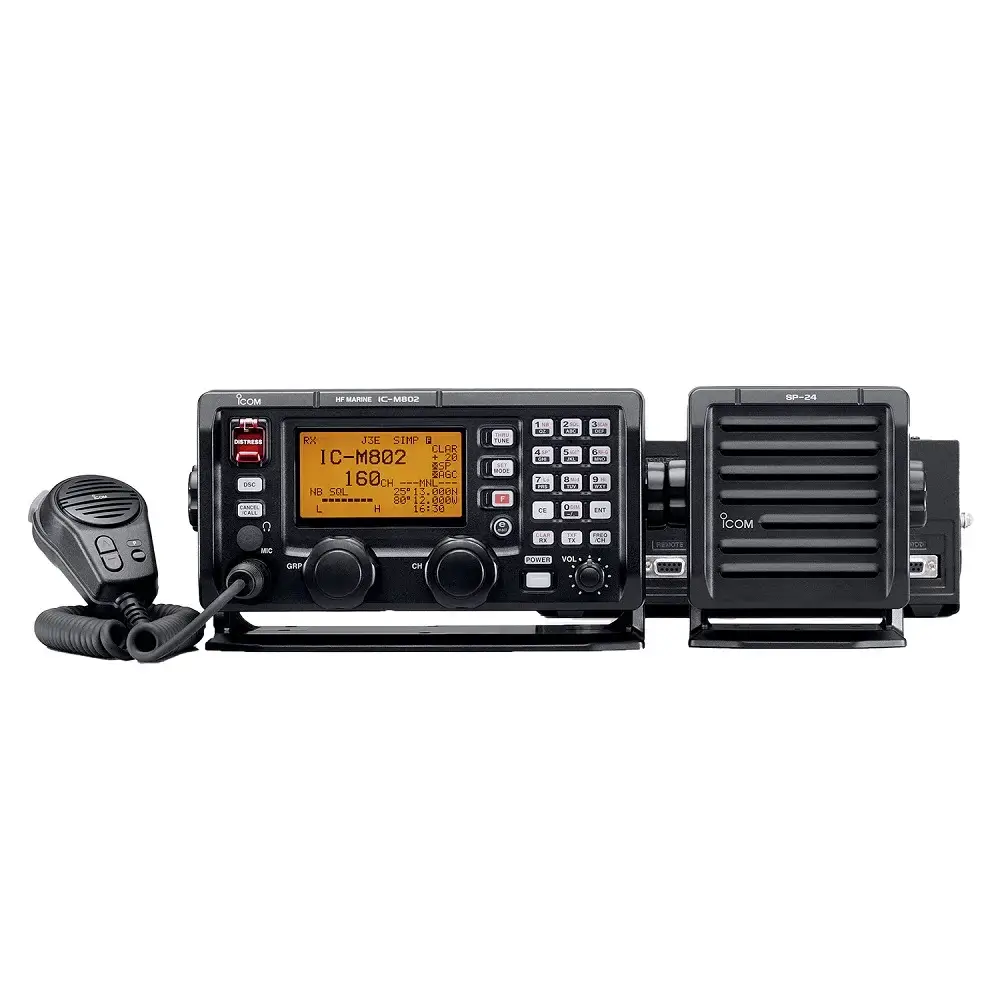

Large LCD with dot matrix characters
You can easily read the alphanumeric name of any of the 1355 ITU channels at a glance with the large LCD display. Nighttime operation is no problem with 10 levels (plus OFF) adjustable backlit display and keypad.
Icom IC-M802 Easy to use in all conditions
The IC-M802 offers two large dials – bank and channel – for easy channel selection. Up to 16 banks of 20 (max.) each for user channels, and 17 banks for ITU channels are available.
Built-in digital selective calling
For added safety at sea, the Icom IC-M802 offers the latest in one-touch DSC emergency communications technology. (ITU Class E standard.) The emergency button is covered by a red, spring loaded hatch to avoid accidental DSC activation.
Digital signal processor advantage
The speech compressor, utilizing DSP, increases average talk power. Flexible filter settings provide for narrow band signals like e-mail, SITOR, FSK and other operation without an optional filter.
150W (PEP) of powerful output
150 Watts of power offers superior worldwide communications. A one piece, die cast aluminum chassis and a large cooling fan allow continuous transmission at full output power– very important for data communications, like e-mail.
One-touch e-mail access
An SSB first! The IC-M802 can be set to memorize your HF e-mail access frequency, mode and bandwidth settings. At sea e-mail has never been easier.
* Please consult with an HF e-mail provider for details.
Automatic antenna tuner, AT-140
An optional automatic antenna tuner, AT-140, easily connects to the IC-M802. When the tuner cannot tune the antenna, the IC-M802 bypasses the tuner and displays a warning indicator on the LCD.
Other features Icom IC-M802
- Wide band receive coverage (0.5 – 29.9999MHz)
- Remote control mic allows you to select channels directly
- Accessory RS-232C port allows connection of modem, etc.
- GPS input, NMEA 0183 version 3.01
- A headphone jack in front of the controller
Specifications Icom IC-M802
0.5– 29.9999 (continuous)1.6– 2.9999, 4.0– 4.9999, 6.0– 6.99998.0– 8.9999, 12.0– 13.9999, 16.0– 17.999918.0– 19.9999, 22.0– 22.9999, 25.0– 27.5000
|Type of emission||J3E (SSB), J2B (AFSK), F1B
(FSK), A1A (CW), H3E (AM*)
|Number of channels||1355 (max.)
(160 programmable channels; 249 ITU SSB duplex; 72 ITU
SSB simplex; 662 ITU FSK duplex; 160 e-mail; 21 ITU
4MHz simplex; 31 ITU 8MHz simplex)
|Antenna impedance||50Ω (SO-239)|
|Power supply requirement||13.6V DC ±15%|
|Max. current drain
(at 13.6V DC)
|Tx (Max. power) 30A (typ.)
Rx (Max. audio) 3.0A
|Operating temp. range
|–30°C to +60°C; –22°F to +140°F
–20°C to +55°C; –4°F to +131°F
|Frequency stability||±10 Hz (at –20°C to +55°C)|
|Output power||150, 60, 20W PEP (Selectable)|
|Sensitivity (at 10dB S/N)||
|Audio output power||4.0W at 10% distortion with a 4Ω load|
|Audio output impedance:||4–8Ω|
|Clarity variable range||±150 Hz|
|GPS interface||NMEA 0183 version 3.01|
All stated specifications are subject to change without notice or obligation.

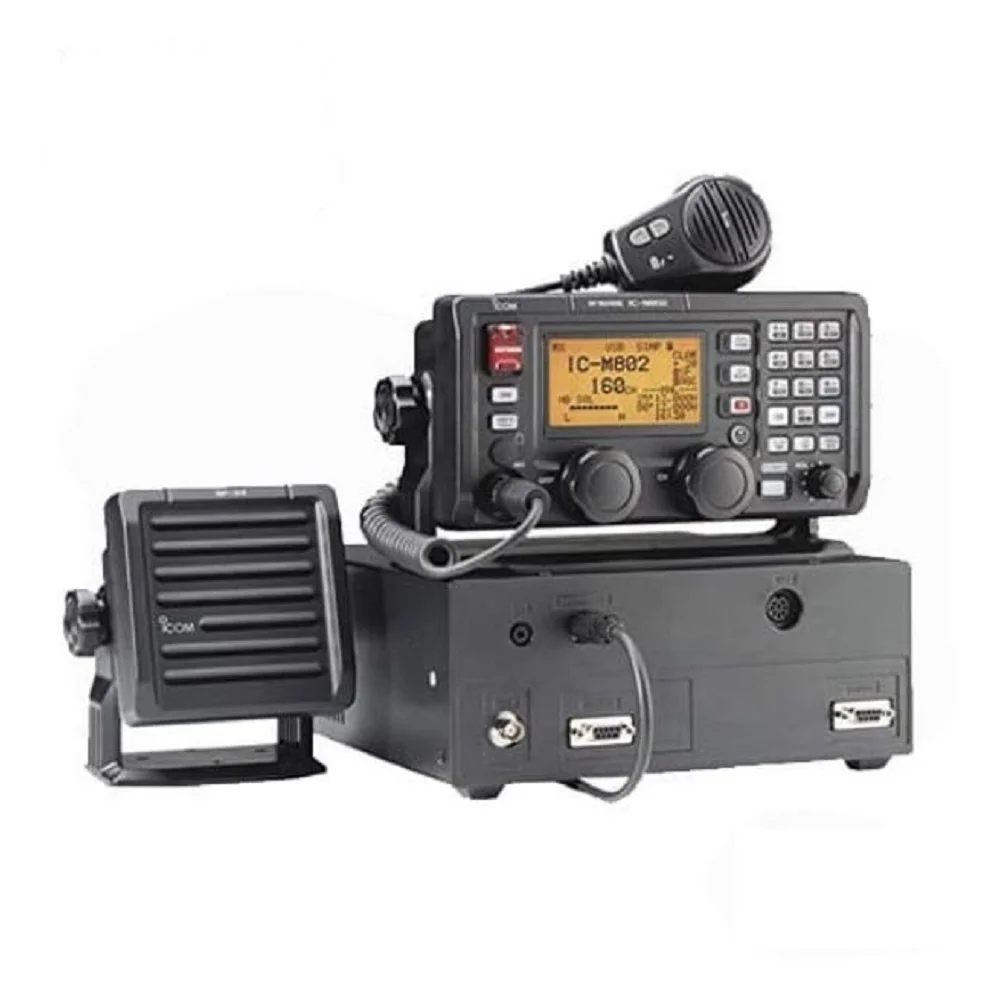

- Separation cable, OPC-1106 (5m; 16.4ft)
- Hand microphone, HM-135
- External speaker, SP-24
- Mounting bracket kits
- Microphone hanger
- DC power cables
- ACC plugs
- Spare fuse
