Icom IC-M510

Icom IC-M510

Use the RS-M500 app (for iOS™/Android™) to remotely control Icom IC-M510 through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™. Intercom function between your smart device and the radio is also available.

Integrated AIS Receiver*

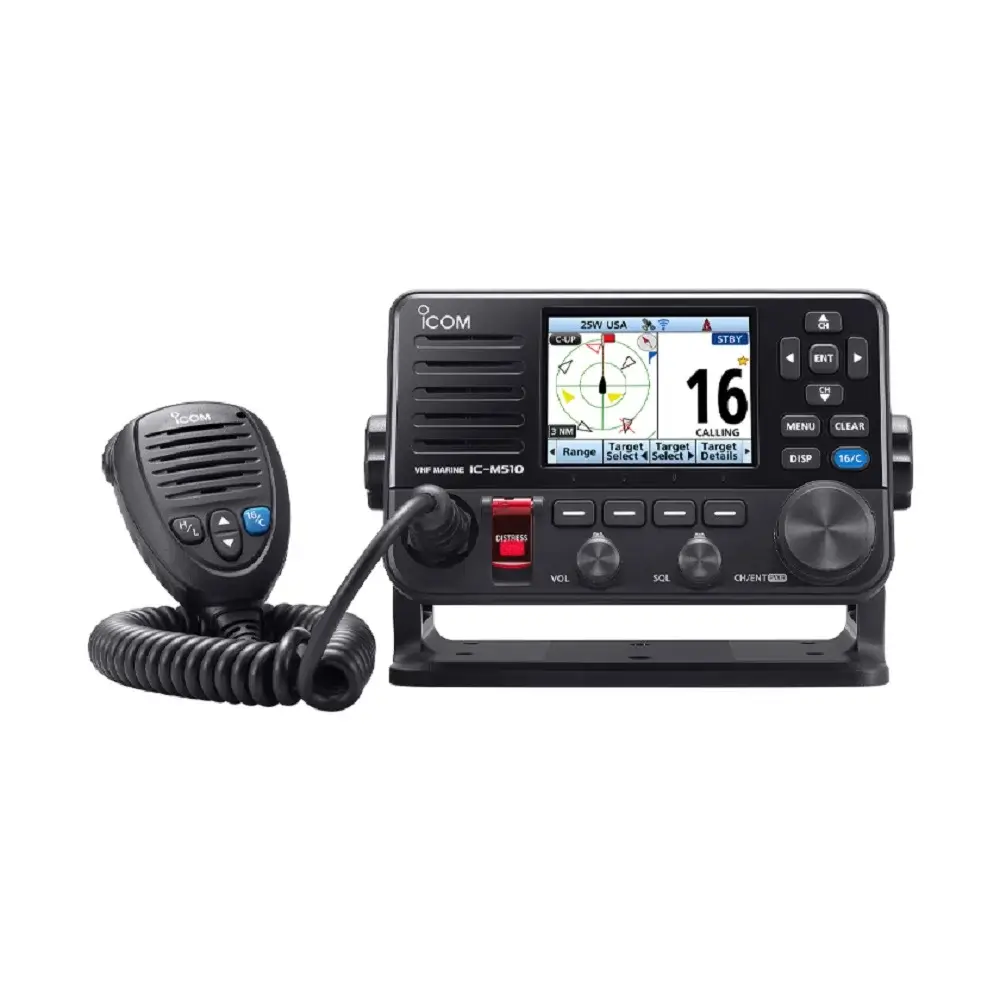

With its integrated AIS receiver* or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
* AIS receiver is not included depending on the transceiver version.

Wide Viewing Angle Color TFT LCD

Menu screen

The color TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

New Sleek Design

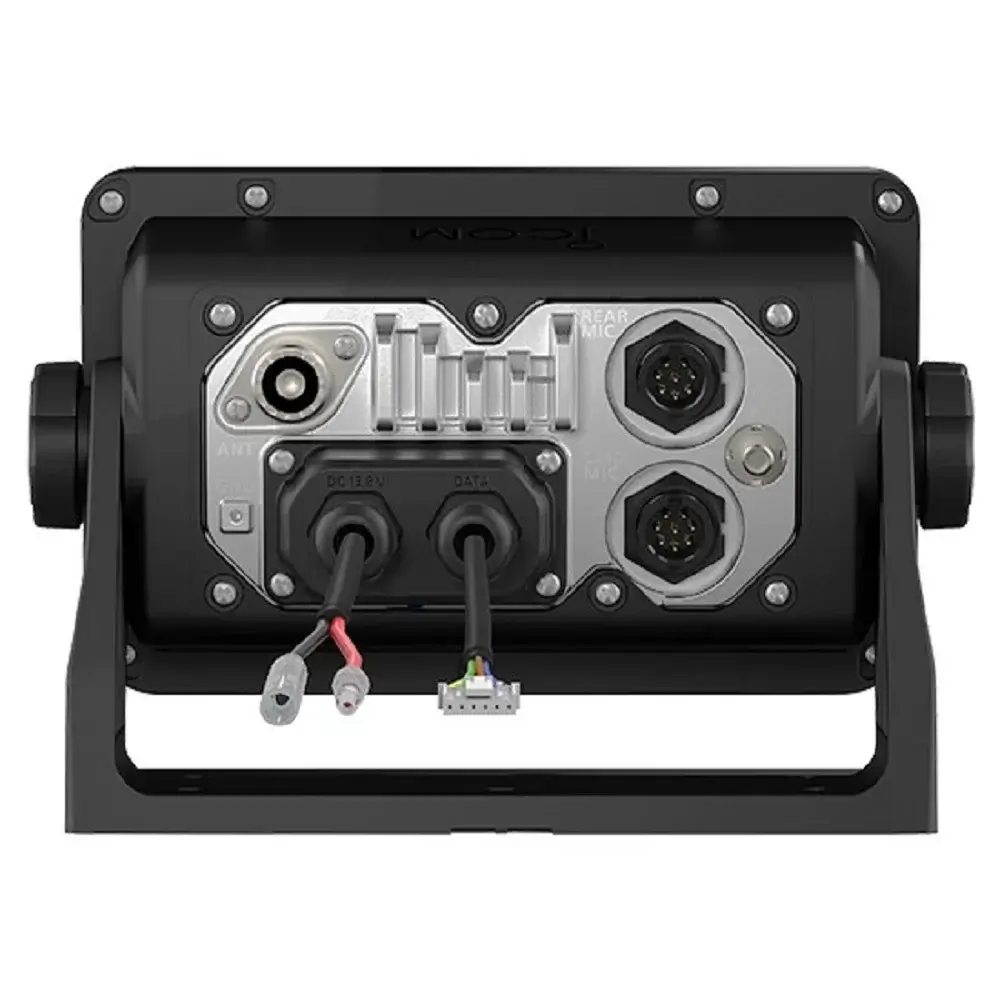

The IC-M510 is slim (depth: 53.6 mm; 2.1 in) and easy to install in your boat. It’s all-new sleek design is suitable for either panel or trunnion mounting.

Simplified Navigation Function

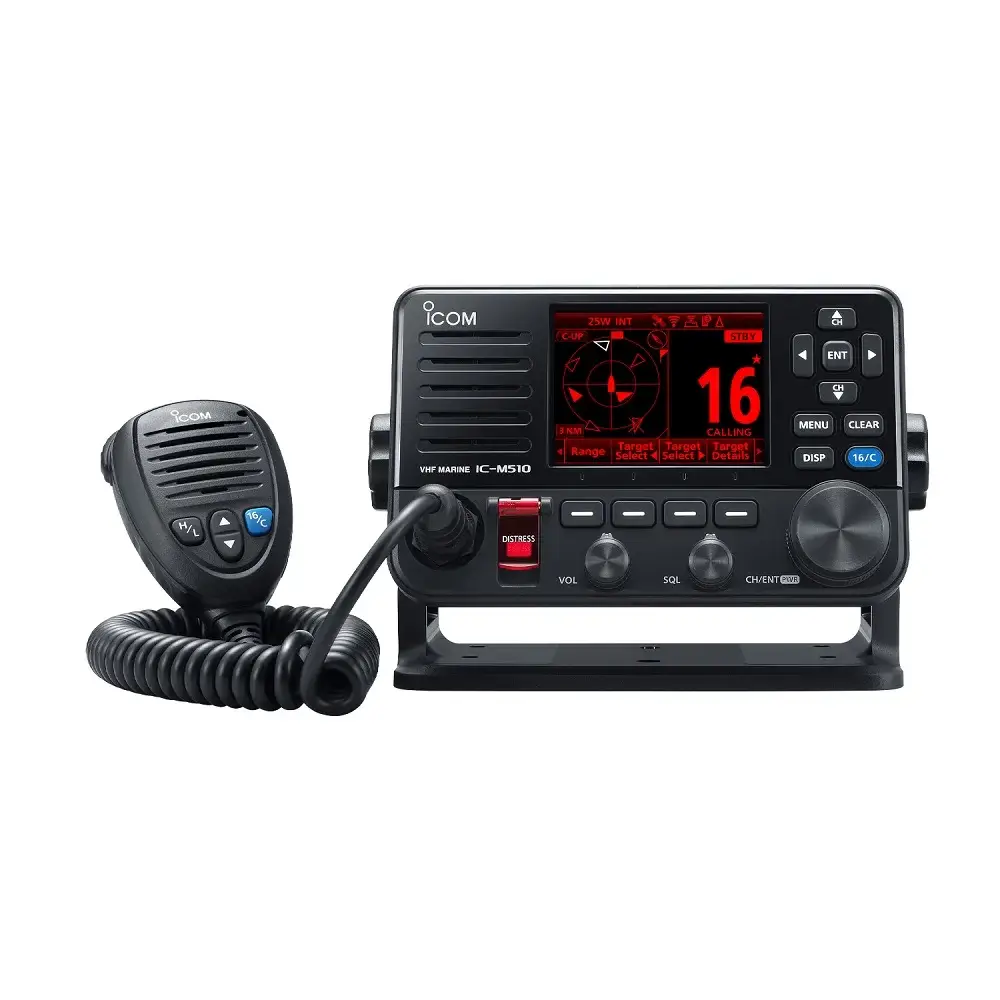

Navigation screen

The Navigation function guides you to a specified waypoint or AIS target. You can assign up to 100 destinations as waypoints.

Provides Clear, Loud Audio

The IC-M510’s internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.

Interface BOX for NMEA 2000™ and Hailer

The optional CT-M500 wireless interface box provides NMEA 2000™ connectivity and Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.

Prestigious iF Design Award 2022 Recipient

The IC-M510 is a winning product of the iF DESIGN AWARD 2022, the world-renowned design prize.  The IC-M510 VHF marine radio provides essential maritime communication and supports safety on the water. Integration with the newly developed RS-M500 smart-device app also enables an unprecedented onboard communication experience.

AIS Target Call with MA-510TR

When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

Other Features

• Active Noise Canceling
• NMEA 0183/HS connectivity
• Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)
• IP68 advanced waterproofing (1 m depth of water for 60 minutes)
• Automatic Foghorn function (CT-M500 required)
• Voice Scrambler with optional UT-112A
• AquaQuake™ prevents audio degradation from a water-logged speaker
• Supplied speaker-microphone, HM-205RB can be connected to either front or rear panel to meet to user’s requirement.
• External speaker connection
• Controlled with COMMANDMIC™ HM-195GB/GW
• Supports 4-digit channels

IC-M510 Configuration Variations

	AIS Receiver
IC-M510 AIS	Integrated
IC-M510	Not included

Specification Icom IC-M510

Frequency range		TX	156.025–157.425 MHz
		RX	156.050–163.275 MHz
		DSC	156.525 MHz
		AIS1, 2*1	161.975, 162.025 MHz
Usable channels			USA, CAN, INT, WX channels
Type of emission			16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1
Power supply requirement			13.8 V DC (11.7–15.9 V DC)
Current drain (at 13.8 V DC)	TX 25 W output		5.5 A
	RX Max. audio		3.3 A
Operating temperature range			–20°C to +60°C; –4°F to +140°F
Antenna impedance			50 Ω
Weight (approx.)			730 g; 1.6 lb (Not including microphone)

Transmitter

Output power (at 13.8 V DC)		25 W, 1W
Max. frequency deviation		±5 kHz
Frequency tolerance		±0.5 kHz
Spurious emissions		Less than −70 dBc (at 25 W)
Residual modulation		More than 40 dB
Adjacent channel power		More than 70 dB

Receiver

Sensitivity (at 12 dB SINAD) DSC (1% BER)		0.32 μV typical 0.89 μV emf typical
Adjacent channel selectivity DSC (1% BER)		More than 75 dB More than 73 dBμ emf
Spurious response DSC (1% BER)		More than 75 dB More than 73 dBμ emf
Intermodulation DSC (1% BER)		More than 75 dB More than 68 dBμ emf
Hum and noise		More than 40 dB
Audio output power (at 10% distortion)		More than 15 W with a 4 Ω external speake

Wireless LAN

Wireless LAN standard	IEEE802.11 b/g/n
Authentication and Encryption	WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels	1 to 13 (2.4 GHz band)*2
Output power	Less than 10 mW/MHz

*1 Only for the Integrated AIS version. *2 May differ depending on the country of use.
Measurements made in accordance with TIA/EIA 603.
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain	506.5	I
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & Water	IP68 Dust-tight and waterproof protection

Supplied Accessories

• Speaker microphone, HM-205RB
• Microphone hanger
• DC power cable
• Mounting bracket kit
