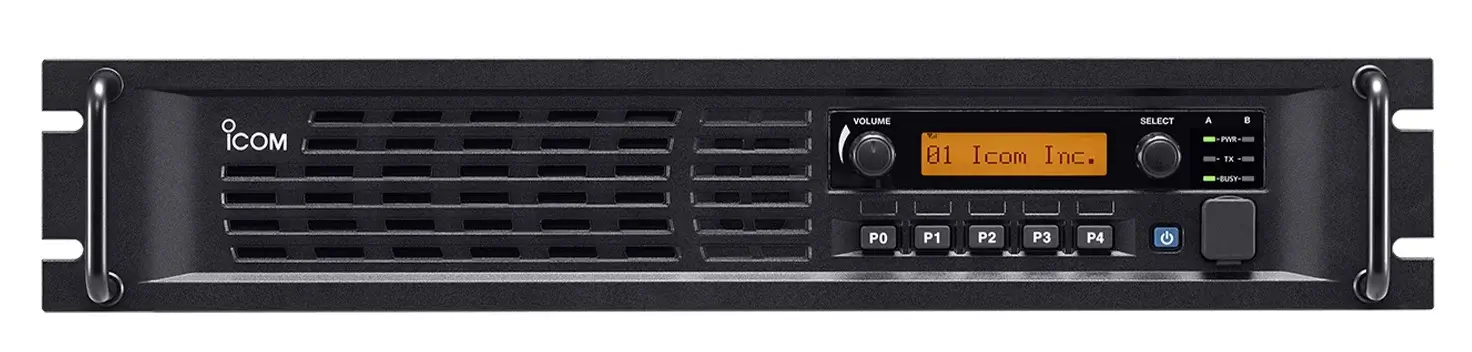

Icom IC-FR5300 System Scalability
Icom IC-FR5300 series can be easily upgraded by installing an optional UC-FR5300 Network/controller board and software provided with a CF card. Depending on the communication density and coverage, your radio system can grow from a single site to a simulcast system or multi-site trunking* system, to match your communication needs.
* Compatible IDAS radio terminals are required for multi-site trunking.
|System||Optional Network/Controller Board|
|Simulcast Conventional||UC-FR5300 #14 (Supplied with a CF-FR5300SC)
and UX-241 GNSS antenna
|Multi-site Conventional||UC-FR5300 #12 (Supplied with a CF-FR5000MC)|
|Single site Trunking||UC-FR5300 #11|
|Multi-site Trunking||UC-FR5300 #13 (Supplied with a CF-FR5000MT)|
D-SUB 25-Pin Accessory Connector
The IC-FR5300 series has a programmable D-SUB 25-pin accessory connector for connecting an external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.
Icom IC-FR5300 50W Output at 50% Duty Cycle or 25W 100% Duty Cycle Operation*
Employing a high performance power amplifier, the IC-FR5300 series provides a reliable 100% duty cycle operation at 25W output. When operated at the high power setting of 50W, the repeater operates with a 50% duty cycle.
* 25 W output power depending on the repeater version. Ambient temperature: 25°CAmbient temperature: 25°C
Icom IC-FR5300 50W Output at 100% Duty Cycle or 100W 50%
When need higher power, the optional UR-PA5000/UR-PA6000 series power amplifier provides 100W output power with a 50% duty cycle and 50W output with 100% duty cycle.
* Ambient temperature: 25°C
Capable of Installing Two RF modules in One Chassis
The IC-FR5300 series has an internal space for installing another RF unit. Two RF modules* can be installed and operated independently. LEDs on the front panel shows the status of both channel.
* Optional UR-FR5300/UR-FR6300 required.
Digital/Analog Mixed Mode and Multiple Tone-Group Using CTCSS, DTCS Tone and RAN
The IC-FR5300 series can receive both analong and digital modes on a channel, and transmit either mode, depending on the programming. It decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/code.
32 Channel Capacity and 5 Programmable Buttons
The 12-digit alphanumeric display, 5 programmable buttons, 32 memory channels and internal speaker enable you to use the repeater as a simple base station, or to check repeater activity. The LCD shows a variety of text and code information.
Icom IC-FR5300 IP Remote Maintenance
When the IC-FR5300 series is connected to an IP network through the optional UC-FR5300 network/controller board, PC programming and IP address setting can be made from a remote location. The SNMP traps and Syslog can be sent to your manager for remote monitoring.
- 19-inch rack mount 2U height low profile
- Receiver voting function improves talkback capability of radio terminals in the field
- RC-FS10 remote communicator software works as a simple dispatch station to communicate with radio terminals through the repeater
- CW ID transmitter
- PTT priority setting (Local Microphone, external PTT or repeater operation)
- 5-Tone decoder* (* For analog mode only)
- DTMF encoder/decoder
- Low voltage alert
Icom IC-FR5300 Rear Panel View
Icom IC-FR5300 Specification
|Frequency coverage||136-174 MHz (USA, EXP, EUR, CAN, AUS)|
|Number of channels||32 channels / 1 zone|
|Channel spacing||6.25/12.5/25 or 7.5/15/30 kHz|
|Type of emission||16K0F3E*1 (25 kHz),|
|14K0F3E (20 kHz, EUR),|
|11K0F3E (12.5/15 kHz, USA),|
|8K50F3E (12.5 kHz),|
|4K00F1E/F1D (6.25/7.5 kHz)|
|Power supply requirement||13.6 V DC (USA, CAN, EXP)|
|13.2 V DC (EUR, AUS)|
|Current drain (at 13.6V DC)|
|Tx High||15.0 A maximum (at 50 W)|
|8.0 A maximum (at 25 W)|
|Rx Stand-by||500 mA (FAN OFF)|
|Max. audio||1900 mA|
|IC-FR5300||483 × 88 × 260 mm, 19.0 × 3.5 × 10.2 in|
|UR-FR5300||176×60×194 mm, 6.9 × 2.4 × 7.6 in|
|IC-FR5300||5.78 kg, 12.7 lb|
|UR-FR5300||2.1 kg, 4.6 lb|
|Operating temperature range||-30℃ to +60℃, –22 °F to +140 °F (USA, CAN, EXP)|
|-25 ℃ to +55 ℃, –13 °F to +131 °F (EUR, AUS)|
*1 25 kHz bandwidth is not available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25 kHz bandwidth.
|RF output power (Hi, L2, L1)||50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions)|
|25 W, 10 W, 5.8 W (EUR, EXP Versions)|
|Spurious emissions||80 dB typ. (TIA-603)|
|0.25 μW (≤ 1 GHz), 1.00 μW (> 1 GHz)|
|(EN301 166, EN300 086)|
|Frequency stability||±1.0 ppm or less|
|±0.1 ppm or less (corrected using GNSS)|
|Audio harmonic distortion||0.9% typ. (AF 1kHz 40% deviation)(TIA-603)|
|1.1% typ. (AF 1kHz 40% deviation)(EN 300 086)|
|FM Hum and Noise||83 dB typ. (W)|
|77 dB typ. (N)|
|Sensitivity||Digital (1% BER)|
|–4.0 dBμV (0.32 μV) emf typ. (EN301 166)|
|Analog (12 dB SINAD)||–119 dBm (0.25 μV) typ. (TIA-603)|
|Analog (20 dB SINAD)||–4.0/–4.0/–1.0 dBμV emf typ. (W/M/N)(EN300 086)|
|Adjacent channel selection|
|Digital||66 dB typ. (EN301 166)|
|Analog||85/80 dB typ. (W/N)(TIA-603)|
|84/83/78 dB typ. (W/M/N)(EN300 086)|
|Spurious response rejection|
|Digital||87 dBμV emf typ. (EN301 166)|
|Analog||85 dB typ.(TIA-603)|
|81 dB typ. (EN300 086)|
|Digital||78 dBμV emf typ. (EN301 166)|
|Analog||81/81 dB typ. (W/N)(TIA-603)|
|75/74/73 dB typ. (W/M/N)(EN300 086)|
|AF output power||3.9 W typ. (at 5% distortion with a 4Ω load)|
Measurements made in accordance with TIA-603, EN300 086 and EN301 166.
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|Low Pressure Storage||500.5 I|
|Low Pressure Operation||500.5 II|
|High Temperature Storage||501.5 I|
|High Temperature Operation||501.5 II|
|Low Temperature Storage||502.5 I|
|Low Temperature Operation||502.5 II|
|Temperature Shock||503.5 I-C|
|Solar Radiation||505.5 I|
|Dust Blowing||510.5 I|
|Shock Functional||516.6 I|
All stated specifications are subject to change without notice or obligation.
Also meets equivalent MIL-STD-810-C, -D and -E.
Measurements made in accordance with TIA-603 (for Analog FM). All stated specifications are subject to change without notice or obligation.
- DC cable power
- Handle kits
