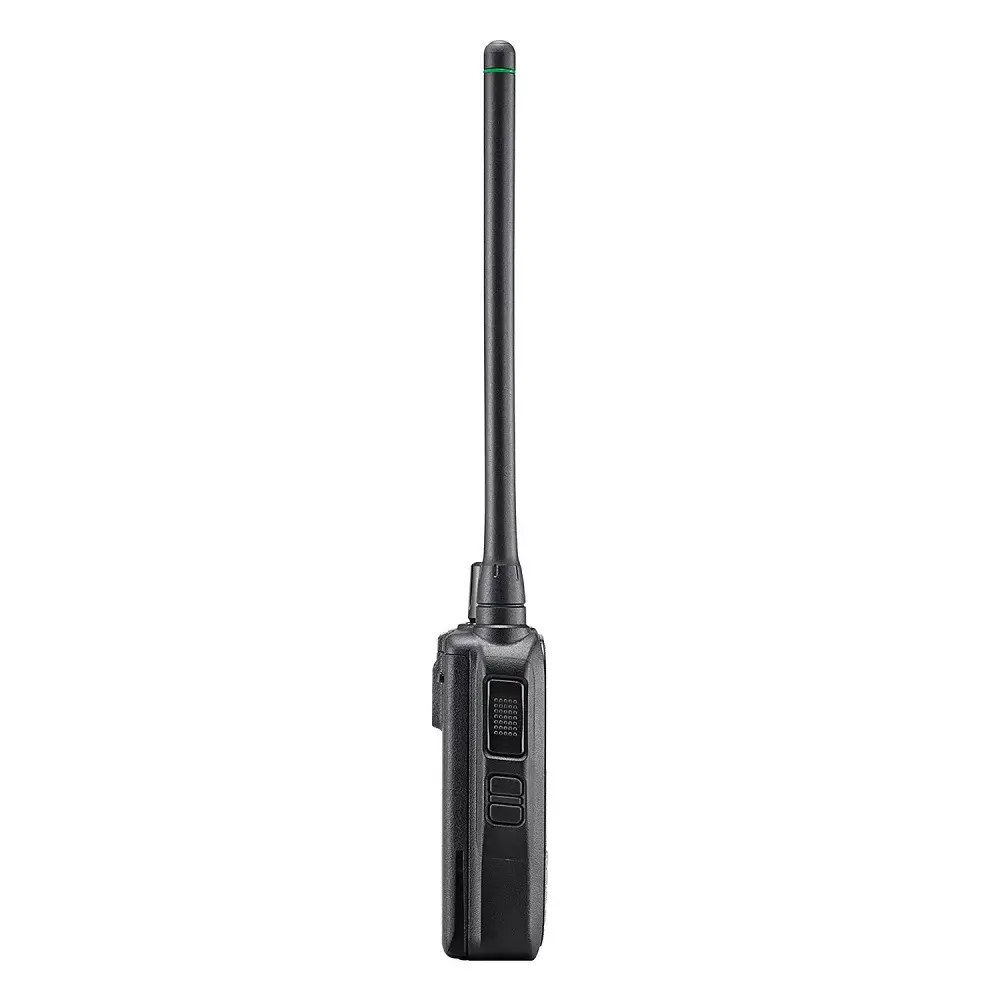

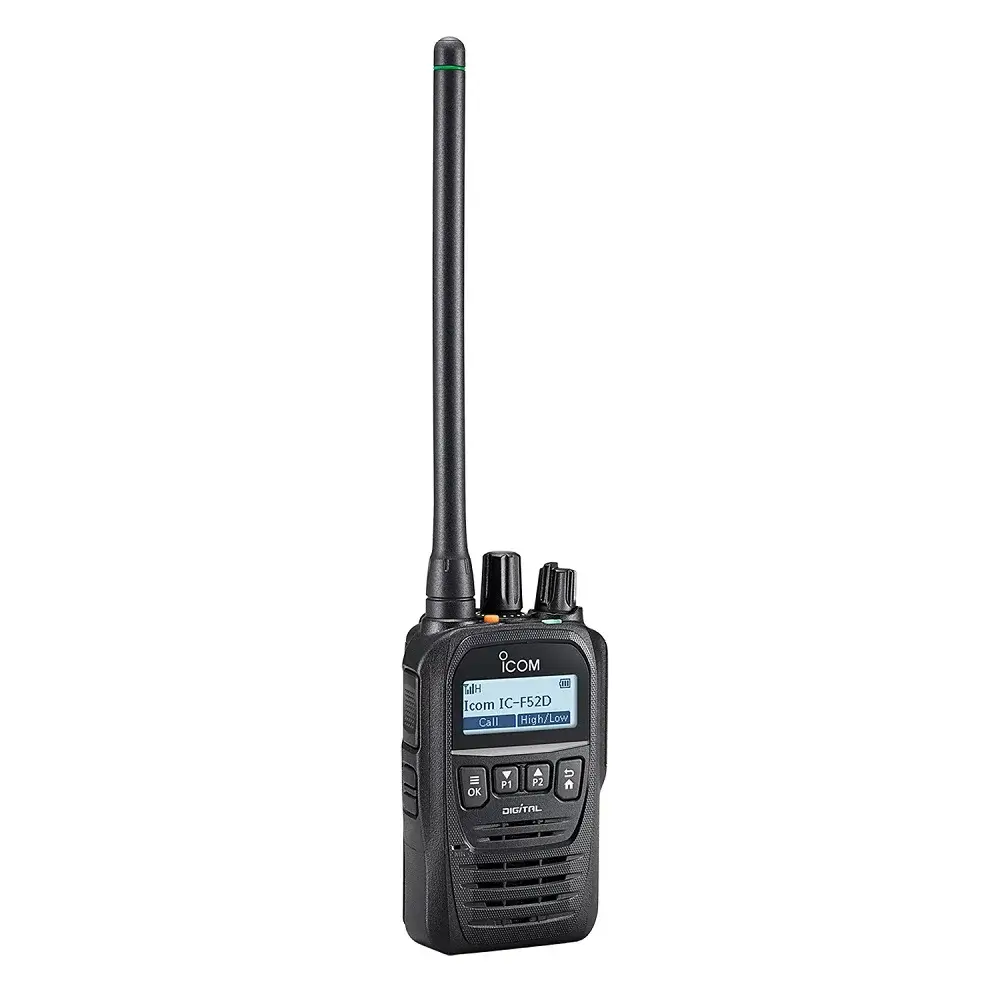

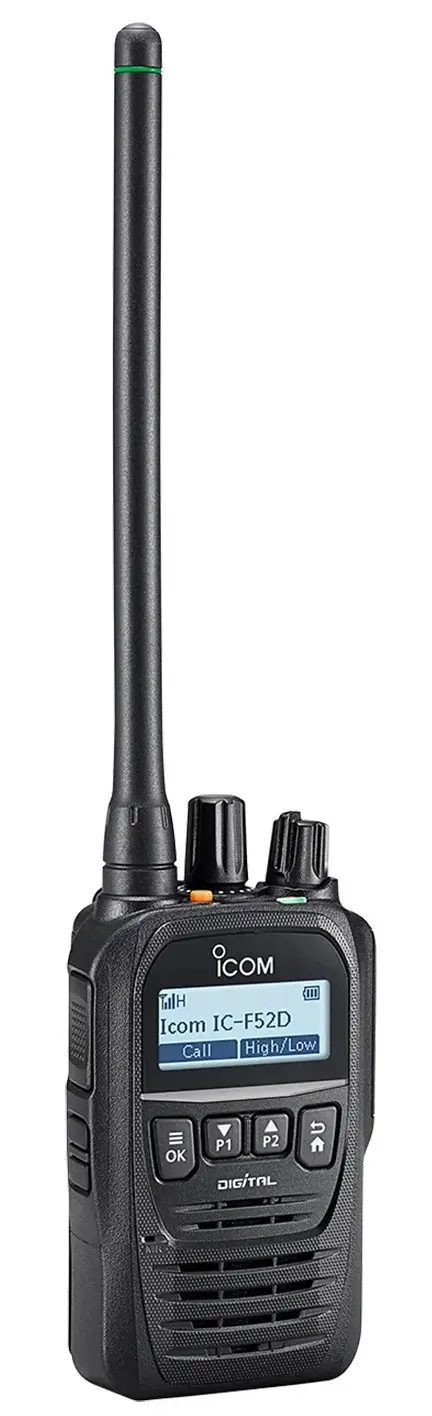

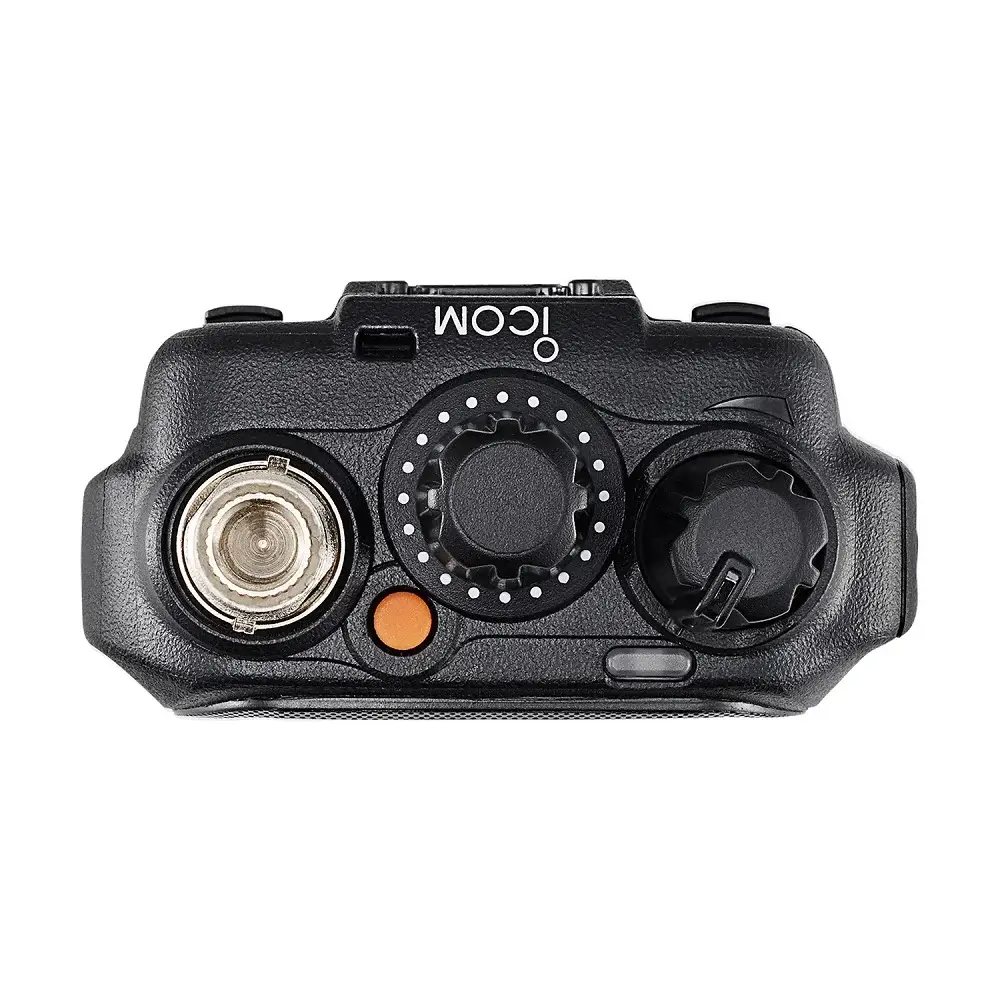

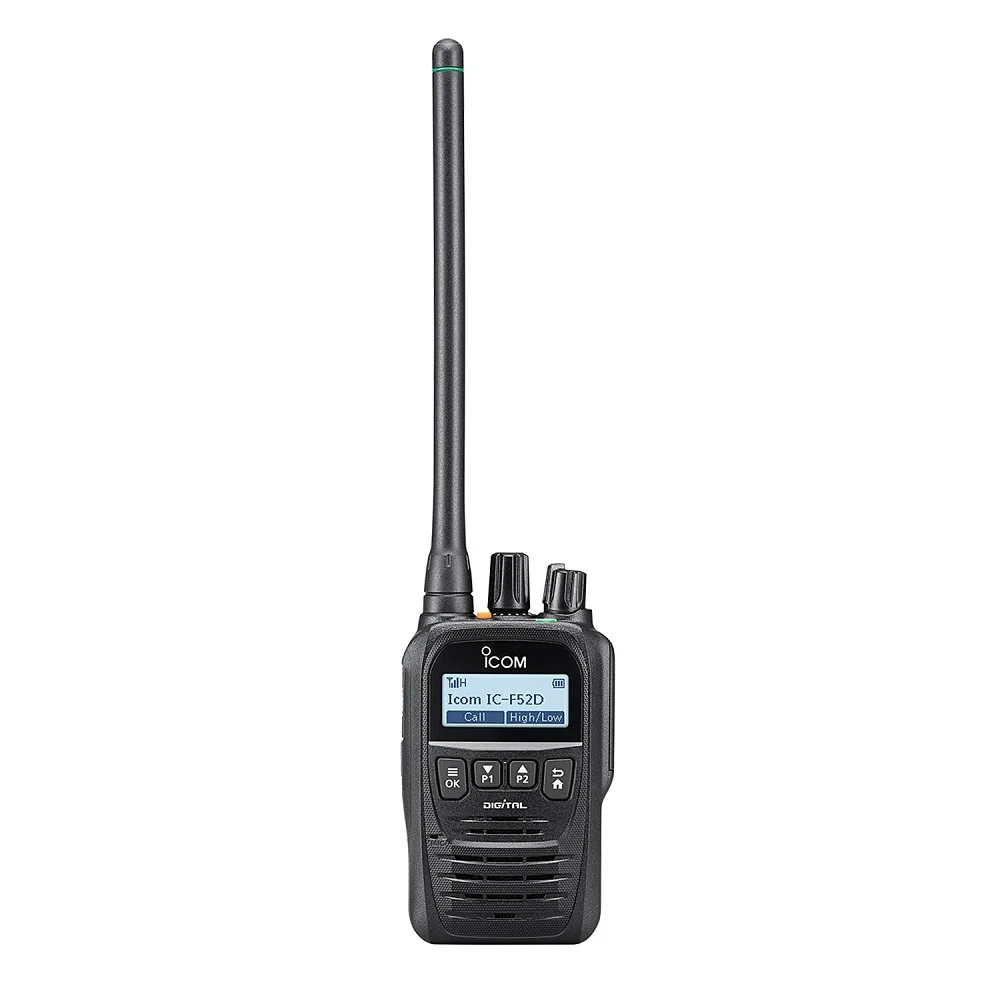

Icom IC-F62D HT Digital UHF
HT Icom IC-F62D menghadirkan keunggulan HT digital, frekuensi 350–400 MHz, 400–470 MHz, 450–512 MHz, atau 450–520 MHz. Dengan tampilan intuitif, teknologi Bluetooth®, dan berbagai fitur canggih untuk keamanan pekerja dan operasi yang handal. Mode operasi serbaguna termasuk NXDN atau dPMR mode konvensional, multi-site konvensional melalui jaringan IP, serta trunking NXDN dan dPMR mode 3. HT Waterproof IP67/66/65/54, kualitas suara optimal, IC-F62D siap mendukung kebutuhan komunikasi profesional.
HT Digital Profesional
HT Digital ProfesionalIC-F62D adalah solusi terdepan untuk komunikasi digital profesional. Dengan rentang frekuensi yang luas dan fitur canggih, HT ini memenuhi kebutuhan komunikasi di berbagai lingkungan.
Mode Operasi Serbaguna Icom IC-F62D
HT Icom IC-F62D mendukung berbagai mode operasi, termasuk NXDN atau dPMR mode konvensional, multi-site konvensional melalui jaringan IP, dan mode trunking NXDN dan dPMR. Fleksibilitas ini memastikan kesiapan dalam berbagai skenario.
- NXDN or dPMR mode 1/2 conventional
- NXDN or dPMR multi-site conventional over IP network
- Single/multi-site trunking NXDN type-D (License key, ISL-UGMTR required)
- dPMR mode 3 trunking (License key, ISL-UGMD3 required. Not available in all regions.)
- 12.5 kHz digital mode (NXDN conventional)
- Analog mode
- Analog/digital mixed operation
Tampilan Intuitif dan Teknologi Bluetooth®
Nikmati pengalaman pengguna yang intuitif melalui layar dot-matrix penuh pada IC-F62D. Teknologi Bluetooth® bawaan memungkinkan koneksi nirkabel untuk fleksibilitas tambahan.
Keamanan Pekerja dan Fungsi Darurat
Keamanan pekerja menjadi prioritas dengan fitur deteksi gerakan, fungsi Man Down, dan Lone Worker. Radio ini dapat mendeteksi situasi darurat dan mengirimkan sinyal darurat secara otomatis.
Over-the-Air Programming (OTAP) dan Manajemen Baterai Canggih
Fungsi OTAP memungkinkan konfigurasi radio yang mudah dan cepat di lapangan. Manajemen baterai cerdas membantu memaksimalkan masa pakai baterai untuk penggunaan yang efisien.
Fungsi-Fungsi Digital yang Menyeluruh
Berbagai fungsi digital meliputi panggilan individu, grup, dan semua panggilan, pembaruan Over-the-Air, dan mode data yang transparan. Semua fitur ini menjadikan IC-F62D sebagai solusi komunikasi yang komprehensif.
- AMBE+2™ vocoder
- OTAP Over-the-Air Programming function (OTAP manager, CS-OTPM1 required)
- Over-the-Air Alias (OAA) sends own name with a call
- Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN type-D trunking)
- Direct mode communication
- Individual, group and all call
- Late entry for group call
- Status call and polling
- Short data messages
- Call alert (NXDN)
- Transparent data mode
Kualitas Suara Optimal dan Fitur Analog Terlengkap
Kualitas suara yang optimal diperoleh melalui vocoder AMBE+2™. Selain fitur digital, HT UHF Icom IC-F62D juga menyediakan berbagai fitur analog seperti CTCSS, DTCS tone, 2-Tone, 5-Tone, MDC functions, dan BIIS 1200.
Spesifikasi Icom IC-F62D
| GENERAL | ||
| IC-F52D | IC-F62D | |
| Frequency coverage* | 136–174 MHz | (NXDN Version) |
| (* Depending on version) | 350–400, 400–470, | |
| 450–512, 450–520 MHz | ||
| (dPMR Version) | ||
| 400–470 MHz | ||
| Number of channels | 512 channels /128 zones | |
| Type of emission* | (NXDN Version) | |
| (* Depending on version) | 16K0F3E*, 14K0F3E, | |
| 11K0F3E, 8K50F3E, | ||
| 8K30F1E/D, 4K00F1E/D | ||
| (dPMR Version) | ||
| 16K0F3E*, 14K0F3E, | ||
| 8K50F3E, 4K00F1E/D | ||
| Power supply requirement | 7.5 VDC nominal | |
| Current drain (approx.) | Tx 1.8 A | |
| Rx 500 mA /170 mA | ||
| (Max. audio (internal SP)/Standby) | ||
| Antenna impedance | 50 Ω | |
| Operating temperature range | −30 °C to +60 °C; | |
| −22 °F to +140 °F | ||
| Dimensions | 56 × 91.5 × 36.5 mm; 2.2 × 3.6 × 1.4 in | |
| (W × H × D; | (With BP-294) | |
| Projections not included) | ||
| Weight (approx.) | 125 g; 4.4 oz (main unit) | |
| 270 g; 9.5 oz (BP-294, MBB-3) | ||
| TRANSMITTER | ||
| IC-F52D | IC-F62D | |
| Output power (Hi, L2, L1) | 5 W, 2 W, 1 W | |
| Frequency stability | ±1.0 ppm | |
| Spurious emissions | 80 dB typ. (USA) | |
| 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR) | ||
| FM Hum and noise | 57 dB typ. (@25 kHz), | 57 dB typ. (@25 kHz), |
| 55 dB typ. (@12.5 kHz) | 56 dB typ. (@12.5 kHz) | |
| (USA) | (USA) | |
| Audio harmonic distortion | 0.4% typ. (AF 1 kHz 40% deviation) | |
| FSK error | 1% typ. (@DVN, DN) | |
| RECEIVER | ||
| IC-F52D | IC-F62D | |
| Sensitivity | ||
| Analog (12 dB SINAD) | 0.23 μV typ. | |
| Analog (20 dB SINAD) | −4.0 dBμV emf typ. | −4.0 dBμV emf typ. |
| (@25 kHz), | (@25 kHz), | |
| −1.4 dBμV emf typ. | −1.1 dBμV emf typ. | |
| (@12.5 kHz) | (@12.5 kHz) | |
| Digital | −5.0 dBμV emf typ. | −4.0 dBμV emf typ. |
| (1% BER) | (0.28 μV typ. ) (@DVN), | (0.32 μV typ. ) (@DVN), |
| −3.0 dBμV emf typ. | −3.0 dBμV emf typ. | |
| (0.35 μV typ. ) (@DN) | (0.35 μV typ. ) (@DN) | |
| Adjacent channel | ||
| Analog | 79 dB typ. (@25/20 kHz), | 76 dB typ. (@25/20 kHz), |
| 77 dB typ. (@12.5 kHz) | 73 dB typ. (@12.5 kHz) | |
| Digital | 70 dB typ. (@DVN), | 66 dB typ. (@DVN), |
| 72 dB typ. (@DN) | 68 dB typ. (@DN) | |
| Spurious response rejection | 76 dB typ. | 78 dB typ. |
| Intermodulation rejection | ||
| Analog | 76 dB typ. (USA) | 74 dB typ. (USA) |
| 68 dB typ. (EUR) | 68 dB typ. (EUR) | |
| Digital | 73 dBμV emf typ. (@DVN)/−40 dBm typ. (@DN) | |
| Audio output power | ||
| Internal SP | 1300 mW typ. (at 5% distortion, 8 Ω load) | |
| External SP | 1000 mW typ. (at 5% distortion, 8 Ω load) | |
| 1300 mW typ. (at 5% distortion, 8 Ω load) with HM-222H* | ||
| Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113. | ||
Applicable U.S. Military Specifications & IP Rating | ||
| Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards. | ||
| Standard | MIL-810 G | |
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
| Also meets equivalent MIL-STD-810-C, -D -E and -F. | ||
| Applicable IP Rating | |
| Ingress Protection Standard | |
| Dust & Water | IP67/66/55/54 |
| Some functions and options will be available in the future. | |
Aksesoris Standar Icom IC-F62D
- Baterai BP-290 Li-ion 2010 mAh IP67 (Discontinued)
- Antena FA-SC01U UHF 350-400 MHz
- Charger BC-219N Desktop Charger
- Adapter BC-123SE
- Belt Clip MBB-3 Alligator Type
Aksesoris Opsional Icom IC-F62D
- Baterai
- Antena
- Charger
- Belt Clip & Leather Case
- Speaker Microphone
- Power Supply & Programming Cables
