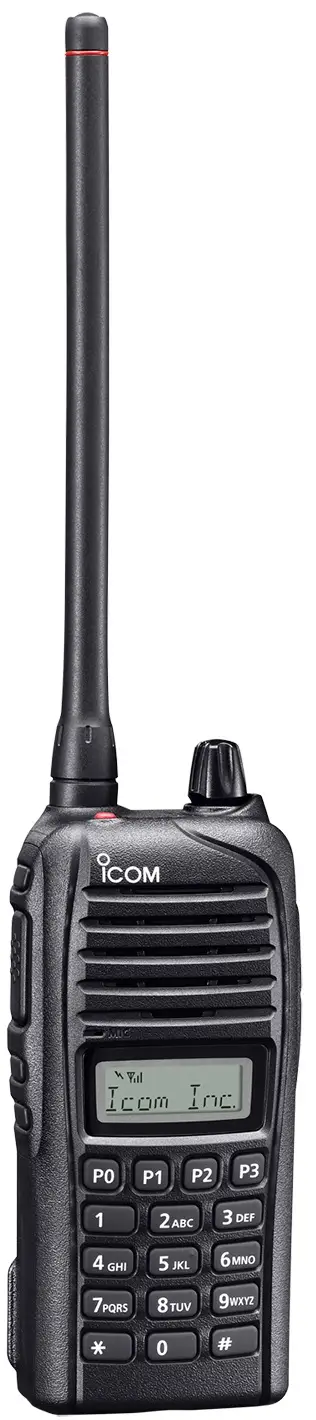

Icom IC-F4230DT
VHF/10-keypad Icom IC-F4230DT VHF/Simple key IC-F4230DS,
UHF/10-keypad IC-F4230DT, UHF/Simple key IC-F4230DS
FEATURE IDAS™ Multi-site Trunking Radio
IDAS™ digital mode operation
ICOM IC-F4230DT series provides NXDN™ CAI-based IDAS digital mode operation.
It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.
IP67 waterproof and dust-tight protection
ICOM IC-F4230DT series provides outstanding protection against water and dust equivalent to IP67.
ICOM IC-F4230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.
Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker.
In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
* Typical with internal speaker
Channel announcement
When you change the operating channel, ICOM IC-F4230DT announces the channel number. Convenient for making radio adjustments without having to look at the radio.
8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller’s name, received message, etc.
Roaming scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
IDAS™ digital mode features
- Up to 500 individual and up to 500 group ID aliases
(Each for single-site/multi-site/conventional) - PTT ID and ANI
- SDM (Short Data Message)
- Status
- RAN (Radio Access Number)
- Radio check (RX)
- Stun/kill/revive (RX)
- Call alert
- Remote monitor (RX)
- Emergency
- Digital voice scrambler
- ATB (All Trunks Busy) ring back
* TX: Transmit, RX: Receive
Other features
- CTCSS/DTCS encoder/decoder*
- Up to 128 memory channel with 8 zones
- Optional HM-168LWP, waterproof speaker-mic
- Low battery alert
- 2-step power save
- Voting scan
- Time out timer
- Talk around function
- Lone worker function
- Surveillance function
- Forced narrow function*
* Analog mode only
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)
Supplied accessories
- Battery pack, BP-232WP
- Belt clip, MB-94R
- Antenna, FA-SC25V
- Desktop charger, BC-160*
- AC adapter, BC-145SA/SE*
Specifications
General | IC-F3230DT / DS | IC-F4230DT / DS | ||
Frequency coverage | 136–174 MHz | 350–400 MHz 400–470 MHz 450–512 MHz 450–520 MHz | ||
Number of channels | 128 channels/8 zones | |||
Channel spacing (Varies according to version) | 25*/12.5/6.25 kHz | |||
Type of emission | 16K0F3E*/11K0F3E/8K50F3E/4K00F1E/F1D | |||
Current drain (approx.) | Tx | 1.3A (High) | ||
Rx | 400mA/100mA (Max. audio/Standby) | |||
Dimensions (W×H×D) (projections not included | 53×120×37 mm; 2.09× 4.72×1.46 in (With BP-232WP) | |||
Weight (approx.) | 340g; 12oz (With MB-94R, BP-232WP & antenna) |
Transmitter | IC-F3230DT / DS | IC-F4230DT / DS |
RF output power (at 7.5V DC) | 5W, 2W, 1W (Hi, L2, L1) | 4W, 2W, 1W (Hi, L2, L1) |
Spurious emissions | 75dB typ. | |
Frequency stability | ±1.0ppm | |
Audio harmonic distortion | 1.0/2.0% typ. (AF 1kHz 40% deviation, W/N) | |
FSK error | 2% typ. | |
FM Hum and Noise | 52/46dB typ. (W/N) | 46/40dB typ. (W/N) |
Receiver | IC-F3230DT / DS | IC-F4230DT / DS |
Sensitivity (Analog 12dB SINAD) (Digital 5% BER) | 0.23μV typ. 0.18μV typ. | 0.24μV typ. 0.18μV typ. |
Adjacent channel selectivity | 77/71/58dB typ. (W/N/D) | 74/67/58dB typ. (W/N/D) |
Spurious response rejection | 90dB typ. | 80dB typ. |
Intermodulation rejection | 75/75/70dB typ. (W/N/D) | 76/76/72dB typ. (W/N/D) |
Audio output power (at 5% distortion, 8Ω load) | 1000mW typ. (Internal SP) 400mW typ. (External SP) |
* | 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth. |
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 G Method, Proc. |
Low Pressure Storage | 500.5 I |
Low Pressure Operation | 500.5 II |
High Temperature Storage | 501.5 I |
High Temperature Operation | 501.5 II |
Low Temperature Storage | 502.5 I |
Low Temperature Operation | 502.5 II |
Temperature Shock | 503.5 I-C |
Solar Radiation | 505.5 I |
Rain Blowing | 506.5 I |
Rain Drip | 506.5 III |
Humidity Induced | 507.5 |
Salt Fog | 509.5 |
Dust Blowing | 510.5 I |
Immersion | 512.5 I |
Vibration | 514.6 I |
Shock Functional | 516.6 I |
Shock Transit Drop | 516.6 IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Ingress Protection Standards | |
Dust & Water | IP67 (Dust-tight and waterproof protection) |
OPTIONS :
BATTERY PACK
- BP-232WP (Li-Ion) 7.4V/2250mAh (min.), 2300mAh (typ.) IP67
BATTERY CASES
- BP-240 AAA(LR03)×6 cells
- BP-261 AA(LR6)×6 cells
CHARGERS
- BC-160 Rapid charger
- BC-171 Regular charger
- BC-197 Rapid multicharger (Use with AD-122)
CHARGER ADAPTER
- AD-122 (Use with BC-197 )
AC ADAPTERS
- BC-147S* 12V/200mA (Use with BC-171)
- BC-157S 12V/7.5A (Use with BC-197)
- BC-123S* 12V/1A (Use with BC-160)
* BC-123/BC-147SA for 120V AC. SE for 230V AC. SV for 240V AC. BC-123SUK for 230V AC.
SPEAKER-MICROPHONES
- HM-158LA
- HM-159LA
- HM-168LWP (IP67)
- HM-166LA
HEADSETS Icom IC-F4230DT
- HS-97 Throat microphone type (Use with VS-4LA)
- HS-95 Behind-the-head type (Use with VS-4LA)
- HS-94 Earhook type with boom microphone (Use with VS-4LA)
PTT SWITCH CABLE Icom IC-F4230DT
- VS-4LA
BELT CLIPS Icom IC-F4230DT
- MB-93 Swivel type
- MB-94R Alligator type
LEATHER BELT HANGERS Icom IC-F4230DT
- MB-96N Swivel type. MB-93 swivel joint supplied
- MB-96F Fixed type
- MB-96FL Longer type
CIGARETTE LIGHTER CABLE Icom IC-F4230DT
- CP-23L (For use with BC-160)
CHARGER BRACKET Icom IC-F4230DT
- MB-130 For use with BC-160
DC POWER CABLE Icom IC-F4230DT
- OPC-656 12–20V DC CABLE (Use with BC-197)
ANTENNAS Icom IC-F4230DT
- FA-SC25V 136-150MHz
- FA-SC55V 150-174MHz
- FA-SC25U 400-430MHz
- FA-SC57U 430-470MHz
- FA-SC72U 470-520MHz
CUT ANTENNAS Icom IC-F4230DT
- FA-SC61VC 136-174MHz
- FA-SC61UC 380-520MHz
STUBBY ANTENNAS Icom IC-F4230DT
- FA-SC56VS 150-162MHz
- FA-SC57VS 160-174MHz
- FA-SC73US 450-490MHz
HIGH GAIN ANTENNAS Icom IC-F4230DT
- FA-SC63V 155-165MHz
- FA-SC62V 150-160MHz
