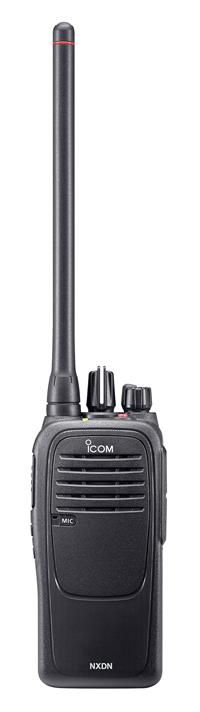

Icom IC-F1000D
Icom IC-F1000D can program Type-D single- site trunking and digital conventional modes as well as analog mode per channel. The IDAS digital mode employs 4-level FSK modulation and the NXDN™ common air interface, offering true 6.25kHz spectrum efficiency, higher security and better audio clarity – even at the fringes of the communication range.
The following IDAS features are programmable:
- PTT ID (TX)
- Individual/group calls
- Radio check (RX)
- Stun/Kill/Revive (RX)
- Remote monitor (RX)
- Emergency (TX)
- Call alert (RX)
- Digital voice scrambler (15-bit)
- Status Call (Power ON/OFF status and GPS request)
- Voting scan for multi-site conventional operation TX: Transmit, RX: Receive
Intelligent Emergency Functions
To assist in worker safety, the IC-F1000D/F2000D has three emergency related functions: motion detection, man down and lone worker functions. If one of these functions are activated, the transceiver automatically enters an emergency phase and starts counting down to send an emergency signal. The built-in motion sensor detects its position and states motion and non-motion.
IP67 Waterproof and Dust-tight Protection
While the body is compact, the IC-F1000D/ F2000D has rugged construction providing superior protection against water (1m depth for 30 minutes), dust, sand, mud and other objects. The radio is also tested to MIL-STD 810 specifications. It can withstand harsh use.
Slim, Compact and Lightweight
The IC-F1000D/F2000D has a compact 52.2×111.8×30.3mm body and weighs only 260g (with BP-280 battery pack and belt clip). It’s easy to carry around anywhere.
Optional GPS Speaker-Microphone
With the optional GPS speaker-microphone, HM-171GPW, GPS position data can be attached to a voice or data transmission such as responding a GPS request status call.
Easy to Hear in a Noisy Environment
The large 36mm speaker of the transceiver provides clear 800mW* audio. The built-in BTL amplifier increases the audio output power and delivers loud and intelligible voice to a radio operator working in noisy environments.
*Typical with internal speaker.
Built-in 2-Tone and 5-Tone (Analog mode)
The IC-F1000D/F2000D has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capability for analog mode group communication and selective calling. The IC-F1000D/F2000D can be used as an analog transceiver ready for future digital migration.
Long-Lasting Battery Pack
The large capacity waterproof battery pack, BP-280 (2400mAh typ.), provides 18 hours of operating time*. The supplied rapid charger BC-213* charges the BP-280 in 3.5 hours.
*Tx: Rx: Standby=5:5:90. Power save function ON. BC-213 may be not supplied depending on version.
Other features
- DTMF autodial memories
- MDC 1200 functions: PTT ID, emergency call, radio check (RX) and stun/revive (RX)
- Surveillance function
- Escalating alarm
- VOX capability for hands-free operation
- Channel announcement function
- Red emergency switch on the top panel
Supplied accessories
May vary depending on version.
- Battery pack, BP-280
- Belt clip, MB-133
- Antenna
Specifications
Specification | IC-F1000D |
---|---|
Frequency coverage (MHz) | 136–174 |
Number of channels | 16 |
Type of emissions | 16K0F3E, 11K0F3E, 8K50F3E, 4K00F1E/D |
Channel spacing | 30KHz, 15KHz, 6.25KHz |
Power supply requirement | 7.5V DC nominal |
Current drain – TX High | 1.3A |
Current drain – RX Max. audio/Standby | 400mA (Internal SP) / 110mA |
Antenna impedance | 50Ω |
Operating temperature range | -30°C to 60°C; –22°F to +140°F (radio specs) |
Dimensions (W×H×D) (Projections not included) | 52.2×111.8×30.3 mm (With BP-280) |
Weight | 260g (With MB-133 and BP-280) |
Output power – High/L2/L1 | 5W/2W/1W |
Max. frequency deviation | ± 5.0kHz/±2.5kHz (Wide/Narrow) |
Frequency stability | ±1.0ppm |
Spurious emissions | 70dB min. |
FM hum and noise – Wide/Narrow | 46/40dB typ. |
Audio harmonic distortion – Wide/Narrow | 2.0%/1.1% typ. |
FSK error | 5.0% max. |
Ext. microphone connector | 3-conductor 2.5mm (1/10″)/2.2kΩ |
Sensitivity (Analog/Digital) | 0.21μV (Analog)/-8dBμV emf (Digital) |
Adjacent channel selectivity – Wide/Narrow/Digital | 77/69/59dB typ. |
Spurious response | 80dB min. |
Intermodulation – Wide/Narrow/Digital | 75/75/71dB typ. |
Hum and noise – Wide/Narrow | 47/43dB typ. |
Ext. speaker connector | 2-conductor 3.5mm (1/8″)/8Ω |
Audio output power (at 5% distortion) – Internal SP (w/12Ω load) | 800mW typ. |
Audio output power (at 5% distortion) – External SP (w/8Ω load) | 400mW typ. |
Measurements made in accordance with TIA-603.
All stated specifications are subject to change without notice or obligation.
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
Ask your dealer if you need 25kHz bandwidth.
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
Standard | MIL 810 F | |
Method | Proc | |
Low Pressure | 500.5 | I, II |
High Temp. | 501.5 | I, II |
Low Temp. | 502.5 | I, II |
Temp. Shock | 503.5 | I |
Solar Radiation | 505.5 | I |
Rain Blowing/Drip | 506.5 | I, III |
Humidity | 507.5 | – |
Salt Fog | 509.5 | – |
Dust Blowing | 510.5 | I |
Immersion | 512.5 | I |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Ingress Protection Standard | |
Dust & Water | IP67 (Dust-tight and waterproof protection) |
Aksesoris Radio HT Icom IC-F1000D
Microphone
- Microphone Icom HM-171GPW (GPS speaker microphone with a waterproof connector. IP67 protection)
- Microphone Icom HM-168LWP (Waterproof speaker microphone with a waterproof connector. IP67 protection)
- Microphone Icom HM-159LA (Speaker microphone with a 3.5 mm earphone jack)
- Microphone Icom HM-158LA (Compact speaker microphone with a 3.5 mm earphone jack)
Baterai
- Baterai Icom BP-278 (1190 mAh (typ.), 1130 mAh (min.) rechargeable Li-ion battery)
- Baterai Icom BP-279 (1570 mAh (typ.), 1485 mAh (min.) rechargeable Li-ion battery)
- Baterai Icom BP-280 (2400 mAh (typ.), 2280 mAh (min.) rechargeable Li-ion battery)
Charger Baterai
- Charger Icom BC-213 (Desktop charger the BP-278, BP-279 or BP-280)
- Charger Icom BC-214 (Multi-charger up to six radios and/or batteries)
Adaptor Charger
Antena
Antena Fleksibel
- Antena Icom FA-SC25V (136–150 MHz)
- Antena Icom FA-SC55V (150–174 MHz)
- Antena Icom FA-SC25U (400–430 MHz)
- Antena Icom FA-SC57U (430–470 MHz)
- Antena Icom FA-SC72U (470–520 MHz)
- Antena Icom FA-SC01U (350–400 MHz)
- Antena Icom FA-SC02U (330–380 MHz)
Antena Stubby
- Antena Icom FA-SC26VS (136–144 MHz)
- Antena Icom FA-SC27VS (142–150 MHz)
- Antena Icom FA-SC56VS (150–162 MHz)
- Antena Icom FA-SC57VS (160–174 MHz)
- Antena Icom FA-SC26US (400–450 MHz)
- Antena Icom FA-SC73US (450–490 MHz)
Antena High Gain
Antena Cut-Type
- Antena Icom FA-SC61VC (136–174 MHz)
- Antena Icom FA-SC61UC (380–520 MHz)
Power Supply
- Icom CP-23L (Vehicle charger cable for use with the BC-213)
- Icom OPC-656 (DC power cable for use with the BC-214)
Charger Bracket
- Bracket Icom MB-130 (Charger bracket for use with the BC-213)
Belt Clip
- Belt Clip Icom MB-133 (Alligator belt clip)
Programming Software dan Cable
- Icom CS-F2100D (Programming software)
- Icom OPC-478UC (USB type radio programming cable)
