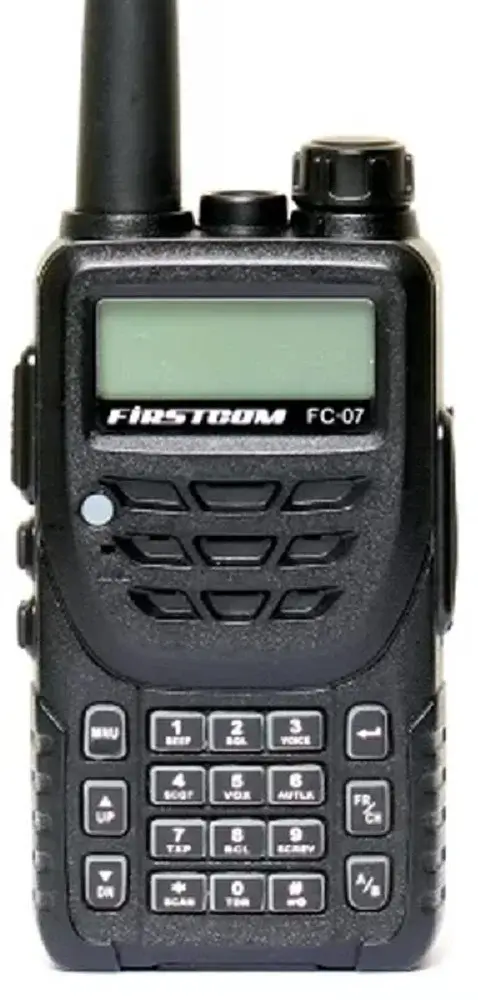

Firstcom FC-07

Handy Talky Firstcom FC-07

Fitur HT Firstcom FC-07

• Main Functions
• Frequency range : VHF 134-176MHz
• 128 memory channels
• CTCSS/DCS scaning, ANI Code
• Standby backlight color setting
• Tx backlight color setting
• Rx backlight color setting
• FM radio , can store up to 10 radio stations
• Multi-functional keypad lock
• Wide/narrow bandwidth protection
• DTMF Function
• Channnel name setting
• Battery 1800mA (Polymer Li-ion)

Specifications

Frequency 134-176MHz
Channel No : 128
Channnel spacing : 5,6,25,10,12.5,25
Antenna impedance : 50O (high gain antenna)
Mode of operation : simplex or semi-duplex
Operating voltage : 7.5V DC
Working teperature : -20?~+60?
Dimension          : 110*57*33 mm
Weight : 195g
Transmitter
Output power : 1W/2W/5W
Current : ?1.6A
Maximum deviation : <5KHz / <2.5KHz
intermediation sensitivity : < 15mV
intermediation distortion : ?5%
Spurious radiation : 7.5µW
Adjacent channel power : ?66dB(wideband)
Modulation mode : 16fF3E(wideband)
Receiver
RF sensitivity : < 0.15µ V 12dB S/N
Audio distortion : 5%
Audio power : 40MW
Intermediation : 60dB(wideband)
Selectivity : 65dB(wideband)
Spurious rejection : ?55dB
Blocking : 85dB
