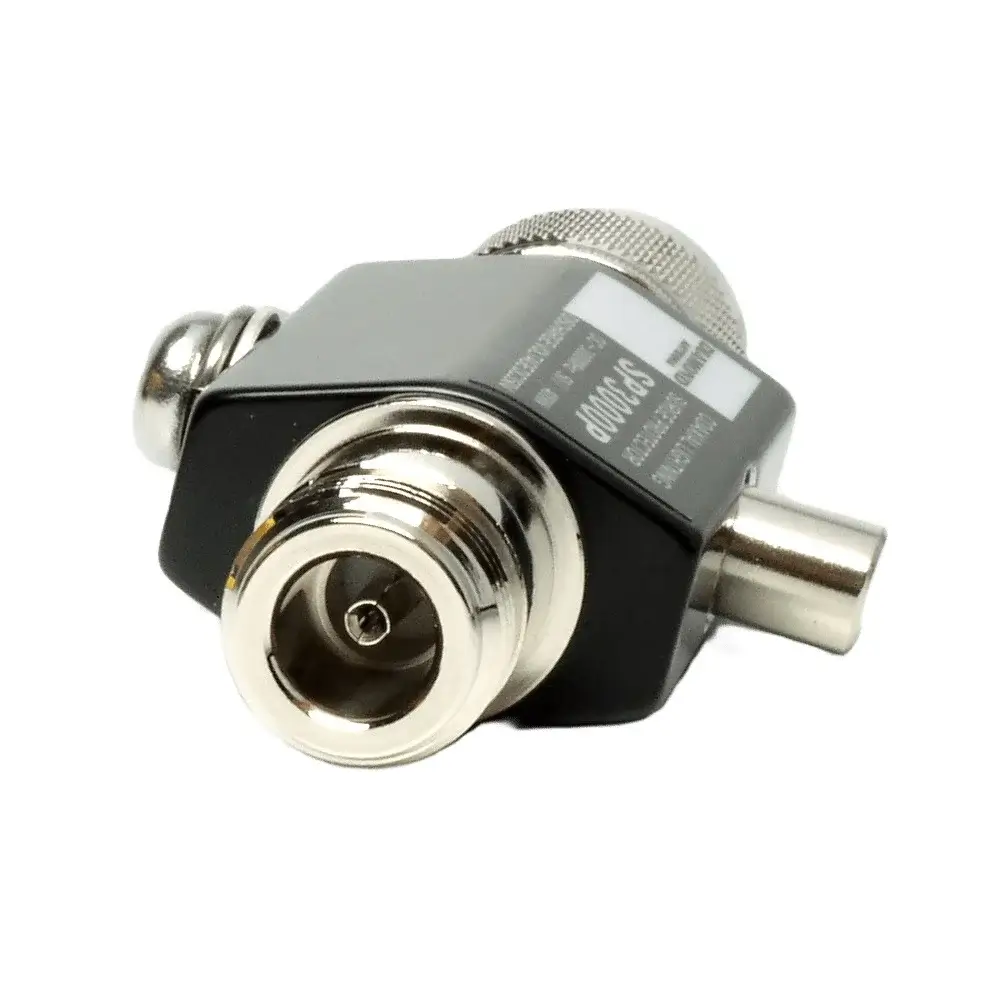

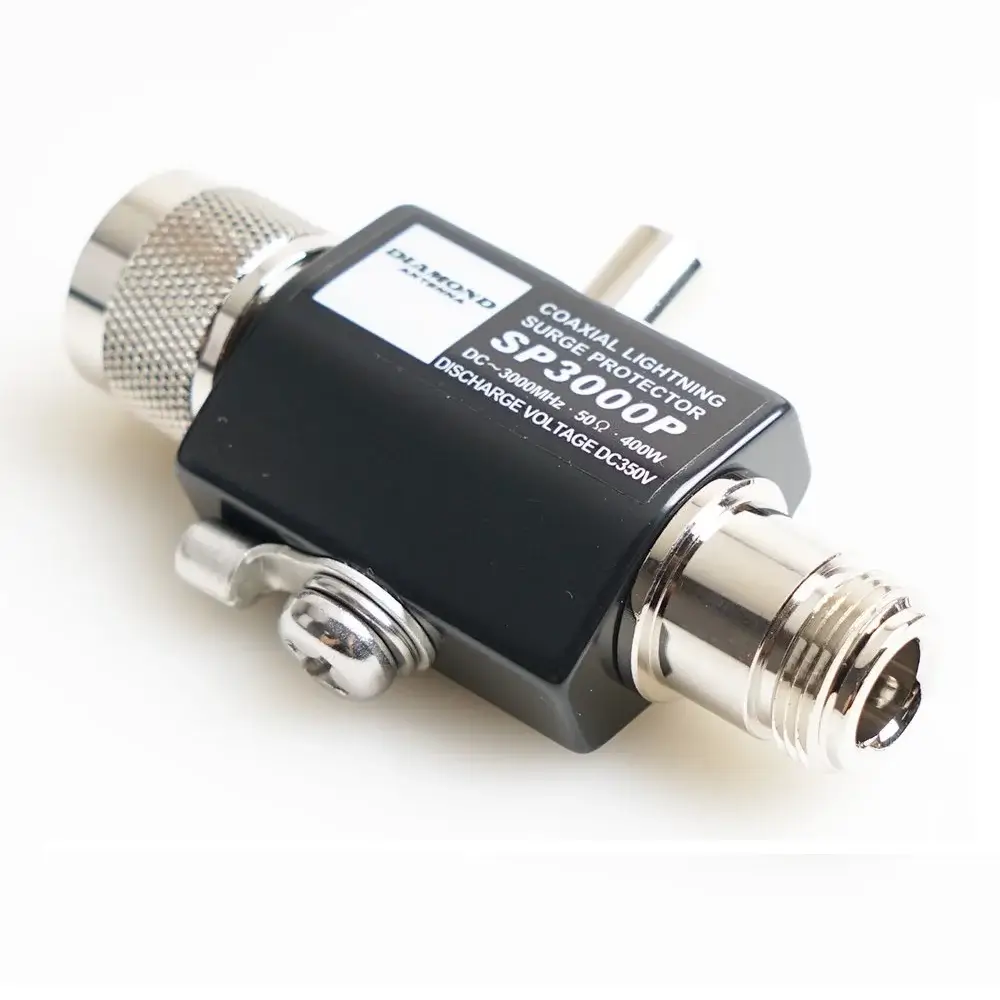

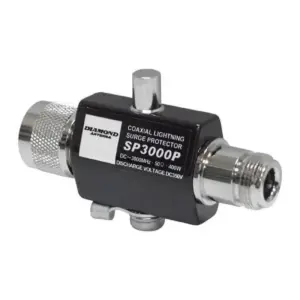

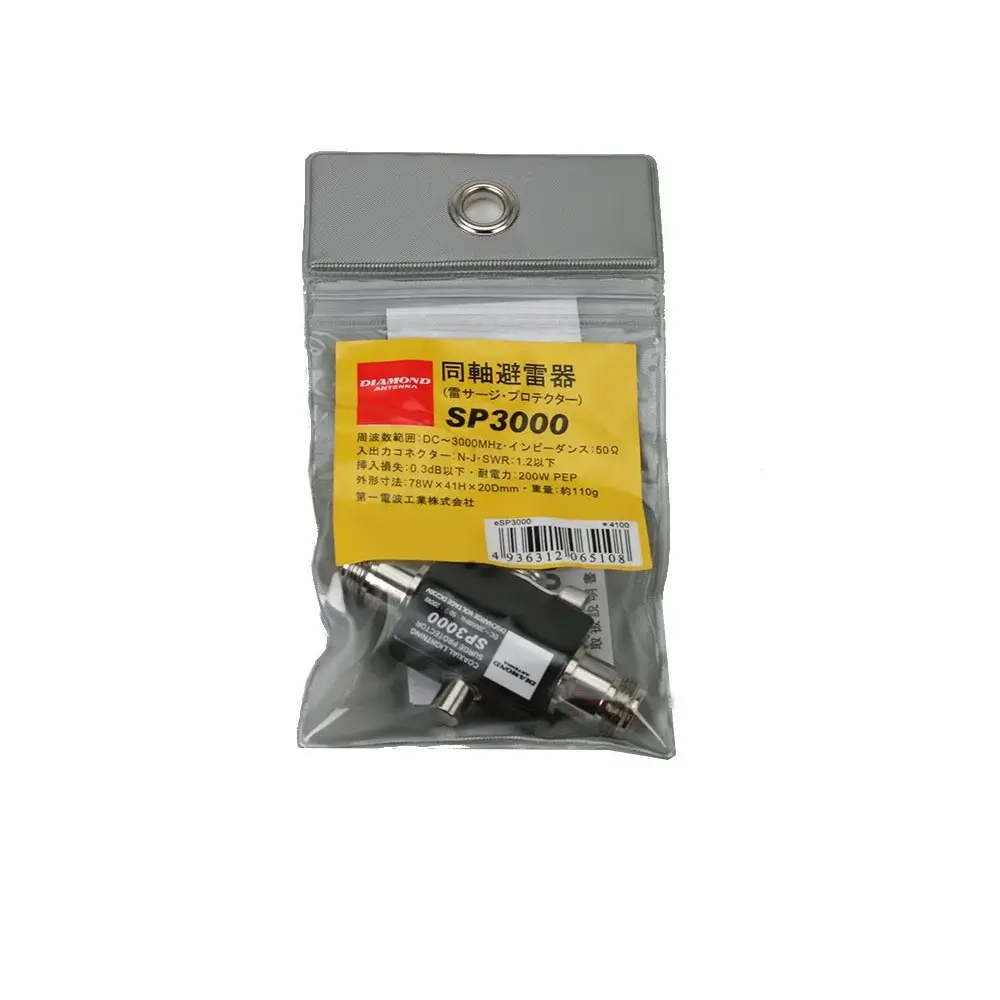

Diamond SP3000P

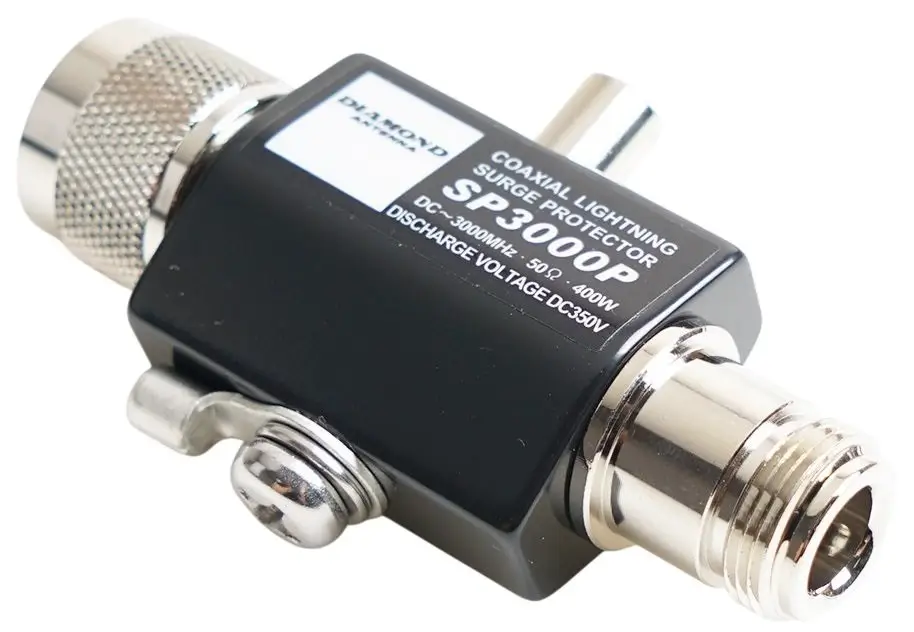

Arrester Diamond SP3000P
Produk : arrester
Merk : Diamond
Tipe : SP3000P
Spesifikasi :
| Fitur | Spesifikasi |
|---|---|
| Frequency Range | DC 3,000 MHz |
| SWR | Less than 1.2:1 |
| Insertion Loss | Less than 0.3 dB |
| Max Power Rating | 400w PEP |
| Connector | Type N female and Type N male |
| Impulse Wave Discharge Voltage | 1000v |
| Impulse Wave Discharge Capacity | 6000A |
| Impulse Wave Retention Discharge Capacity | DC350v 20% |
| Insulating Resistance DC100v | Over 10,000 M ohms |
| Weight | 110 g |
| Dimensions | 77W x 41H x 21D mm |
