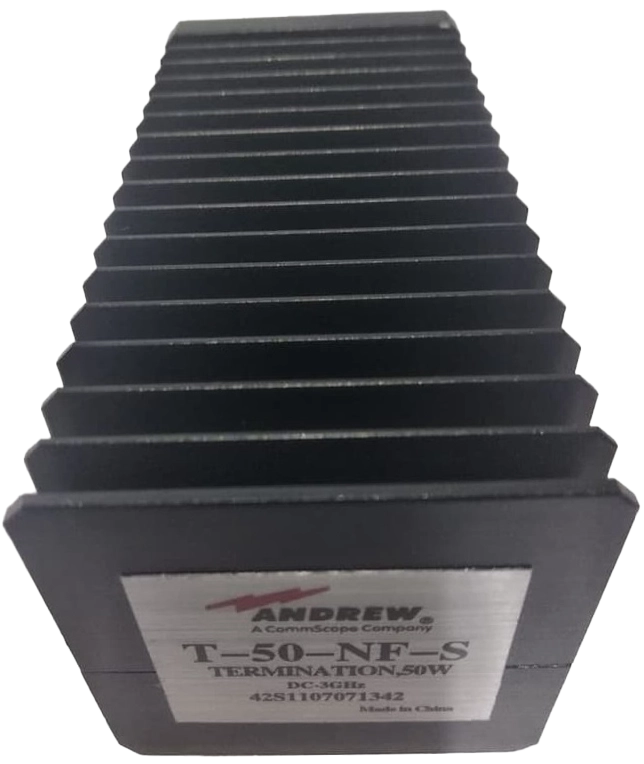

Commscope T-50-NF-S
Commscope T-50-NF-S adalah dummy load berkualitas tinggi untuk rentang frekuensi 0–3000 MHz. Dummyload ini dapat digunakan di dalam ruangan maupun di luar ruangan. Konektor N Female-nya dilengkapi dengan pelapisan kontak dalam berbahan silver untuk konduktivitas listrik dan mengurangi resistansi.
Sementara itu, lapisan kontak luar dummy load ini menggunakan trimetal agar tahan korosi dan aus sehingga meningkatkan umur pakai perangkat.
Spesifikasi
| Product Classification | |
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
| Product Type | Termination Load |
| General Specifications | |
| Device Type | Termination Load |
| Application | Indoor/Outdoor |
| Color | Black |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
| Dimensions | |
| Height | 87 mm / 3.425 in |
| Width | 110 mm / 4.331 in |
| Length | 233 mm / 9.173 in |
| Electrical Specifications | |
| 3rd Order IMD | -150 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Return Loss, minimum | 19 dB |
| Average Power, maximum | 50 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 0 – 3000 MHz |
| VSWR | 1.25 |
| Environmental Specifications | |
| Operating Temperature | -35 °C to +50 °C (-31 °F to +122 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Packaging and Weights | |
| Height, packed | 125 mm / 4.921 in |
| Width, packed | 185 mm / 7.283 in |
| Length, packed | 330 mm / 12.992 in |
| Volume | 763000 mm³ / 46.561 in³ |
| Weight, gross | 3.71 kg / 8.179 lb |
| Weight, net | 2.78 kg / 6.129 lb |
