Commscope CNT-400 by Amphenol

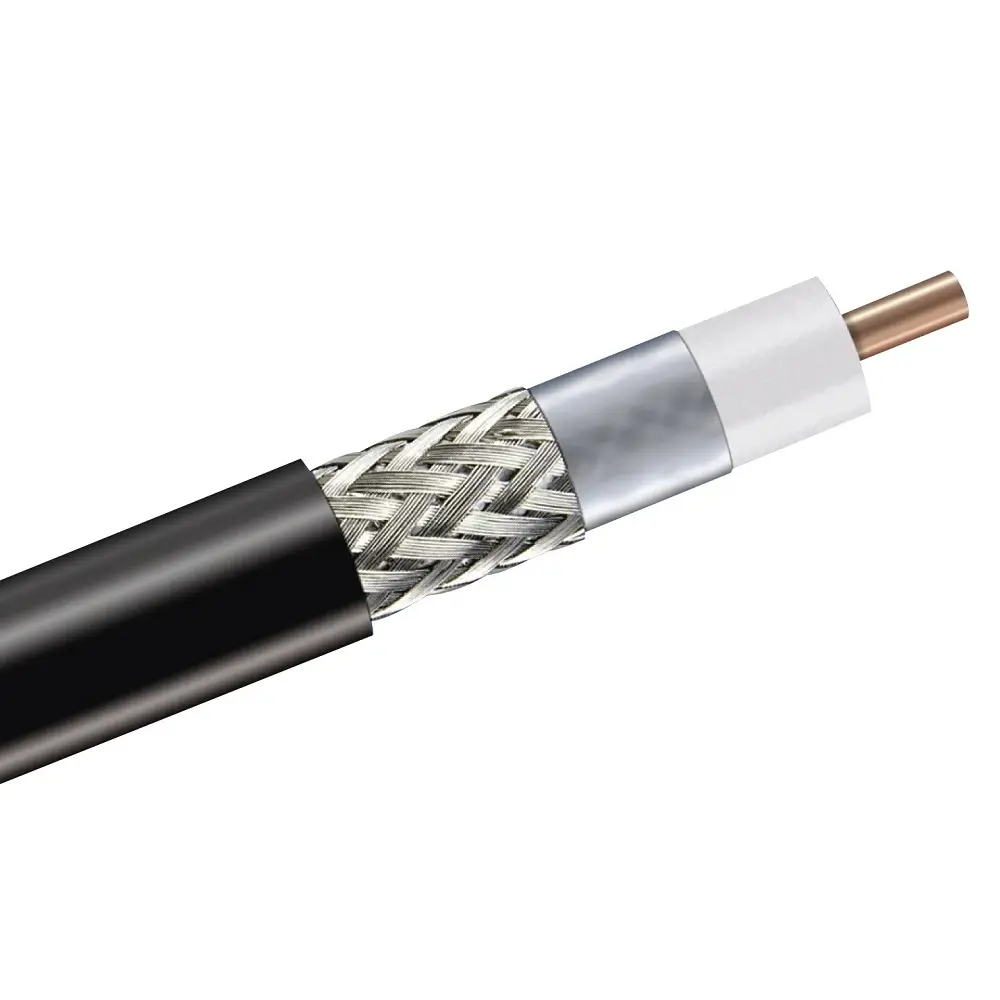

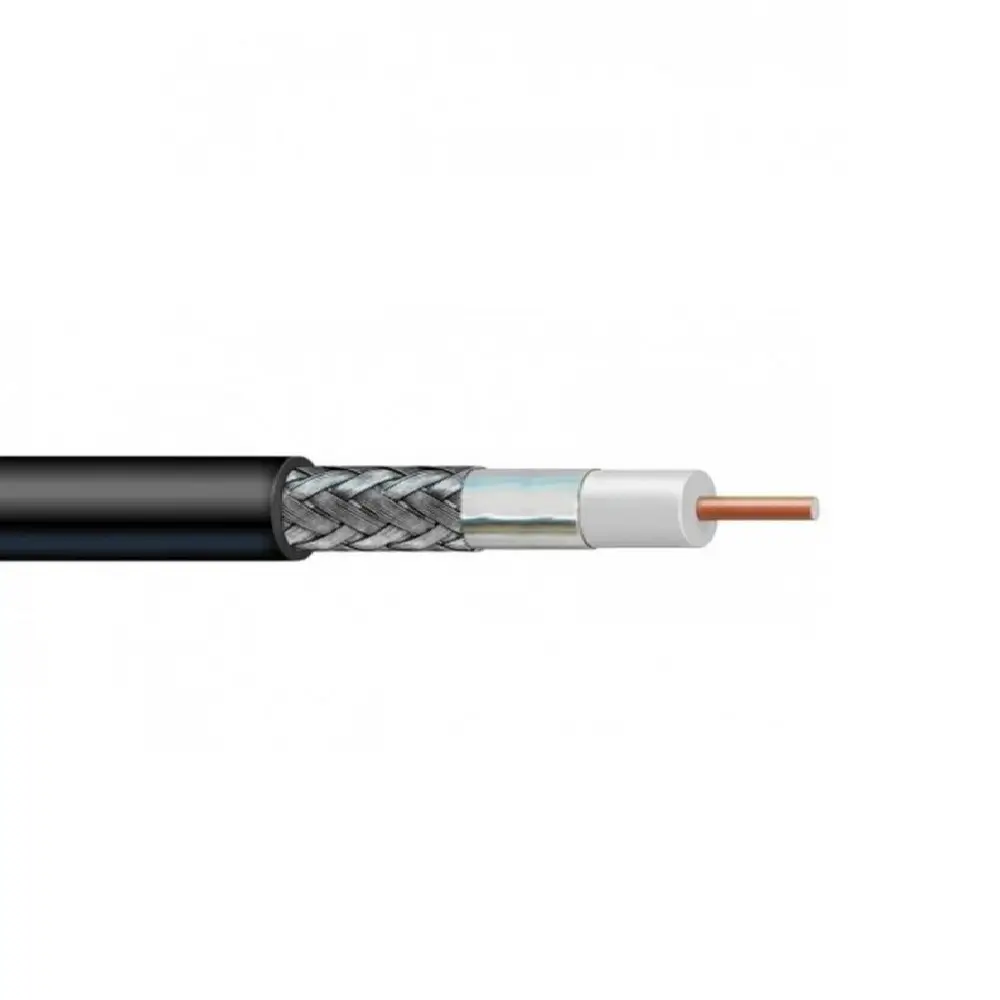

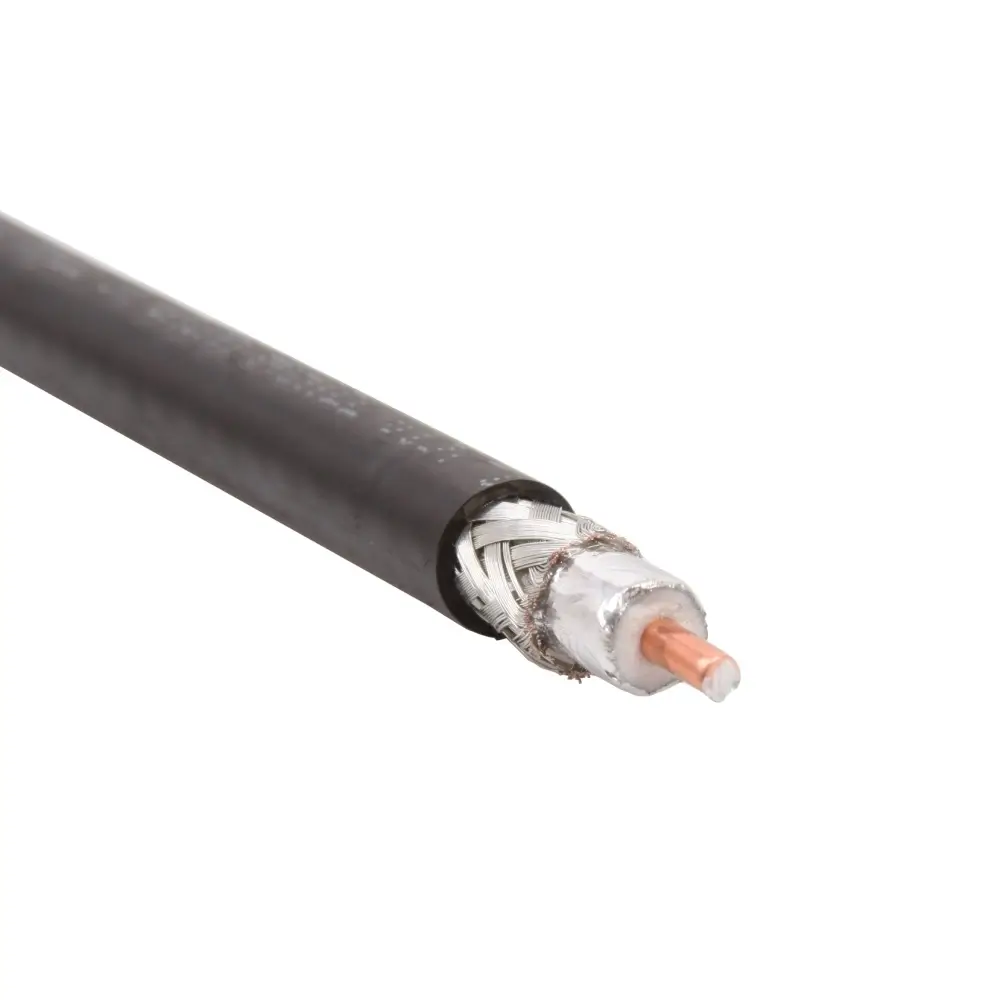

Commscope CNT-400 adalah kabel koaksial dengan impedansi 50 Ohm yang digunakan untuk mengalirkan sinyal frekuensi tinggi. Kabel antena ini memiliki lapisan luar berbahan PE (Polietilena) berwarna hitam yang membuatnya lebih tahan cuaca dan kondisi lingkungan.
Kabel antena original dari Amphenol ini cocok dipakai di sistem radio komunikasi, antena, jaringan nirkabel, dan instalasi lain. Material yang digunakan juga dibuat untuk menjaga efisiensi dan memperpanjang usia pemakaian kabel.
Spesifikasi
| Product Classification | |
| Product Type | Braided coaxial cable |
| Product Brand | CNT® |
| Product Series | CNT-400 |
| General Specifications | |
| Braid Coverage | 90% |
| Cable Type | CNT-400 |
| Jacket Color | Black |
| Dimensions | |
| Diameter Over Dielectric | 7.24 mm | 0.285 in |
| Diameter Over Jacket | 10.29 mm | 0.405 in |
| Diameter Over Tape | 7.391 mm | 0.291 in |
| Inner Conductor OD | 2.74 mm | 0.108 in |
| Outer Conductor OD | 8.08 mm | 0.318 in |
| Nominal Size | 0.400 in |
| Electrical Specifications | |
| Cable Impedance | 50 ohm |
| Capacitance | 78 pF/m | 23.774 pF/ft |
| dc Resistance, Inner Conductor | 4.69 ohms/km | 1.43 ohms/kft |
| dc Resistance, Outer Conductor | 5.61 ohms/km | 1.71 ohms/kft |
| dc Test Voltage | 2500 V |
| Jacket Spark Test Voltage (rms) | 4000 V |
| Maximum Frequency | 16.2 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 16 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 85% |
| Material Specifications | |
| Braid Material | Tinned copper |
| Dielectric Material | Foam PE |
| Jacket Material | Non-halogenated PE |
| Inner Conductor Material | Copper-clad aluminum wire |
| Shield Tape Material | Aluminum |
| Mechanical Specifications | |
| Minimum Bend Radius, single Bend | 25.4 mm | 1 in |
| Tensile Strength | 73 kg | 160.937 lb |
| Bending Moment | 0.7 N-m | 6.196 in lb |
| Flat Plate Crush Strength | 0.7 kg/mm | 39.198 lb/in |
| Environmental Specifications | |
| Installation temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature | -70°C to +85°C (-94°F to +185°F) |
| Packaging and Weights | |
| Cable weight | 0.1 kg/m | 0.067 lb/ft |
