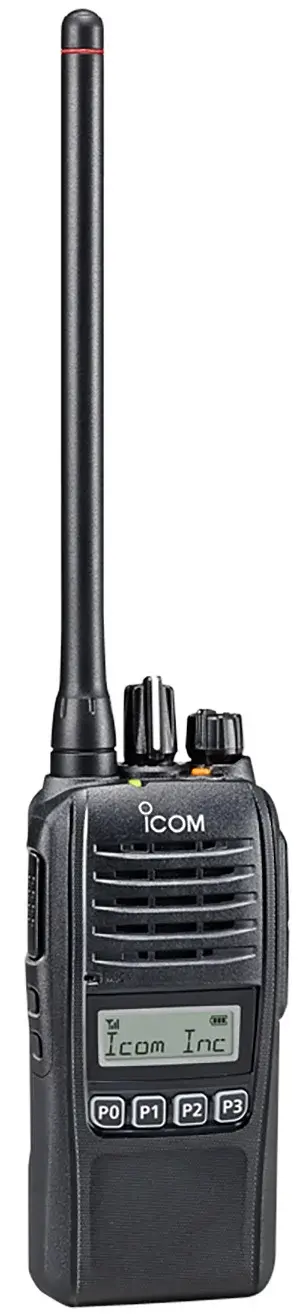

IC-F1000S
DISCONTINUED
Icom IC-F1000S radio profesional dari ICOM dengan simple keypad, tahan terhadap air dengan suara jernih
ICOM IC-F1000S Tahan Air Non Keypad
Icom IC-F1000S Simple Keypad dirancang tahan air dan simpel sehingga handy talky ini mudah digunakan pada segala kondisi.
ICOM IC-F1000S punya Sensor Gerak
Dengan built -in sensor gerak , IC-F1000S terdeteksi posisi, keadaan gerak dan non - gerak dan dapat mengirim sinyal darurat . Fungsi gerak dapat mendeteksi jika transceiver bergerak atau gemetar , misalnya, selama pengejaran
Kejernihan Audio ICOM IC-F1000S
ICOM IC-F1000S dengan speaker 36mm memberikan audio yang sangat jernih 800 mW * Built -in amplifier BTL memberikan suara kuat sehingga dapat dengan mudah dipahami oleh pemegang radio ini walaupun dilingkungan yang sangat berisik
* Khas dengan speaker internal
ICOM IC-F1000S dengan Voice Scrambler
Built -in pengacak suara inversi menyediakan percakapan aman . Sampai dengan 16 kode yang dipilih .
14 Jam beroperasi dan Battery Waterproof / tahan air
Dibuat dari bahan Li - Ion Battery , BP - 279 ( 7.2V DC , 1485mAh ) , menyediakan 14 jam * waktu operasi .
* Tx : Rx : Standby = 5:5:90 . Fungsi Hemat daya ON .
Tenang Stand- by dan Lebih
ICOM IC - F1000 memiliki built-in 2 - Tone , 5 - Tone , CTCSS dan DTC sinyal kemampuan untuk komunikasi kelompok dan panggilan selektif ..
MDC 1200 Kompatibel
Fitur MDC berikut diprogram .
PTT ID
Darurat ( ada transmisi ACK )
Radio cek ( RX only)
Stun / Bangkit ( RX only)
Mengirimkan pesan status ( tipe LCD saja)
100 alias tabel ( tipe LCD saja)
Ketika Anda memutar kenop channel , radio membunyikan channel .
Nyaman untuk membuat penyesuaian radio tanpa harus melihat radio .
Fitur Lain
8 DTMF kenangan autodial
BIIS PTT ID dan panggilan darurat
" Tombol Shift " fungsi meningkatkan jumlah tugas kunci yang dapat diprogram
fungsi Surveillance
meningkatnya alarm
Opsional HM - 168LWP , tahan air speaker - mic
Aksesoris ICOM IC-F1000S
Baterai, BP - 279
Desktop charger , BC - 213
Adaptor AC , BC - 123S
Klip sabuk , MB - 133
antena
SPESIFIKASI ICOM IC-F1000S
IC-F1000S |
| |||
---|---|---|---|---|
Frequency coverage (Varies according to version) | USA |
136–174MHz
|
||
EXP | ||||
Number of channels | IC-F1000 |
16 channels
|
||
|
||||
Type of emission |
16K0F3E*/11K0F3E
|
|||
Channel spacing |
12.5/25kHz
|
|||
Power supply requirement |
7.5V DC nominal
|
|||
Current drain | Tx High |
1.3A
|
||
Rx | Stand-by |
77mA
|
80mA
|
|
Max. audio (Internal SP) |
330mA
|
300mA
|
||
Antenna impedance |
50Ω
|
|||
Operating temperature range (Radio specification) |
–30°C to +60°C; –22°F to +140°F
|
|||
Dimensions (projections not included; W×H×D) |
52.2×111.8×24.5mm
2.06×4.4×0.96 in (With BP-279) |
|||
Weight (approx.) |
240g
8.47oz (With BP-279) |
Transmitter
IC-F1000S |
| ||
---|---|---|---|
RF output power |
5W, 2W, 1W
(Hi, L2, L1) |
|
|
Max. frequency deviation (W/N) |
± 5.0kHz/±2.5kHz
|
||
Spurious emissions |
70dB min.
|
||
Frequency stability |
±2.5ppm
|
||
Audio harmonic distortion (W/N) |
.0%/1.5% typ.
(AF 1kHz 40% deviation) |
||
FM Hum and Noise (W/N) |
46/40dB typ.
|
||
Ext. microphone connector |
3-conductor 2.5 (d) mm (1/10ʺ)/2.2kΩ
|
Receiver
IC-F1000S |
| ||
---|---|---|---|
Sensitivity (at 12dB SINAD) |
0.25μV typ.
|
||
Adjacent channel selectivity (W/N) |
76/53dB typ.
|
||
Spurious response rejection |
70dB min.
|
||
Intermodulation rejection |
74dB typ.
|
.
|
|
Hum and noise (W/N) |
51/45dB typ.
|
|
|
AF output power (at 5% distortion) | Internal SP |
800mW typ.(With 12Ω load)
|
|
External SP |
400mW typ.(With 8Ω load)
|
||
Ext. speaker connector |
2-conductor 3.5 (d) mm (1⁄8ʺ)/8Ω
|
Measurements made in accordance with TIA-603 (USA/EXP).
All stated specifications are subject to change without notice or obligation.
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
IC-F1000S | ||
---|---|---|
Number of option slots |
-
|
|
CTCSS/ DTCS | encoder |
Available
|
decoder |
Available
|
|
2-Tone | encoder |
Available
|
decoder |
Available
|
|
5-Tone | encoder |
Available
|
decoder |
Available
|
|
DTMF autodial |
Available
|
|
DTMF decoder |
-
|
|
Voice Scrambler | Inversion |
Available
|
Non-rolling |
-
|
|
Rolling |
-
|
|
APCO P25 digital |
-
|
|
6.25kHz digital |
-
|
|
MDC 1200 |
Available (Limited functions)
|
|
Motion function |
Available
|
|
Lone worker function |
Available
|
|
Man down function |
Available
|
|
Intrinsically safe |
-
|
|
Voice announcement |
Available
|
|
Audio compander |
Available
|
|
GPS receiver |
-
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 G Method, Proc. |
---|---|
Low Pressure Storage |
500.5 I
|
Low Pressure Operation |
500.5 II
|
High Temperature Storage |
501.5 I
|
High Temperature Operation |
501.5 II
|
Low Temperature Storage |
502.5 I
|
Low Temperature Operation |
502.5 II
|
Temperature Shock |
503.5 I-C
|
Solar Radiation |
505.5 I
|
Rain Blowing |
506.5 I
|
Rain Drip |
506.5 III
|
Humidity Induced |
507.5 II
|
Salt Fog |
509.5
|
Dust Blowing |
510.5 I
|
Immersion |
512.5 I
|
Vibration |
514.6 I
|
Shock Functional |
516.6 I
|
Shock Transit Drop |
516.6 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Ingress Protection Standard IC-F1000S | |
---|---|
Dust & Water |
IP67 (Dust-tight and waterproof protection)
|
