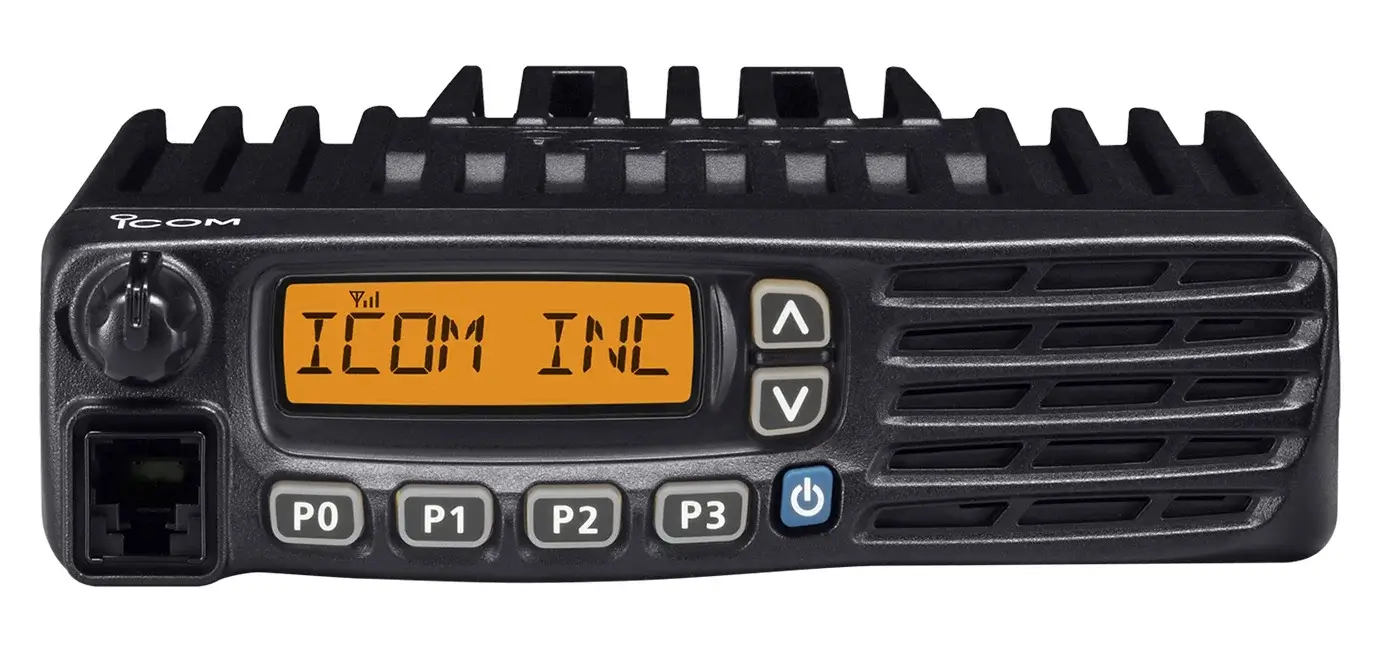

Icom IC-F6123D

Icom IC-F6123D

Icom IC-F6123D Digital Radio UHF 350 – 400 MHz   128 channel   Up to 8 zones lets you group together channels in logical built militry standard

128 channels with 8 zones

Ample 128 channel capacity allows most companies plenty of room to grow. Up to 8 zones lets you group together channels in logical fashion.

Icom IC-F6123D Built military rugged!

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810 F.

Compact hand microphone

Select from 5 levels of mic gain, for clearer transmission.

GPS receiver connection Icom IC-F6123D

With optional D-SUB 25-pin ACC cable OPC-2078, an external GPS receiver or PC can be connected.

Note：No Digital Modulation “IN” using accessory cables.

8-character LCD Icom IC-F6123D

An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller’s name, received message, etc.

Large programmable buttons

For easy access to often used functions, P0-P3 buttons are programmable to meet specific needs. Buttons and LCD display are backlit for night time opeartion.

Powerful, front-facing speaker

4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle’s cabin. Digital modulation adds distinct clarity to received voices.

IDAS™ digital mode operation Icom IC-F6123D

Icom IC-F6123D series provides NXDN™ CAI-based IDAS digital mode operation. It is also compatible with IDAS multi-site conventional and IDAS single-site trunking. The following IDAS features are programmable.

• PTT ID
• Individual/Talkgroup list (Max. 500)
• RAN (Radio Access Number)
• Status
• SDM (Short Data Message)
• Call alert
• Radio check (RX)
• Stun/kill/revive (RX)
• Remote monitor (RX)
• Emergency (No ACK)
• Digital voice scrambler
• GPS data (PC and software required to show received position data)

Icom IC-F6123D Built-in 2-Tone and 5-Tone (Analog mode)

2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.

MDC 1200 compatible (Analog mode)

The following MDC features are available with the built-in MDC signaling.

• PTT ID
• Radio check (RX)
• Emergency (No ACK)
• Stun/Revive (RX)
• 500 alias table (Max.)

Scan features

The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.

Lone worker function

When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.

Optional Active Noise Canceling Microphone

The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.

Watch the HM-211 performance video:

Icom IC-F6123D Other features

• CTCSS/DTCS encoder/decoder*
• BIIS PTT ID transmission*
• 8 DTMF autodial memories
• Microphone hanger action programmable
• Optional DTMF microphone (HM-152T)
• PC programmable
• Power-on password function
• Time out timer
• Talk around function
• Nuisance delete function*
• Forced narrow function*

Spesifications IC-F6123D

General
Frequency coverage			350-400MHz
Number of channels			128 channels (8 zones)
Channel spacing			6.25/12.5/25kHz
Type of emission			16K0F3E, 8K50F3E, 4K00F1E/F1D
Current drain (approx.)	Tx	50W/45W	11A
		25W	5A
	Rx	Stand-by	300mA
		Max. audio	1.2A
Dimensions (projections not included; W×H×D)	50W/45W version		150×40×167.5 mm; 5.91×1.57×6.59 in
	25W version		150×40×117.5 mm; 5.91×1.57×4.63 in
Weight	50W/45W version		1.1kg; 2.4lb
	25W version		0.8kg; 1.8lb
Transmitter
RF output power	50W/45W version		45W, 25W, 5W (Hi, L2, L1)
	25W version		25W, 10W, 2.5W (Hi, L2, L1)
Spurious emissions			70dB (min.)
Frequency stability			±1.0ppm
Audio harmonic distortion			3% typical 40% deviation
FM Hum and Noise			46/40dB typ. (Wide/Narrow)
Receiver
Sensitivity			0.25μV typ. (at 12dB SINAD) 0.18μV typ. (at 5% BER)
Adjacent channel selectivity			75/65dB typ. (W/N), 60dB typ. (digital)
Spurious response rejection			70dB min.
Intermodulation rejection			75dB typ. (W/N), 70dBμV emf type. (digital)
AF output power (at 5% distortion with an 4Ω load)			4W (typ.)

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 F Method, Proc.
Low Pressure Storage	500.4 I
Low Pressure Operation	500.4 II
High Temperature Storage	501.4 I
High Temperature Operation	501.4 II
Low Temperature Storage	502.4 I
Low Temperature Operation	502.4 II
Temperature Shock	503.4 I
Solar Radiation	505.4 I
Humidity Induced	507.4
Settling Dust	510.4 III
Vibration	514.5 I
Shock Functional	516.5 I
Shock Transit Drop	516.5 IV

Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.



 Standar Paket  Icom IC-F6123D

• Microphone HM-52
• Mikcrophone Hanger, Cable
• Mounting Bracket Kit
• DC Power Cable
• Manual Book

Aksesoris Opsional Icom IC-F6123D

Microphone

• Microphone Hand HM-148G
• Microphone Hand HM-148T
• Microphone Hand HM-152
• Microphone Hand HM-152T
• Microphone Active Noise Canceling HM-211
• Handsfree Microphone HM-249
• Desktop Microphone SM-26

Eskternal Speaker

• Eksternal Speaker SP-30
• Eksternal Speaker SP-35
• Eksternal Speaker SP-35L

Kabel Ekstesi

• Kabel Ekstensi OPC-2500

Adaptor Cable

• Adaptor Cable OPC-1939
• Adaptor Cable OPC-2078
