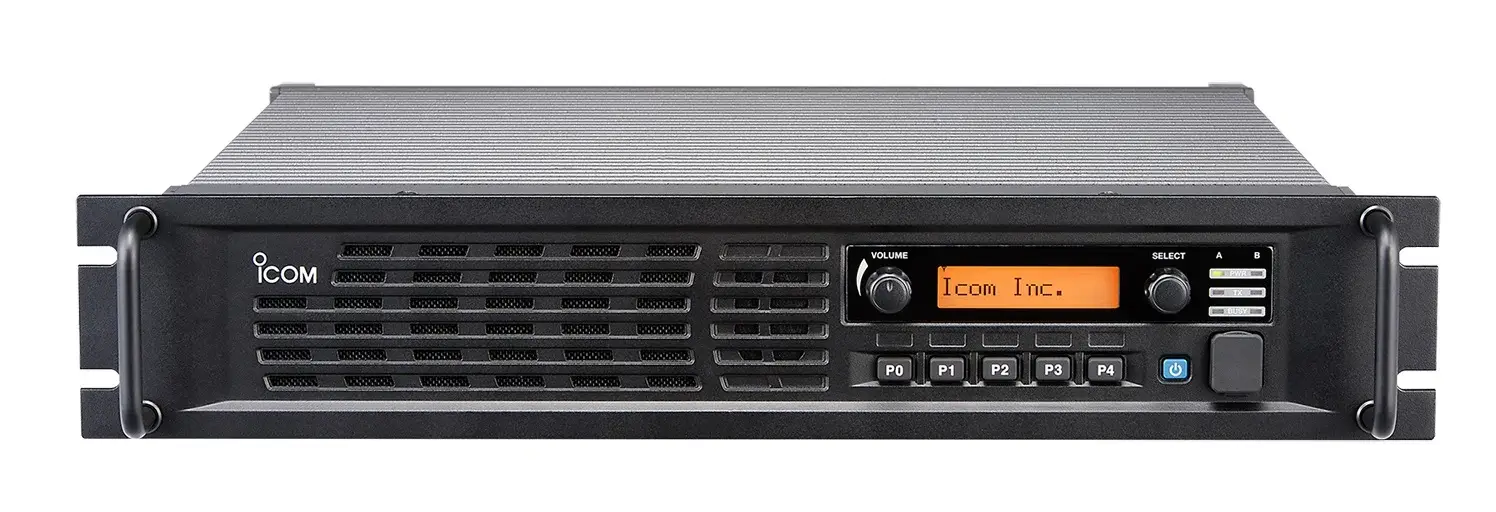

Icom IC-FR5200H

Icom
IC-FR5200H

Baru

Repeater ICOM IC-FR5200H Heavy Duty 50 Watt dapat bekerja pada mode analog dan digital IDAS conventional and NXDN™ Type-D trunking* mode.

Detail

Rp 25.000.000
termasuk pajak.

Fitur dan Spesifikasi Icom IC-FR5200H

Repeater Icom IC-FR5200H 50W Analog dan Digital

50W 100% Duty Cycle Operation

Employing a high performance power amplifier, together with the solid heatsink built into the chassis, the IC-FR5200H series provides a reliable 100% duty cycle operation at 50W output.

IDAS, Analog FM and Mixed Mode

The IC-FR5200H series is compatible with both analog FM mode and IDAS conventional and NXDN™ Type-D trunking* mode. Program digital and/or analog FM modes per channel. The mixed mode operation allows you to receive both analog FM and IDAS conventional modes and to transmit either mode depending on the received signal.

* Type-D Trunking and network controller functions are not available, depending on version.

32 Channel Capacity and 5 Programmable Buttons

The 12-digit dot-matrix display, 5 programmable buttons, 32 memory channels and internal speaker allow you to use the repeater as a simple base station or to check repeater activity. LEDs on the front panel show channel conditions.

Built-in Type-D Trunking and Network Controller*

The Type-D multi-site trunking/conventional functions are integrated in the repeater. The IP network capability extends your communication coverage and allows you to remotely control the repeater settings.

* Type-D Trunking and network controller functions are not available, depending on version.

D-SUB 25-pin Accessory Connector

Repeater Icom IC-FR5200H series has a programmable D-SUB 25-pin accessory connector for connecting external remote control devices. Also, modulation/demodulation signals can be input/output from the D-SUB connector.

Multiple CTCSS, DTCS Tone and RAN Code Decode

Repeater Icom IC-FR5200H series decodes multiple CTCSS and DTCS as well as digital RAN (Radio Access Number) codes on a per channel basis (up to 16 tones/codes) and downlinks the received signal with a specified tone/code. This function is useful for sharing a channel with multiple groups.

Other features

  • CW ID transmission
  • ±0.5ppm high frequency stability (Digital mode)
  • 2U low profile for 19-inch rack mount
  • Digital voice scrambler provides 15-bit key (about 32,000 codes)
  • Built-in inversion voice scrambler (Analog mode)
  • Built-in audio compander (Analog mode)
  • PTT priority setting (Local Mic., external PTT or repeater operation)
  • 5-Tone and DTMF encoder/decoder (Analog mode)
  • Normal and priority scan
  • Convenient key assign stickers supplied
  • Beat cancel capability
  • Low voltage alert (Analog mode)

Repeater ICOM IC-FR5200H Rear panel view

rear panel view

  • IDAS and IDAS logo are trademarks of Icom Incorporated.
  • All other trademarks are the properties of their respective holders.

General



IC-FR5200H
(NXDN Version)

IC-FR6200H
(NXDN Version)

Frequency coverage 136–174MHz 400–470, 450–512,
450–520, 350–400* MHz
(* Non-FCC)
Number of channels Max. 32 channels
Channel spacing 6.25/12.5/25kHz*
Type of emission 16K0F3E, 11K0F3E/F7E/F7D/F7W,
4K00F1E/F1D/F3E
Frequency stability ±0.5ppm
Antenna impedance 50Ω (Type-N × 2)
Operating temperature range −30°C to +60°C; −22°F to +140°F
Power supply voltage 13.6V DC
Current drain (at 13.6V DC)TX 50W 11A
RX Max. audio 1.2A
Stand-by 550mA/450mA typ. (with/without UC-FR5000 at LCD backlight OFF)
Dimensions (W×H×D) 483×88×360 mm ; 19.02×3.46×14.17 in
Weight 10kg ; 22lb (approx.)
* 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.Ask your dealer if you need 25kHz bandwidth.

Transmitter



IC-FR5200H
(NXDN Version)

IC-FR6200H
(NXDN Version)

Output power
            100% duty cycle		 50W (adjustable to 5W)
50W (at 20–35°C, 24 hours)
Max. frequency deviation ±5.0kHz/±2.5kHz (W/N)
Spurious emissions 80dB typ.
FM hum and noise 52/49dB typ. (W/N) 50/45dB typ. (W/N)
Audio harmonic distortion 1% typ. (40% deviation)
Digital FSK error 5% Max.
Microphone impedance 600Ω (8-pin modular)

Receiver



IC-FR5200H
(NXDN Version)

IC-FR6200H
(NXDN Version)

Sensitivity12dB SINAD 0.30μV typ. 0.25μV typ.
5% BER 0.25μV typ. 0.25μV typ.
Adjacent channel selectivity 85/56dB typ. (W/N)
68dB typ. (Digital)		 78/56dB typ. (W/N)
63dB typ. (Digital)
Spurious response 80dB (W/N)
75dBμV emf (Digital)		 80dB (W/N)
80dBμV emf (Digital)
Intermodulation rejection 78dB typ. (W/N)
75dBμV typ. emf (Digital)		 78dB typ. (W/N)
75dBμV typ. emf (Digital)
Hum and noise ratio 52/50/66dB typ. (W/N/D) 50/45/55dB typ. (W/N/D)
Audio output power 4.0W typ. at 5% distortion with a 4Ω load
External speaker connector 2-conductor 3.5 (d) mm (1/8″)/4Ω

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

StandardMIL-810 G
Method, Proc.
Low Temperature Storage
500.5 I
Low Temperature Operation
500.5 II
High Temperature Storage
501.5 I
High Temperature Operation
501.5 II
Low Temperature Storage
502.5 I
Low Temperature Operation
502.5 II
Temperature Shock
503.5 I-C
Humidity
507.5 II
Vibration
514.6 I
Shock Functional
516.6 I

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

All stated specifications are subject to change without notice or obligation.

Optional :

HAND MICROPHONE

HM-152

HM-152



DESKTOP MICROPHONE ICOM IC-FR5200H

SM-26SM-26

EXTERNAL SPEAKERS ICOM IC-FR5200H

SP-35SP-35 2m cable SP-35LSP-35L 6m cable
