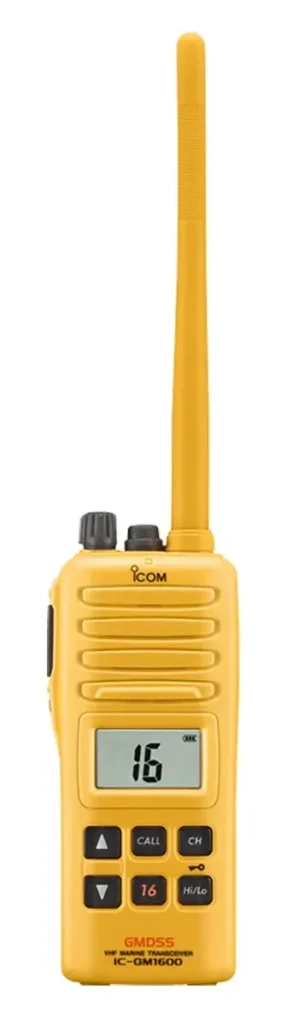

ICOM IC-GM1600E GMDSS Portabel untuk Survival Craft
Memenuhi persyaratan lingkungan yang ketat untuk radio marine
Icom IC- GM1600 memenuhi persyaratan suhu, thermal shock, getaran dan tahan air (dari 1 m). Setelah melewati tes-tes lingkungan, Icom IC-GM1600 menopang 1m konstruksi tahan air kedalaman tertentu dengan resolusi IMO A.809 (19), A.694 (17) dan IEC 61097-12.
Baterai kapasitas tinggi Lithium opsional, BP-234, memiliki karakteristik suhu rendah unggul
Menyediakan lebih dari 8 jam waktu operasi bahkan pada -20 ° C
(Siklus Duty: Tx: Rx: Stand-by = 6: 6: 48)
Keypad besar dengan aksi tombol positif
LCD layar lebar sudut pandang
fitur lain
- Salah satu sentuhan akses ke Channel 16 dan channel panggilan
- Body berwarna kuning sangat terlihat
- LED indikator sangat terang di bagian atas panel
- Opsional VOX headset untuk on-board penggunaan
ICOM IC-GM1600E Specifications
| General |
|---|
| Frequency Range (Tx/Rx) |
156.300–156.875MHz |
| Mode |
FM (16K0G3E) |
| Power supply requirement |
7.5/7.2V DC nominal |
|
Current drain
(at 7.5/7.2V DC)
|
| Tx |
2W output |
1.0A |
| |
0.7A |
| Rx |
200mA |
|
|
Operating temperature range
USA Version
General Version
|
-20°C to °60°C; -4°F to +140°F
-20°C to +55°C
|
| Antenna Impedance |
50O (SMA fixed type) |
|
Dimensions (W×H×D)
(Projections not included)
|
65 × 145 × 44 mm;
29/16 × 523/32 (H) × 123/32 in
|
| Weight (approx.) |
385g; 13.6oz (with BP-234) |
| Transmitter |
|---|
| Output power |
2W/1W (Hi/Low) |
| Max. frequency deviation |
±5.0kHz |
|
Frequency Error
USA Version
General Version
|
±5.0ppm
±1.5kHz
|
|
Spurious emissions
USA Version
General Version
|
-70dBc typical
0.25µW (30MHz–1GHz)
1.00µW (1GHz–2GHz)
|
| Adjacent channel power |
70dB |
| FM Hum and noise ratio |
40dB |
| Audio harmonic distortion |
Less than 10% (at 60% mod.) |
| Receiver |
|---|
|
Sensitivity
USA Version
General Version
|
0.25µV (at 12dB SINAD)
-2dBµ typ. (emf: 20dB SINAD)
|
|
Squelch sensitivity
USA Version
General Version
|
0.35µV typ. (at threshold)
0dBµ typ. (emf: at threshold)
|
|
Adjacent Channel Selectivity
|
70dB
|
|
Spurious response
|
70dB
|
|
Intermodulation Rejection
USA Version
General Version
|
70dB typ.
68db
|
| Hum and noise ratio |
40dB |
|
Audio output power
USA Version
General Version
|
0.35W typ.
0.2W
|
To comply with the requirements of GMDSS survival craft radio, the primary battery pack, BP-234, is required.
Measurement made in accordance with TIA/EIA-603 and FCC part 80.271 for USA version. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-234
- Battery pack, BP-224
- Battery charger, BC-158
- AC adapter, BC-147A/E*
- Belt clip, MB-103Y
- Antenna, FA-S61V
- Neck strap
* Depending on version
