VEV-V1000


VEV-V1000

Baru

DISCONTINUED

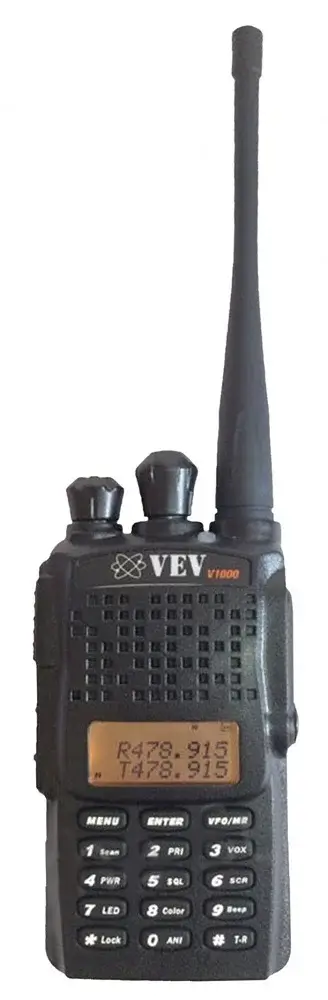

Handy Talky Vev-V1000 UHF 350-400 Mhz 128 Memory Channels 5Watt UHF Outputt Power.

Detail

Fitur dan Spesifikasi VEV-V1000

Description

Section 128 memory channels,
DTMF codec, double-dot matrix display screen cloth,
2-tone / 5-tone, VHF 5W/UHF 4W output power,
Narrow band width available (25kHZ/12.5kHz),
ANI identification Code,
VOX launch voice features,
Multifunctional Scan,
Scrambler device so close,
adjustable three-color screen background lights,
Emergency call button,
Both English and Chinese programming software,


General

(Frequency Range)
136.000 ~ 174.000 MHz

400.000 ~ 470.000 MHz
(Number Of Channel)
128
(Operation Temperature)
-20℃ ~ +50℃
(Operating Voltage)
DC7.2V
(Antenna Impedance)
50Ω
  (Operation Mode)
(Weight)
220g
(Size)
100×55×32mm
(Transmitter)
(Carrier Frequency)
±2.5ppm
(Output Power)
≤ 0.5W
(Modulation Limited)
≤ 5KHz
(Modulation Character)
+3dB ~ -3dB
(Adjacent Channel Power)
≥ 65dB
(Spurious Radiation)
≤ 7.5μW
(Occupide Bandwidth)
≤ 16KHz
(Receiver)
(RF Sensiyivity)
< 0.28μV
(Audio Distortion)
≤ 3%
(Audio Response)
+2dB ~ -10dB
(Modulatioin Band)
≥ -8dB
(Adjacent Channel Selectivity)
≥ 55dB
(Intermodulation Rejection)
≥ 55dB
(Spurious Response)
≥ 55dB
(Blocking)
≥ 85dB
