Diamond SP3000

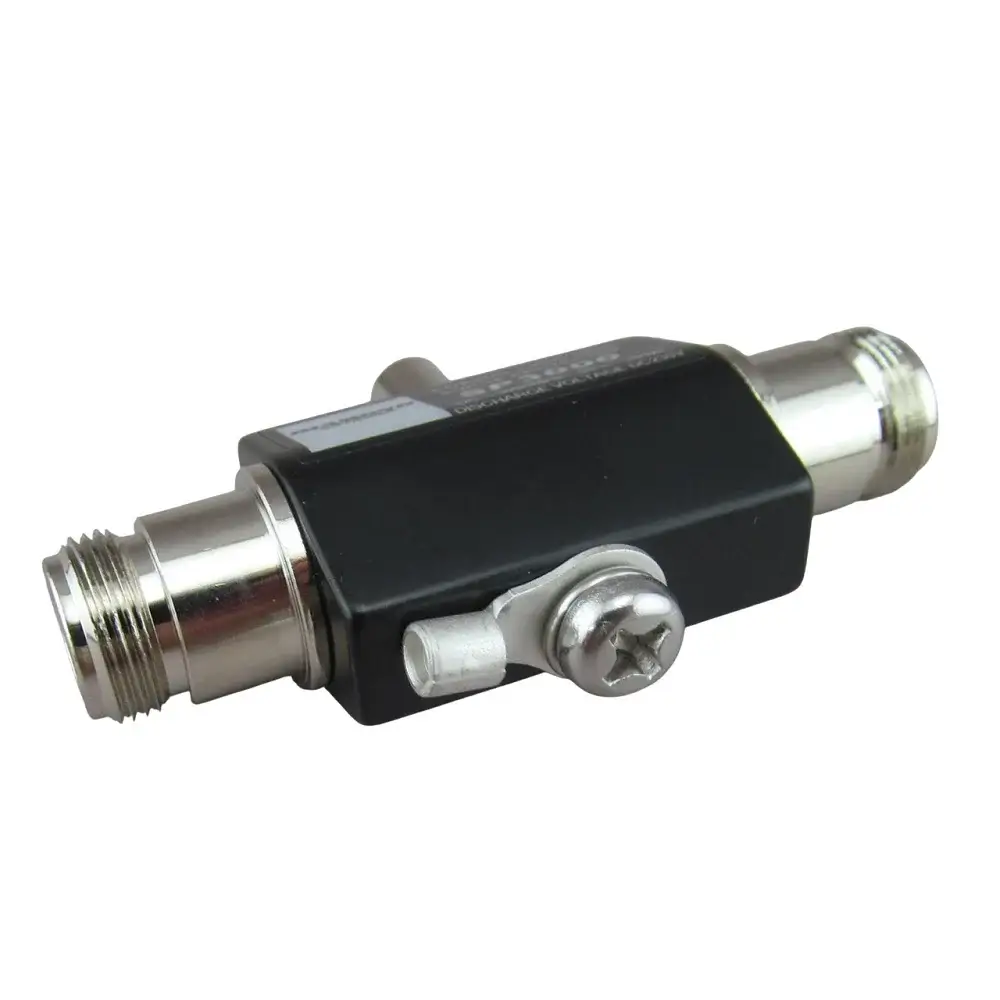

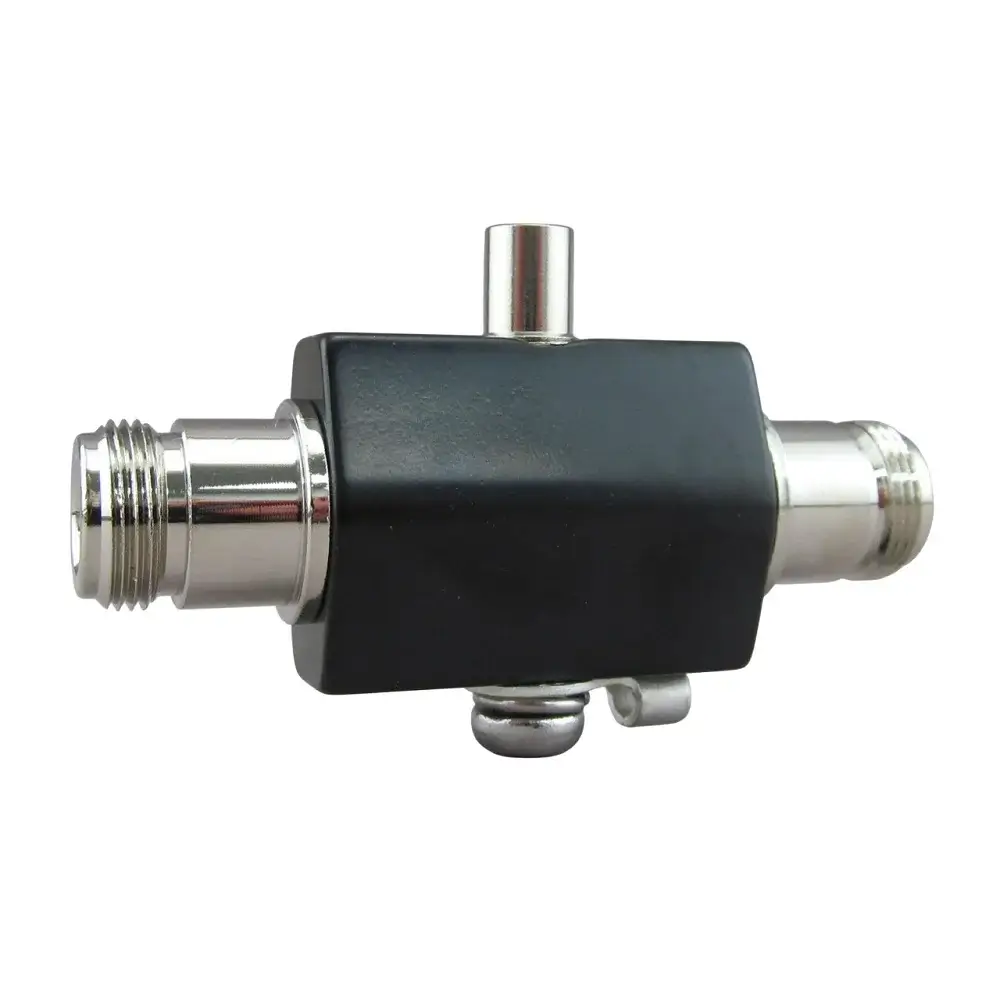

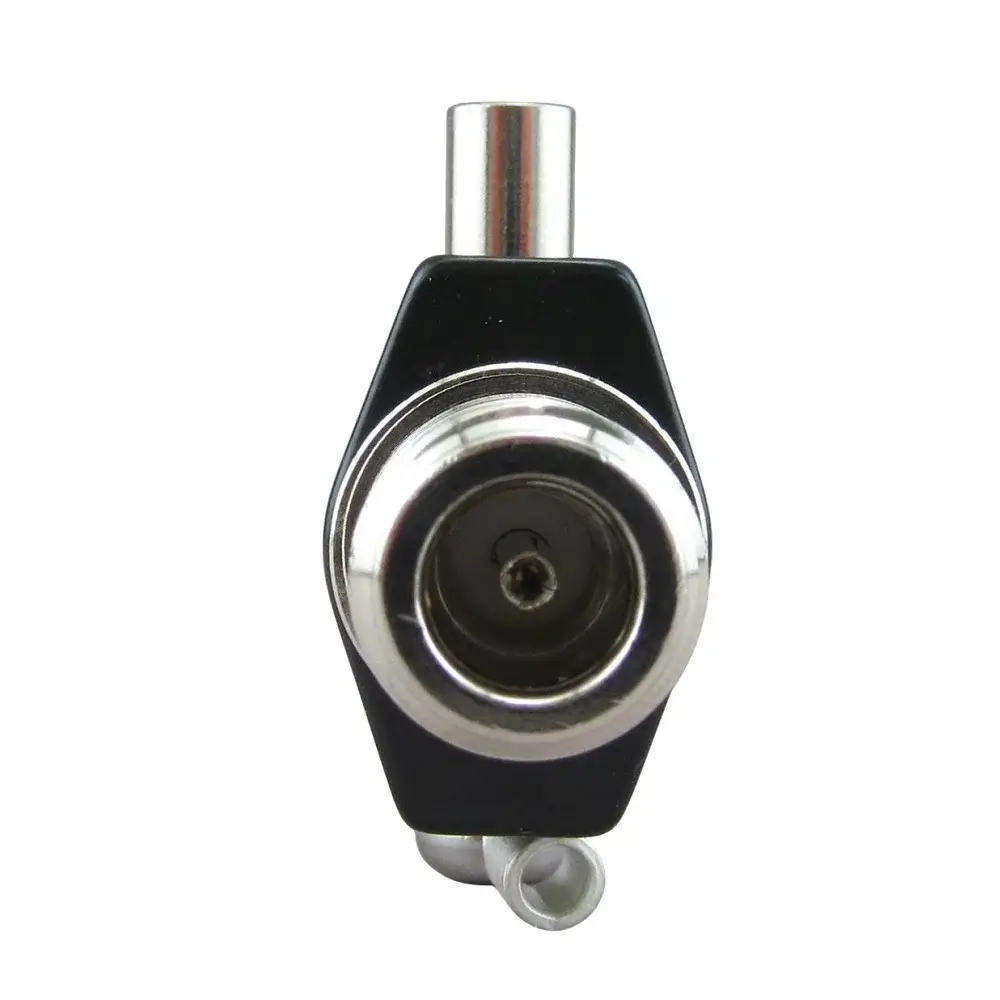

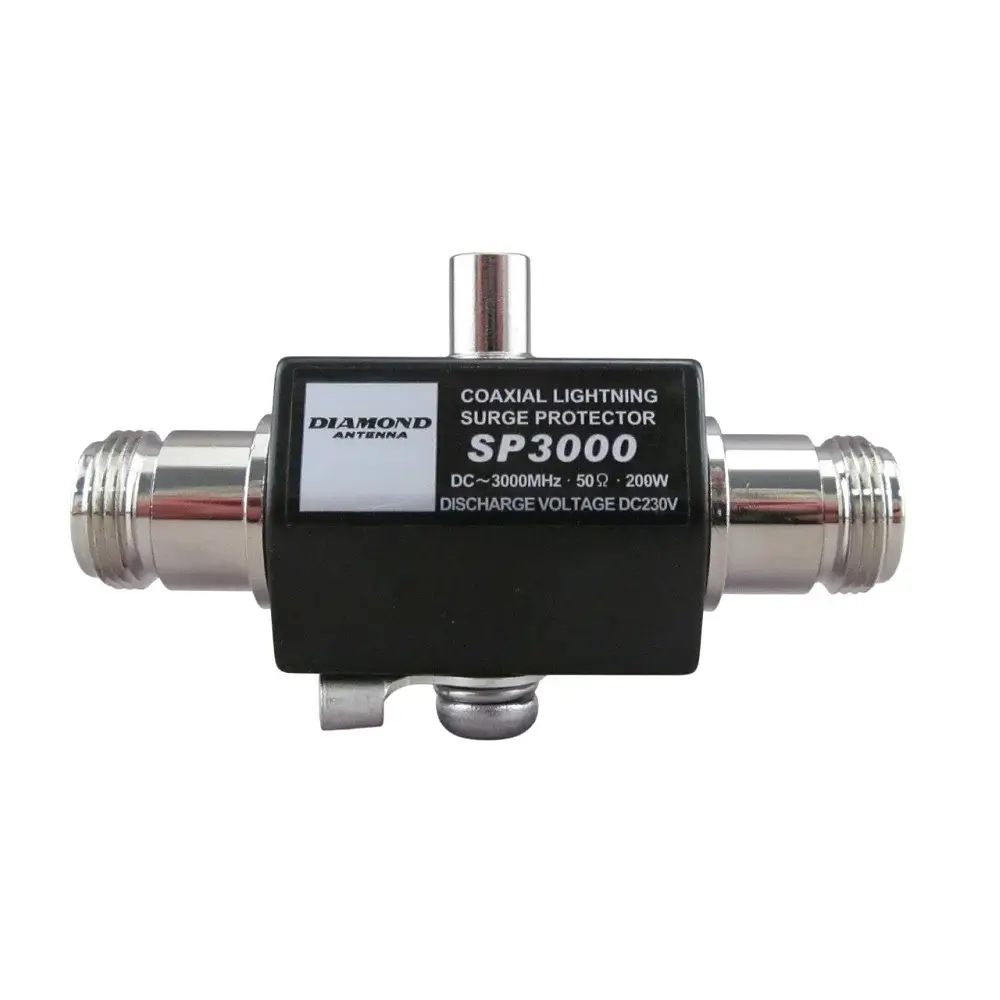

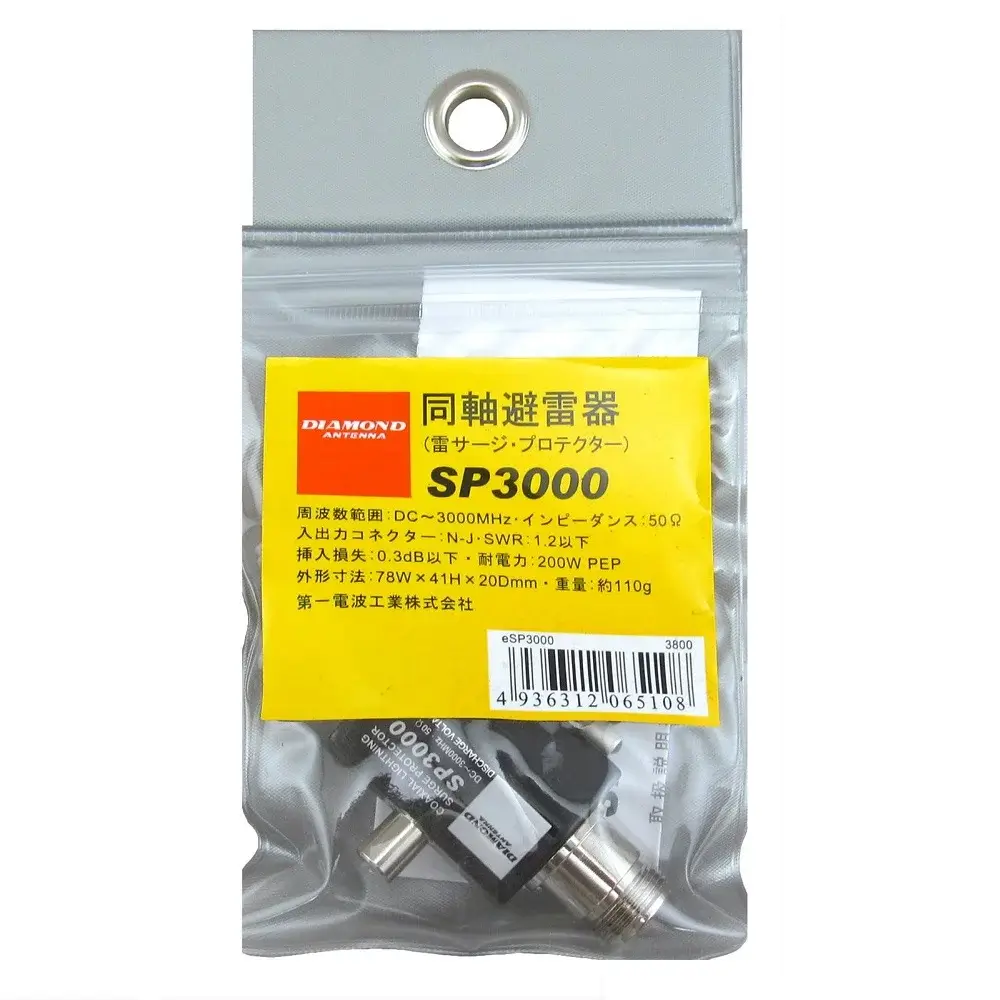

Diamond SP3000 Lightning Arrester Coaxial Lightning Surge Protector
| Specifications | |
| Frequency: | DC – 3,000 MHz |
| SWR: | less than 1.1 |
| Insertion Loss: | less than 0.2 dB |
| Max Power Rating: | 200w PEP |
| Connector: | Type N female – Type N female |
| Impulse Wave Discharge Voltage: | 1000v |
| Impulse Wave Discharge Capacity: | 6000A |
| Impulse Wave Retention Discharge Capacity: | DC230v ± 20% |
| Insulating Resistance DC100v: | Over 10,000M ohms |
| Weight: | 0.25 lbs. / 113g |
| Dimensions: | 3.1″x1.6″x0.8″ / 78Wx41Hx20D mm |
