COMMSCOPE 78EZNF

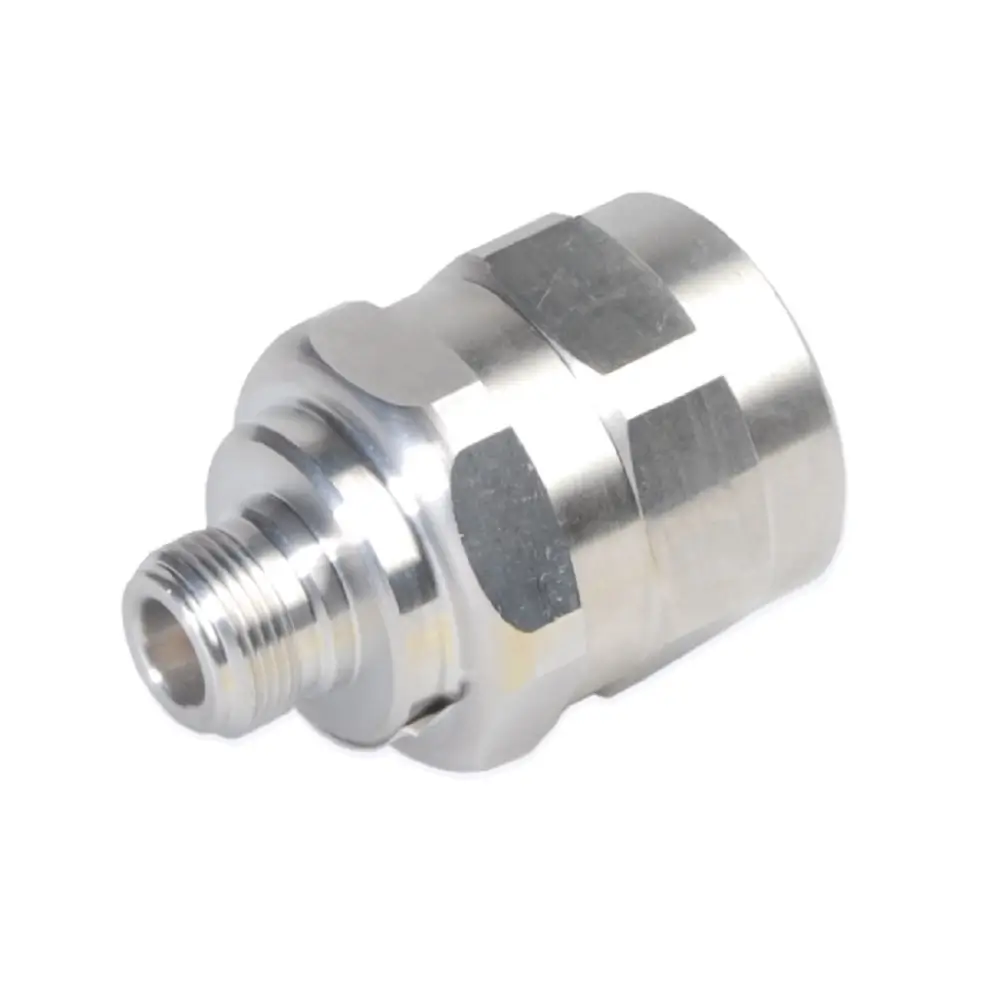

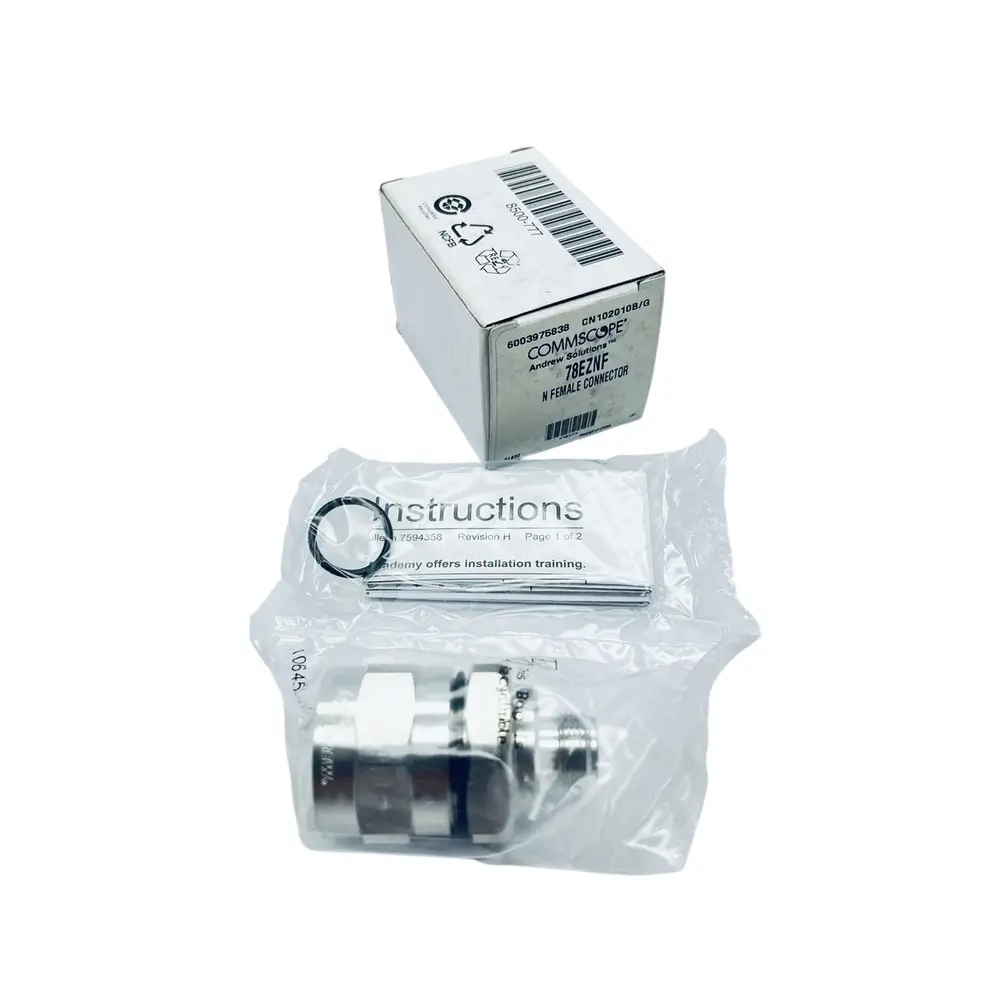

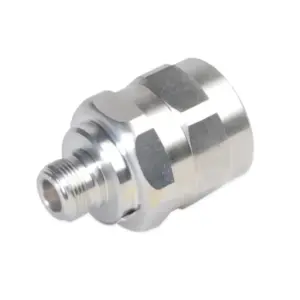

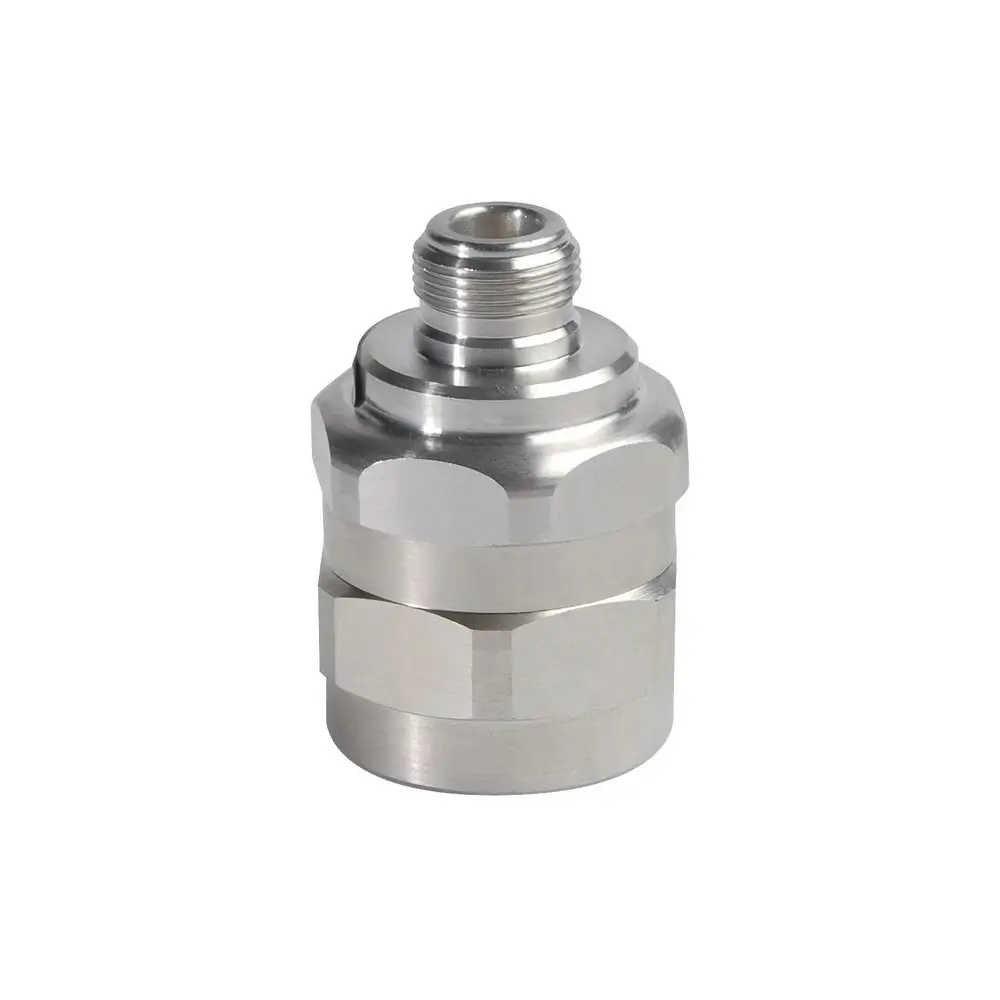

Konektor Andrew Commscope 78EZNF N Female untuk kabel heliax AVA5, COMMSCOPE 78EZNF adalah Connector N Female yang diproduksi oleh CommScope. Konektor ini dirancang khusus untuk digunakan dengan kabel heliax tipe AVA5.
Perangkat Konektor 78EZNF ini menggunakan desain EZfit®, yang memudahkan pemasangan dan pemutusan konektivitas dengan kabel heliax AVA5. Konektor ini memiliki fitur N Female, yang berarti dapat terhubung dengan konektor N Male yang sesuai.
Konektor 78EZNF memiliki kualitas konstruksi yang tinggi dan dirancang untuk memberikan koneksi yang handal dan presisi. Dengan menggunakan konektor ini, Anda dapat memastikan transmisi sinyal yang stabil dan kualitas yang optimal dalam sistem komunikasi Anda.
Konektor COMMSCOPE 78EZNF adalah pilihan yang ideal untuk menghubungkan kabel heliax AVA5 ke perangkat atau antena yang menggunakan konektor N Female.
Spesifikasi
| Product Classification | |
|---|---|
| Product Type | Wireless and radiating connector |
| Product Brand | EZfit® |
| Product Series | AVA5-50 | AVA5-50FX | AVA5RK-50 |
| Ordering Note | CommScope® non-standard product |
| General Specifications | |
|---|---|
| Body Style | Straight |
| Cable Family | AVA5-50 | AVA5-50FX | FXL-780 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
| Dimensions | |
|---|---|
| Length | 52.07 mm | 2.050 in |
| Diameter | 37.08 mm | 1.460 in |
| Nominal Size | 7/8 in |
| Electrical Specifications | |
|---|---|
| 3rd Order IMD at Frequency | -116 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 5000 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Return Loss/VSWR | |
|---|---|
| Frequency Band | VSWR |
| 50–1000 MHz | 1.020 |
| 1000–1900 MHz | 1.025 |
| 1900–2200 MHz | 1.041 |
| 2200–2700 MHz | 1.058 |
| 2700–3600 MHz | 1.065 |
| 3600–5000 MHz | 1.106 |
| Mechanical Specifications | |
|---|---|
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 1334.47 N | 300.000 lbf |
| Connector Retention Torque | 8.14 N-m | 72.001 in lb |
| Insertion Force | 66.72 N | 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
| Environmental Specifications | |
|---|---|
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A- |
